Entity properties

Entity properties enable apps to add key-value stores to Jira entities, such as issues or projects. You can also add app properties to the Connect app itself. This page provides an overview and examples of how entity properties and app properties work:

• Entity properties
• App properties

Jira entity properties

Entity properties let you store data on the following entities:

Jira Cloud platform

• Comments
• Dashboard items
• Issues
• Issue types
• Projects
• Users
• Workflow transitions

You can use app properties to store data on your Connect app.

Jira Software

• Boards
• Sprints

Limitations of entity properties

Remember these limitations when using entity properties:

• Entity properties can be modified by all users that have permission to edit the entity. For example, any user who can update an issue can also update an entity property stored on that issue.
• Entity properties can be modified by all apps in the system and exist in a global namespace. For this reason, we recommend that you ensure the entity property keys for your app are unique. For example, you could prefix your keys with the app name or app key (but not any private token). You should never store private or personal data in entity properties.
• Entity properties are not sandboxed on a per-user basis. This means that the same entity property can be edited by two users. There is no mechanism to handle concurrent edits by users to the one property. A property contains the data that was most recently saved.
• The scopes that your app requires to modify entity properties are different depending on the type of entity property that you wish to modify. For example, to delete an issue entity property you only need DELETE scope. However, to delete a project entity property you require PROJECT_ADMIN scope.
• The value stored in each property must be in valid JSON format. (Valid JSON format is defined as anything that JSON.parse can read).
• The maximum length of an entity property key is 255 bytes.
• The maximum length of an entity property value is 32768 bytes.
• Apps can store an unlimited number of entity properties against an entity.

Storing data against an entity with REST

The cURL examples below show you how to store data against and retrieve data from an issue using REST. For information how to manipulate properties of other Jira entities, such as projects, please see the Jira REST API documentation.

To modify, add, or remove the properties, the user executing the request must have permission to edit the entity. For example, to add new property to issue ENPR-4, the user needs permission to edit the issue. To retrieve a property, the user must have read permissions for the issue.

Example 1: Storing data

The simple example below will store the JSON object {"content":"Test if works on Jira Cloud", "completed" : 1} against issue ENPR-4 with the key tasks.

1
2
curl -X PUT -H "Content-type: application/json" https://jira-instance1.net/rest/api/2/issue/`ENPR-4`/properties/tasks -d '{"content":"Test if works on Jira Cloud", "completed" : 1}'

The key has a maximum length of 255 characters.

The value must be a valid JSON Object and has a maximum size of 32 KB.

Example 2: Retrieving data

The example below shows how to get all of the properties stored against an issue.

1
2
curl -X GET https://jira-instance1.net/rest/api/2/issue/ENPR-4/properties/

The response from server will contain keys and URLs of all properties of the issue ENPR-4.

1
2
{"keys":[{"self":"https://jira-instance1.net/rest/api/2/issue/ENPR-4/properties/tasks","key":"tasks"}]}

Example 3: Removing a property

The example below shows how to remove a property from an issue.

1
2
curl -X DELETE https://jira-instance1.net/rest/api/2/issue/ENPR-4/properties/tasks

Making searchable entity properties

Atlassian Connect can provide a module descriptor, making the issue properties searchable using JQL. For example, to index the data from the first example, apps provide the following module descriptors:

1
2
"jiraEntityProperties": [{
    "key": "jira-issue-tasklist-indexing",
    "name": {
        "value" :"Tasks index",
        "i18n": "tasks.index"
    },
    "entityType": "issue",
    "keyConfigurations": [{
        "propertyKey" : "tasks",
        "extractions" : [{
            "objectName" : "content",
            "type" : "text"
        }]
    }]
}]

The descriptor above will make Jira index the object "content" of the issue property "tasks" as a text. The available index data types are:

• number: indexed as a number and allows for range ordering and searching on this field.
• text: tokenized before indexing and allows for searching for particular words.
• string: indexed as-is and allows for searching for the exact phrase only.
• date: indexed as a date and allows for date range searching and ordering. The expected date format is [YYYY]-[MM]-[DD]. The expected date time format is [YYYY]-[MM]-[DD]T[hh]:[mm]:[ss] with an offset from UTC of: +/-[hh]:[mm] or Z for no offset. For reference, please see ISO_8601 standard.

The indexed data is available for a JQL search. The JQL query...

1
2
issue.property[tasks].completed = 1 AND
issue.property[tasks].content ~ "works"

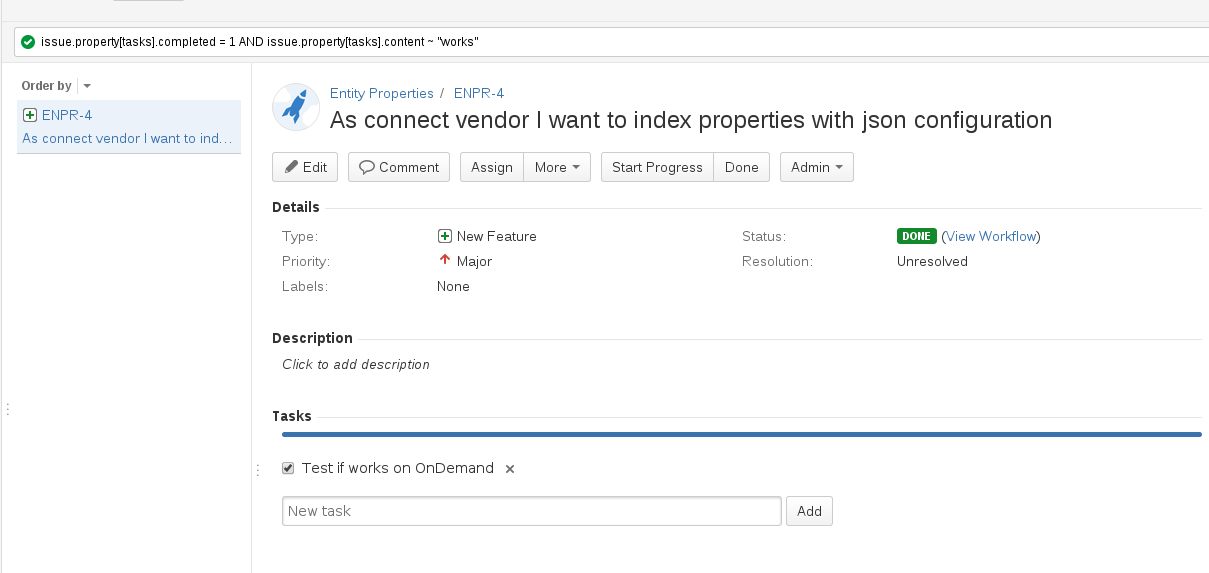

...result is shown in this screenshot.

The Forge module jira:entityProperty can also be used to index entity property values and make them available to search using JQL.

1
2
modules:
  jira:entityProperty:
    - key: "jira-issue-tasklist-indexing"
      entityType: "issue"
      propertyKey: tasks
      values:
        - path: content
          type: text
        - path: completed
          type: number

See the Jira entity property module documentation for more information.

Conditions on entity properties

Entity properties can be referenced in the following conditions to decide whether or not to show a web fragment:

• entity_property_exists
• entity_property_equal_to
• entity_property_equal_to_context
• entity_property_contains_any
• entity_property_contains_all
• entity_property_contains_context
• entity_property_contains_any_user_group
• entity_property_contains_any_user_role

You can use the entity_property_equal_to condition to decide whether or not to show a web fragment based on the data in an entity property. For example, if we had an issue entity property with the key myExtraProperties and a JSON value that has the field isSpecial set to true (JSON boolean) then we could write the following condition:

1
2
{
  "condition": "entity_property_equal_to",
  "params": {
      "entity": "issue",
      "propertyKey": "myExtraProperties",
      "objectName": "isSpecial",
      "value": "true"
  }
}

It is important to note that the params.value field currently expects a string. Therefore you will need to convert your JSON into a string before you can compare it for equality. For example, to check that the JSON string "special" was stored in myExtraProperties then the condition must be written like so:

1
2
{
  "condition": "entity_property_equal_to",
  "params": {
      "entity": "issue",
      "propertyKey": "myExtraProperties",
      "objectName": "isSpecial",
      "value": "\"special\""
  }
}

There is currently no way to get a nested value out of a JSON object stored in an entity property for the purposes of comparison in a condition.

App properties

App properties are entity properties stored against your app itself. In this case the app is considered to be the storage container. However, app properties are still unique to each host application: the same app installed on two different host applications will not share the same app properties.

Limitations of app properties

App properties have the following limitations:

• The properties for an app are sandboxed to the app. Properties cannot be shared or read by other apps. However, authenticated users can read and edit app properties through the REST APIs. For this reason, do not store private or personal data in app properties.
• Each app can create a maximum of 100 properties, each property value cannot be more than 32KB in size.
• The value stored in each property must be in valid JSON format. (Valid JSON format is defined as anything that JSON.parse can read).
• Requests via AP.request to store and receive app properties can only be made via a logged-in user.
• There is no mechanism to handle concurrent edits by two users to the one app property. Whomever saves data last will win.

Supported operations

The following operations may be performed to manipulate app properties:

• Get app property keys
• Get app property
• Create or update app property
• Delete app property

Examples

App properties can be set using Create or update app property:

1
2
curl --request PUT \
--user 'email@example.com:<api_token>' \
--header "Accept: application/json" \
--header "Content-Type: application/json" \
--data '{"string":"string-value","number":5}' \
 'https://your-domain.atlassian.net/rest/atlassian-connect/1/addons/{addonKey}/properties/{propertyKey}'

Use Get app property to get the value of the property we just set:

1
2
curl --request GET \
--user 'email@example.com:<api_token>' \
--header "Accept: application/json" \
 'https://your-domain.atlassian.net/rest/atlassian-connect/1/addons/{addonKey}/properties/{propertyKey}'

Here is an example that will show a pop-up with a JSON property named my-property-key for an app with the key my-app-key.

1
2
AP.request({
    url: '/rest/atlassian-connect/1/addons/my-app-key/properties/my-property-key?jsonValue=true',
    success: function(response) {
        // Convert the string response to JSON
        response = JSON.parse(response);
        alert(response);
    },
    error: function(response) {
        console.log("Error loading API (" + uri + ")");
        console.log(arguments);
    },
    contentType: "application/json"
});

Apart from using AP.request, the same resources are accessible via a request signed with JWT.

Conditions based on app properties

App properties can be referenced in the entity_property_equal_to, entity_property_contains_any, and entity_property_contains_all conditions to decide whether or not to show a web fragment. For example, the following is a valid condition on the app property activated:

1
2
{
  "condition": "entity_property_equal_to",
  "params": {
      "entity": "addon",
      "propertyKey": "activated",
      "objectName": "for-users"
      "value": "true"
  }
}

The structure of the JSON value of the activated app property might look like this:

1
2
{
  "for-anonymous": false,
  "for-users": true,
  "for-admins": true,
}

As for-users is set to true, the condition allows the web fragment to show.

Here is an example of a condition that requires the browser user to be in at least one specified group:

1
2
{
  "condition": "addon_property_contains_any_user_group",
  "params": {
      "propertyKey": "myListOfGroups"
  }
}

addon_property_contains_any_user_role is very similar to addon_property_contains_any_user_group, but references project roles in Jira.

Reference

See Entity Property reference
