Writing a mixed Space screen

Applicable:

This tutorial applies to Confluence 5.0.

Level of experience:

This is an advanced tutorial. You need to understand the Confluence Actions, templates and decorators.

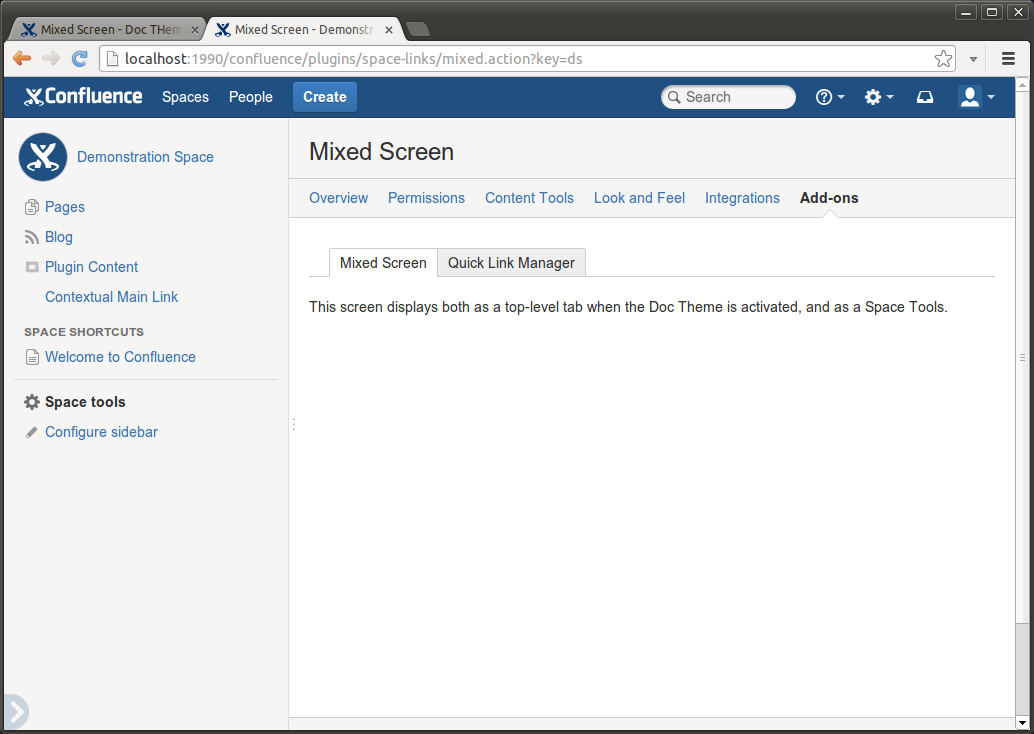

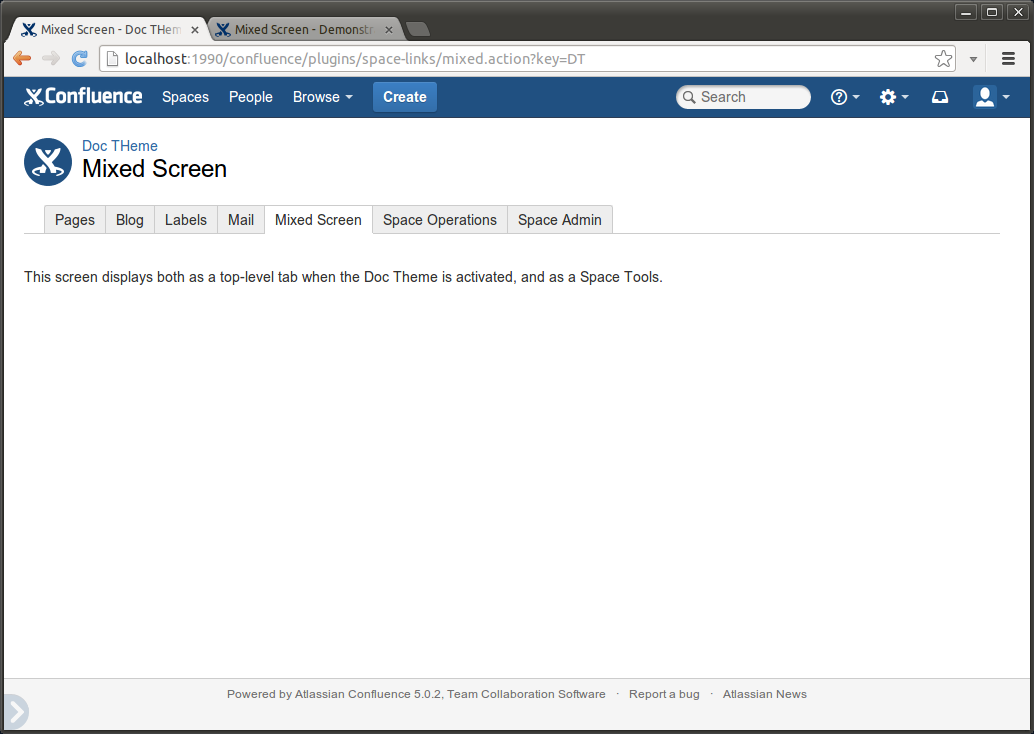

This tutorial will explain how to display a Space screen in both situations:

Doc Theme Default Theme in Confluence 5.0
Displayed as a top-level Space tab Displayed as a Space Tool

We call it a mixed screen because:

  • In the Doc Theme, top-level tabs should display types of content, like Pages, Blog or Mail.
  • If you want to display settings for your add-on, they should appear under the Space Admin tab.

However we understand it makes sense for add-on developers to mix those two patterns.

Preparation

The example below is available on the following BitBucket repository:

https://bitbucket.org/atlassian_tutorial/space-plugin-example

Web-items

As for the two previous tutorials, one web-item is required for each place:

atlassian-plugin.xml
    <!-- Mixed Screen: Top-level Space tab in Doc Theme -->
    <web-item key="space-tab-link-for-mixed-screen" name="Top-level tab for the mixed screen" section="system.space" weight="50">
        <label key="mixed.screen.title"/>
        <link id="mixed-screen-tab-id">/plugins/${project.artifactId}/mixed.action?key=$generalUtil.urlEncode($helper.spaceKey)</link>
        <condition class="com.atlassian.confluence.plugin.descriptor.web.conditions.SpaceSidebarCondition" invert="true"/>
    </web-item>
    <!-- Mixed Screen: Space Tools tab -->
    <web-item key="space-tools-link-for-mixed-screen" name="Space Tools tab for the mixed screen" section="system.space.tools/addons" weight="50">
        <label key="mixed.screen.title"/>
        <link id="mixed-screen-space-tools-id">/plugins/${project.artifactId}/mixed.action?key=$generalUtil.urlEncode($helper.spaceKey)</link>
    </web-item>

Action

An XWork definition will allow you to display the action:

atlassian-plugin.xml
    <xwork name="Example Actions" key="example-actions">
        <description>Examples of actions</description>
        <package name="space-links-xwork-package" extends="default" namespace="/plugins/${project.artifactId}">
            <default-interceptor-ref name="validatingStack"/>
            <action name="mixed" class="com.atlassian.examples.MixedAction" method="doDefault">
                <result name="input" type="velocity">/templates/mixed-space-screen.vm</result>
            </action>
        </package>
    </xwork>
MixedAction.java
public class MixedAction extends SpaceAdminAction
{
    @Override
    public String doDefault()
    {
        return INPUT;
    }
}

Use two decorators

mixed-space-screen.vm
<html>
    <head>
        <title>$action.getText("mixed.screen.title")</title>
        <meta name="decorator" content="main"/>
    </head>

        #applyDecorator("root")
            #decoratorParam("helper" $action.helper)
            <!-- context is the web-item key. It must start with "space-" to display the space tabs. -->
            #decoratorParam("context" "space-tab-link-for-mixed-screen")
            #applyDecorator ("root")
                #decoratorParam ("context" "spacetoolspanel")
                #decoratorParam("helper" $action.helper)
                #decoratorParam("selectedSpaceToolsWebItem" "space-tools-link-for-mixed-screen")
                <body>
                    <p>This screen displays both as a top-level tab when the Doc Theme is activated, and as a Space Tools when the default theme is used.</p>
                </body>
            #end
        #end
</html>

Result

The action is available at http://localhost:1990/confluence/plugins/space-links/mixed.action?key=dsThe two images of the introduction show how the action displays.
