Writing a Confluence theme

Tutorial overview

This tutorial shows you how to create a Confluence custom theme as a plugin. You'll add theme and colour-scheme modules to your plugin to personalize look and feel. You can replace your organization's hex codes for the example colors used in this tutorial.

Concepts covered in this tutorial:

• Adding theme and colour-scheme modules to your plugin descriptor.
• Using QuickReload to reload Confluence with source code changes.

Before you begin

You should have a basic understanding of HTML and CSS. You can complete this tutorial successfully even if you've never created a plugin before.

Plugin source

We encourage you to work through this tutorial. If you want to skip ahead or check your work when you have finished, you can find the plugin source code on Atlassian Bitbucket. To clone the repository, run the following command:

1
2
git clone git@bitbucket.org:atlassian_tutorial/creating-a-confluence-theme.git

Step 1. Create and prune the plugin skeleton

In this step, you'll create a plugin skeleton using atlas- commands. Because you won't need some of the files created in the skeleton, you'll also delete them in this step.

1. Open Terminal and navigate to your workspace directory.

2. To create a Confluence plugin skeleton, run the following command:

   1
   2
   atlas-create-confluence-plugin


3. To identify your plugin, enter the following information:

   group-id	com.example.plugins.tutorial.confluence
   artifact-id	theme-tutorial
   version	1.0-SNAPSHOT
   package	com.example.plugins.tutorial.confluence

4. Confirm your entries when prompted with Y or y.

   Your terminal notifies you of a successful build:

   1
   2
   [INFO] ------------------------------------------------------------------------
   [INFO] BUILD SUCCESSFUL
   [INFO] ------------------------------------------------------------------------
   [INFO] Total time: 1 minute 11 seconds
   [INFO] Finished at: Thu Jul 18 11:30:23 PDT 2013
   [INFO] Final Memory: 82M/217M
   [INFO] ------------------------------------------------------------------------


5. Navigate to the project directory created in the previous step.

   1
   2
   cd theme-tutorial/


6. Delete the test directories.

   Setting up testing for your plugin isn't part of this tutorial. To delete the generated test skeleton, run the following command:

   1
   2
   rm -rf ./src/test/java
   rm -rf ./src/test/resources/


7. Delete the unneeded Java class files.

   1
   2
   rm -rf ./src/main/java/com/example/plugins/tutorial/confluence/*


8. Import the project into your favorite IDE.

Step 2. Create a simple theme and update the atlassian-plugin.xml descriptor

When you generate the plugin skeleton, a CSS directory is created automatically under src/main/resources/css. In this step, you'll add some rudimentary CSS to the file. You'll also declare this CSS resource in the atlassian-plugin.xml descriptor file, which describes how your plugin should interact with Confluence.

You'll add the Theme module to disable Confluence's default theme ( <param name="includeClassicStyles" value="false"/>), and include a resource to your custom CSS file instead. This module uses an existing Confluence class, BasicTheme, which instructs Confluence to load the theme from your plugin. This module also includes an optional name and description field, which are both visible from the Confluence Admin pages.

1. Because there is only runtime dependency on BasicTheme, you must import the package com.atlassian.confluence.themes explicitly. In your pom.xml file, add it inside <Import-Package> tag.

   1
   2
   <plugin>
       <groupId>com.atlassian.maven.plugins</groupId>
       <artifactId>maven-confluence-plugin</artifactId>
       <version>${amps.version}</version>
       <extensions>true</extensions>
       <configuration>
           <productVersion>${confluence.version}</productVersion>
           <productDataVersion>${confluence.data.version}</productDataVersion>
           <enableQuickReload>true</enableQuickReload>
           <enableFastdev>false</enableFastdev>
           <instructions>
               <Atlassian-Plugin-Key>${atlassian.plugin.key}</Atlassian-Plugin-Key>
               <Export-Package>
                   com.atlassian.tutorial.confluence.api,
               </Export-Package>
               <Import-Package>
                   com.atlassian.confluence.themes,
                   org.springframework.osgi.*;resolution:="optional",
                   org.eclipse.gemini.blueprint.*;resolution:="optional",
                   *
               </Import-Package>
               <Spring-Context>*</Spring-Context>
           </instructions>
       </configuration>
   </plugin>


2. In your IDE, navigate to src/main/resources/css.

3. Add the following CSS to the theme-tutorial.css file, save changes, and then close the file.

   1
   2
   #header .aui-header {
       background-color: black;
       border-color: black;
   }


   This transforms the default Atlassian-blue #header to black.

4. Open atlassian-plugin.xml from src/main/resources.

5. Add the following <theme> module before the closing tag of <atlassian-plugin/>: Configure includeClassicStyles to false so Confluence ignores backwards-compatible classic themes. space-ia is used to enable space sidebar. The paths to resources that you add here point to Confluence directories, not your plugin. You'll add your resource in the next step.

   1
   2
   <theme key="simpletheme" name="Simple Theme" class="com.atlassian.confluence.themes.BasicTheme">
       <description>A simple custom theme</description>
       <param name="includeClassicStyles" value="false"/>
       <resource type="download" name="default-theme.css" location="/includes/css/default-theme.css">
           <param name="source" value="webContext"/>
       </resource>
       <space-ia value="true"/>
   </theme>


6. Add your CSS file as a resource inside the </theme> tag.

   1
   2
   <resource type="download" name="theme-tutorial.css" location="/css/theme-tutorial.css"/>


7. Save the file. Here's what the descriptor file should look like up to this point:

   1
   2
   <atlassian-plugin key="${atlassian.plugin.key}" name="${project.name}" plugins-version="2">
       <plugin-info>
           <description>${project.description}</description>
           <version>${project.version}</version>
           <vendor name="${project.organization.name}" url="${project.organization.url}" />
           <param name="plugin-icon">images/pluginIcon.png</param>
           <param name="plugin-logo">images/pluginLogo.png</param>
       </plugin-info>
       <!-- add our i18n resource -->
       <resource type="i18n" name="i18n" location="theme-tutorial"/>

       <!-- add our web resources -->
       <web-resource key="theme-tutorial-resources" name="theme-tutorial Web Resources">
           <dependency>com.atlassian.auiplugin:ajs</dependency>

           <resource type="download" name="theme-tutorial.css" location="/css/theme-tutorial.css"/>
           <resource type="download" name="theme-tutorial.js" location="/js/theme-tutorial.js"/>
           <resource type="download" name="images/" location="/images"/>
           <context>theme-tutorial</context>
       </web-resource>

   <theme key="simpletheme" name="Simple Theme" class="com.atlassian.confluence.themes.BasicTheme">
       <description>A simple custom theme</description>
       <param name="includeClassicStyles" value="false"/>
       <resource type="download" name="default-theme.css" location="/includes/css/default-theme.css">
           <param name="source" value="webContext"/>
       </resource>
       <resource type="download" name="theme-tutorial.css" location="/css/theme-tutorial.css"/>
       <space-ia value="true"/>
   </theme>
   </atlassian-plugin>


Step 3. Build, install, and run your plugin

In this step you'll install your plugin and run Confluence. You'll activate your Simple Theme and verify your CSS changes.

1. Open Terminal window and navigate to the plugin root folder.

   1
   2
   cd theme-tutorial/


2. To start Confluence from your project root, run the following command.

   1
   2
   atlas-run


   This command builds your plugin code, starts a Confluence instance, and installs your plugin. This may take a few minutes.

3. Locate the URL for Confluence.
   Your terminal outputs the location of your local Confluence instance, defaulted to localhost:1990/confluence.

   1
   2
   [INFO] confluence started successfully in 71s at http://localhost:1990/confluence
   [INFO] Type CTRL-D to shutdown gracefully
   [INFO] Type CTRL-C to exit


4. In your browser, navigate to your local Confluence instance, and log in with admin / admin.

5. In the navigation bar, click the Cog icon > General Configuration.
   The administration console loads.

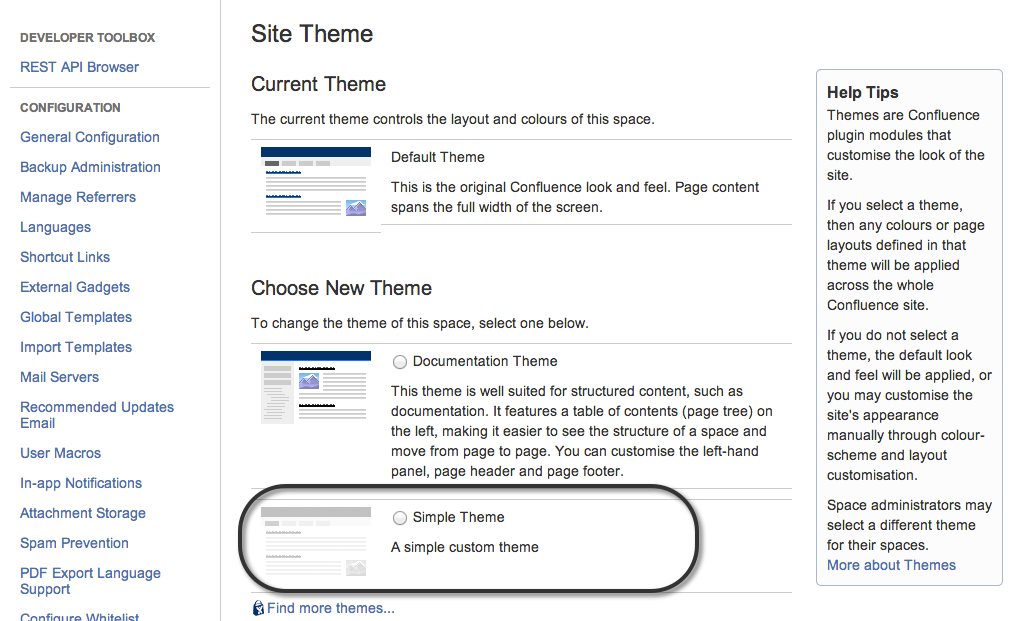

6. In the left-hand sidebar, under Look & Feel, click Themes. The Site Theme page loads, with your custom-created "Simple Theme" listed as an option. Note the title and descriptive text match what you entered.


7. Select the Simple Theme radio button, and then click Confirm.
   The page reloads, with no changes apparent: the changes you made don't effect the admin page.

8. To return to the main dashboard, click the Confluence logo in the upper-left corner.
   Your CSS is installed. All spaces, except for the admin console, will have this navigation color scheme now.


Step 4. Add a colour-scheme module to the descriptor file

Black is classic, but in this step you'll use a sophisticated colour-scheme module to your descriptor file. Right now, your plugin is pretty basic — it's a theme that just turns the header black. Here, you'll expand your theme to add multiple colors, and use QuickReload to reload the changes in Confluence.

1. Open atlassian-plugin.xml file.

2. Between the </theme> and </atlassian-plugin> closing tags, add the following code.

   1
   2
   <colour-scheme key="earth-colours" name="Brown and Red Earth Colours" class="com.atlassian.confluence.themes.BaseColourScheme">
       <colour key="property.style.topbarcolour" value="#440000"/>
       <colour key="property.style.spacenamecolour" value="#999999"/>
       <colour key="property.style.headingtextcolour" value="#663300"/>
       <colour key="property.style.linkcolour" value="#663300"/>
       <colour key="property.style.bordercolour" value="#440000"/>
       <colour key="property.style.navbgcolour" value="#663300"/>
       <colour key="property.style.navtextcolour" value="#ffffff"/>
       <colour key="property.style.navselectedbgcolour" value="#440000"/>
       <colour key="property.style.navselectedtextcolour" value="#ffffff"/>
   </colour-scheme>


   This creates an earthy theme with a white background, with different links, text colors, and other attributes.

3. Tie your colour-scheme module to your theme module.

   Before the closing </theme> tag, add the following code to include it in the resources.

   1
   2


  ```

1. Save and close the file.

2. To rebuild your plugin, run atlas-package command, and QuickReload ensures you see the changes applied.

This is what your atlassian-plugin.xml descriptor file should resemble at this point:

1
2
<atlassian-plugin key="${atlassian.plugin.key}" name="${project.name}" plugins-version="2">
    <plugin-info>
        <description>${project.description}</description>
        <version>${project.version}</version>
        <vendor name="${project.organization.name}" url="${project.organization.url}" />
        <param name="plugin-icon">images/pluginIcon.png</param>
        <param name="plugin-logo">images/pluginLogo.png</param>
    </plugin-info>
      <!-- add our i18n resource -->
    <resource type="i18n" name="i18n" location="theme-tutorial"/>
    <!-- add our web resources -->
    <web-resource key="theme-tutorial-resources" name="theme-tutorial Web Resources">
        <dependency>com.atlassian.auiplugin:ajs</dependency>
        <resource type="download" name="theme-tutorial.css" location="/css/theme-tutorial.css"/>
        <resource type="download" name="theme-tutorial.js" location="/js/theme-tutorial.js"/>
        <resource type="download" name="images/" location="/images"/>
        <context>theme-tutorial</context>
    </web-resource>

    <theme key="simpletheme" name="Simple Theme" class="com.atlassian.confluence.themes.BasicTheme">
        <description>A simple custom theme</description>
        <param name="includeClassicStyles" value="false"/>
        <resource type="download" name="default-theme.css" location="/includes/css/default-theme.css">
            <param name="source" value="webContext"/>
        </resource>
        <resource type="download" name="theme-tutorial.css" location="/css/theme-tutorial.css"/>
        <colour-scheme key="${project.groupId}.${project.artifactId}:earth-colours"/>
        <space-ia value="true"/>
    </theme>
    <colour-scheme key="earth-colours" name="Brown and Red Earth Colours" class="com.atlassian.confluence.themes.BaseColourScheme">
        <colour key="property.style.topbarcolour" value="#440000"/>
        <colour key="property.style.spacenamecolour" value="#999999"/>
        <colour key="property.style.headingtextcolour" value="#663300"/>
        <colour key="property.style.linkcolour" value="#663300"/>
        <colour key="property.style.bordercolour" value="#440000"/>
        <colour key="property.style.navbgcolour" value="#663300"/>
        <colour key="property.style.navtextcolour" value="#ffffff"/>
        <colour key="property.style.navselectedbgcolour" value="#440000"/>
        <colour key="property.style.navselectedtextcolour" value="#ffffff"/>
    </colour-scheme>
</atlassian-plugin>

Next steps

You've changed the look and feel of your Confluence instance. For a more customized workspace in Confluence, you might consider Customizing layouts of your Confluence spaces.
