Write a simple Confluence Blueprint plugin

Applicable:

This tutorial applies to Confluence Server 5.1 and higher.

Level of experience:

Beginner.

Time estimate:

It should take you less than 1 hour to complete this tutorial.

This tutorial will create a plugin that can only be installed on Confluence Server. To create a blueprint for Confluence Cloud head to Multi-page Blueprints with Confluence Connect.

On this page:

Overview of the tutorial

This tutorial shows you how to create a very simple blueprint plugin.  This tutorial does not require writing any Java classes. To complete this tutorial, you should have installed the Atlassian SDK and worked through the Atlassian Plugin SDK tutorial.

Plugin source

If you want to skip ahead or check your work when you finish, you can find the plugin source code on Atlassian Bitbucket. Bitbucket serves a public Git repository containing the tutorial's code. Alternatively, you can download the source as a ZIP archive To clone the repository, issue the following command:

git clone https://bitbucket.org/atlassian_tutorial/confluence-simple-blueprint.git

About these Instructions

You can use any supported combination of OS and IDE to create this plugin. These instructions were written using Eclipse Classic Version 3.7.1 on Mac OS X. If you are using another OS or IDE combination, you should use the equivalent operations for your specific environment.

This tutorial was last tested with Confluence 5.10.1 using the Atlassian SDK 6.2.6.


Step 1. Create the plugin project and prune the skeleton

In this step, you'll generate skeleton code for your plugin.  Since you won't need many of the skeleton files, you also delete those unused files in this step.

  1. Open a terminal on your machine and navigate to your Eclipse workspace directory.
    If you aren't using Eclipse, you do this step in any directory where you normally keep your plugin code.
  2. Enter the following command to create a plugin skeleton:

    atlas-create-confluence-plugin


    The atlas- commands are part of the Atlassian Plugin SDK, and automate some of the work of plugin development for you.

  3. When prompted, enter the following information to identify your plugin:

    group-id

    com.example.plugins.tutorial.confluence.simplebp

    artifact-id

    simplebp

    version

    1.0-SNAPSHOT

    package

    com.example.plugins.tutorial.confluence.simplebp


  4. Confirm your entries when prompted.
    The SDK creates your project skeleton and puts it in a simplebp directory.
  5. Change to the simplebp directory created by the previous step.

  6. Delete the test directories.

    Setting up blueprint testing is not part of this tutorial. Use the following command to delete the generated test skeleton:

    rm -rf ./src/test/java
    rm -rf ./src/test/resources/
  7. Delete the unneeded Java class files.

    A basic blueprint doesn't require you to write any Java code. Use the following command to delete the generated Java class skeleton:

    rm ./src/main/java/com/example/plugins/tutorial/confluence/simplebp/*.java

Now is a good point to import the project into your IDE

  Click here to see instructions for importing into Eclipse.
  1. Change back to the root of the project
  2. Run the following command:

    atlas-mvn eclipse:eclipse

  3. Start Eclipse.
  4. Select File > Import
    Eclipse starts the Import wizard.
  5. Filter for Existing Projects into Workspace (or expand the General folder tree).
  6. Choose Next and browse to the root directory of your plugin (where the pom.xml file is located).
    Your Atlassian plugin folder should appear under Projects.
  7. Select your plugin and choose Finish
    Eclipse imports your project.

Step 2. Run your plugin

At this point, you haven't actually done anything but create a skeleton plugin.  You can run that skeleton in Confluence anyway.  In this step, you do just that.

  1. Use the atlas-run command to start a local Confluence instance.
  2. Run the following command:

    atlas-run

    This command takes a minute or so to run. It builds your plugin code, starts a Confluence instance, and installs your plugin. When the process has finished, you will see many status lines on your screen concluding with something like the following:

    [INFO] [talledLocalContainer] INFO: Starting Coyote HTTP/1.1 on http-1990
    [INFO] [talledLocalContainer] Tomcat 6.x started on port [1990]
    [INFO] confluence started successfully in 132s at http://localhost:1990/confluence
    [INFO] Type Ctrl-D to shutdown gracefully
    [INFO] Type Ctrl-C to exit

    You'll see the output includes a URL for the Confluence instance.

  3. Log into the instance as user admin using a password of admin.
    The Confluence Dashboard appears.
  4. Leave Confluence running in your browser.


Step 3. Create some page content for your template

A template is an XML file that describes a page using Confluence source format. The simplest blueprints need only an XHTML template to do something cool.  In this step, you use Confluence to design a simple template and then use the Confluence Source Editor add-on to copy the source format.   From your browser, running Confluence, do the following.

  1. Choose Spaces  from the menu bar.
  2. Select the Demonstration Space.
    The system places you in the space home.
  3. Press the Create button at the top of the page.
    The system displays the Create dialog. It is this dialog you will customize by adding your own blueprint to it.

  4. Select the Blank page item.
  5. Press the Create button.
    The system puts you in a new page.
  6. Add a two column table to the page.

    Name Date
    Enter your name here. Enter today's date here.
  7. Title your page Template Content and press Save.

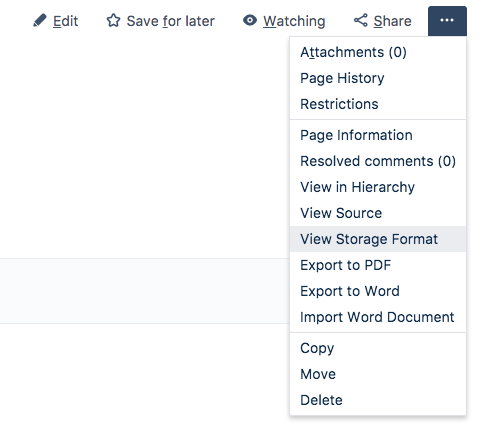

  8. Go to > View Storage Format.
  9. The storage format of the page will pop-up in a new browser window. Leave this open for now.

Step 4. Create a template for your project

Your plugin must include the template file in its directory structure. By convention, a template is a plugin resources so a good place to store your template is in the resource directory.  At this point, you have Confluence with the source content displayed. So, open a second terminal window on your local machine and do the following:

  1. Change directory to the root your simplebb project directory.
  2. Create a templates subdirectory in resources.

    mkdir src/main/resources/templates
  3. Create a mytemplate.xml file in your newly created templates directory.
  4. Open the mytemplate.xml file for editing.
  5. Bring up the browser with the source content.
  6. Copy the storage format into the mytemplate.xml file and close the browser window.

      Click here to see how your file should look.
    <table>
      <tbody>
        <tr>
          <th>Name</th>
          <th>Date</th>
        </tr>
        <tr>
          <td>Enter your name here</td>
          <td>Enter today's date here</td>
        </tr>
      </tbody>
    </table>
  7. Save and close the mytemplate.xml file.

Step 5. Add additional resources to your project

Blueprints support internationalization. So, in this step, you'll modify the generated simplebp.properties file which is used to support internationalization.  You'll also add a image to your project to represent your blueprint in the Create dialog.  In your terminal window, do the following.

  1. Edit your project's src/main/resources/simplebp.properties file
  2. Add the following properties.

    my.blueprint.title=Sample Template
    my.create-link.title=My Sample Template
    my.create-link.description=Create a new SimpleBP template

    You can change the title of the template or the description anyway you want.

      Click here to see the completed file.
    my.blueprint.title=Sample Template
    my.create-link.title=My Sample Template
    my.create-link.description=Create a new SimpleBP template
  3. Save and close the simplebp.properties file.
  4. Save myblueprint.png image to your project's src/main/resources/images directory.
  5. Check your work.
    At this point, your project's src/main/resources directory should contain the following files:

    |____atlassian-plugin.xml
    |____css
    | |____simplebp.css
    |____images
    | |____myblueprint.png
    | |____pluginIcon.png
    | |____pluginLogo.png
    |____js
    | |____simplebp.js
    |____simplebp.properties
    |____templates
    | |____mytemplate.xml

Step 6. Add the modules to the atlassian-plugin.xml file

Each blueprint relies on three component modules:

Module Purpose
content-template Describes the templates available with your plugin. You must have one of these; you can have multiple if your plugin includes multiple templates.
blueprint Identifies the blueprint.
web-item Adds the option for your blueprint to the Create dialog.

Add the modules to the file, by going to your plugin project root and doing the following:

  1. Edit the src/main/resources/atlassian-plugin.xml file.
  2. Add a content-template module for your template.

     <!-- Template for Blueprint -->
        <content-template key="simplebp-template" template-title-key="my.blueprint.title">
    		<resource name="template" type="download" location="/templates/mytemplate.xml" />
    	</content-template>
  3. Add a blueprint module for your template.


        <!-- Blueprint -->
        <blueprint key="my-blueprint" content-template-key="simplebp-template" index-key="my-index" />
  4. Add you a link for you template to the Create dialog.

         <!-- Add to the Create Menu -->
        <web-item key="create-by-sample-template" i18n-name-key="my.create-link.title" section="system.create.dialog/content">
    		<description key="my.create-link.description" />
    		<resource name="icon" type="download" location="/images/myblueprint.png" />
    		<param name="blueprintKey" value="my-blueprint" />
         </web-item>
  5. Check your work.

      Click here to view the entire file.
    <atlassian-plugin key="${project.groupId}.${project.artifactId}" name="${project.name}" plugins-version="2">
        <plugin-info>
            <description>${project.description}</description>
            <version>${project.version}</version>
            <vendor name="${project.organization.name}" url="${project.organization.url}" />
            <param name="plugin-icon">images/pluginIcon.png</param>
            <param name="plugin-logo">images/pluginLogo.png</param>
        </plugin-info>
        <!-- add our i18n resource -->
        <resource type="i18n" name="i18n" location="simplebp"/>

        <!-- add our web resources -->
        <web-resource key="simplebp-resources" name="simplebp Web Resources">
            <dependency>com.atlassian.auiplugin:ajs</dependency>

            <resource type="download" name="simplebp.css" location="/css/simplebp.css"/>
            <resource type="download" name="simplebp.js" location="/js/simplebp.js"/>
            <resource type="download" name="images/" location="/images"/>
            <context>simplebp</context>
        </web-resource>

        <!-- Template for Blueprint -->
        <content-template key="simplebp-template" template-title-key="my.blueprint.title">
    		<resource name="template" type="download" location="/templates/mytemplate.xml" />
    	</content-template>

        <!-- Add to the Create Menu -->
        <web-item key="create-by-sample-template" i18n-name-key="my.create-link.title" section="system.create.dialog/content">
    		<description key="my.create-link.description" />
    		<resource name="icon" type="download" location="/images/myblueprint.png" />
    		<param name="blueprintKey" value="my-blueprint" />
         </web-item>

        <!-- Blueprint -->
        <blueprint key="my-blueprint" content-template-key="simplebp-template" index-key="my-index" />

        <!-- import from the product container -->
        <component-import key="applicationProperties" interface="com.atlassian.sal.api.ApplicationProperties" />


    </atlassian-plugin>
  6. Save and close your atlassian-plugin.xml file.

Step 7. Build your changes and see your plugin in action

Now, you are ready to build your plugin and see it in action.  You can build the plugin from within Confluence using the Developer Toolbar.  Go back to the Confluence browser window and do the following:

  1. Rebuild your plugin from the command line, QuickReload will automatically reload your plugin for you.
  2. Make sure you are still in the Demonstration Space.
  3. Press the Create button.
    The Create dialog appears and now contains your blueprint entry.

  4. Choose the My Sample Template option.
    The system creates a new page using your template.
