Teamwork Graph connector (EAP)

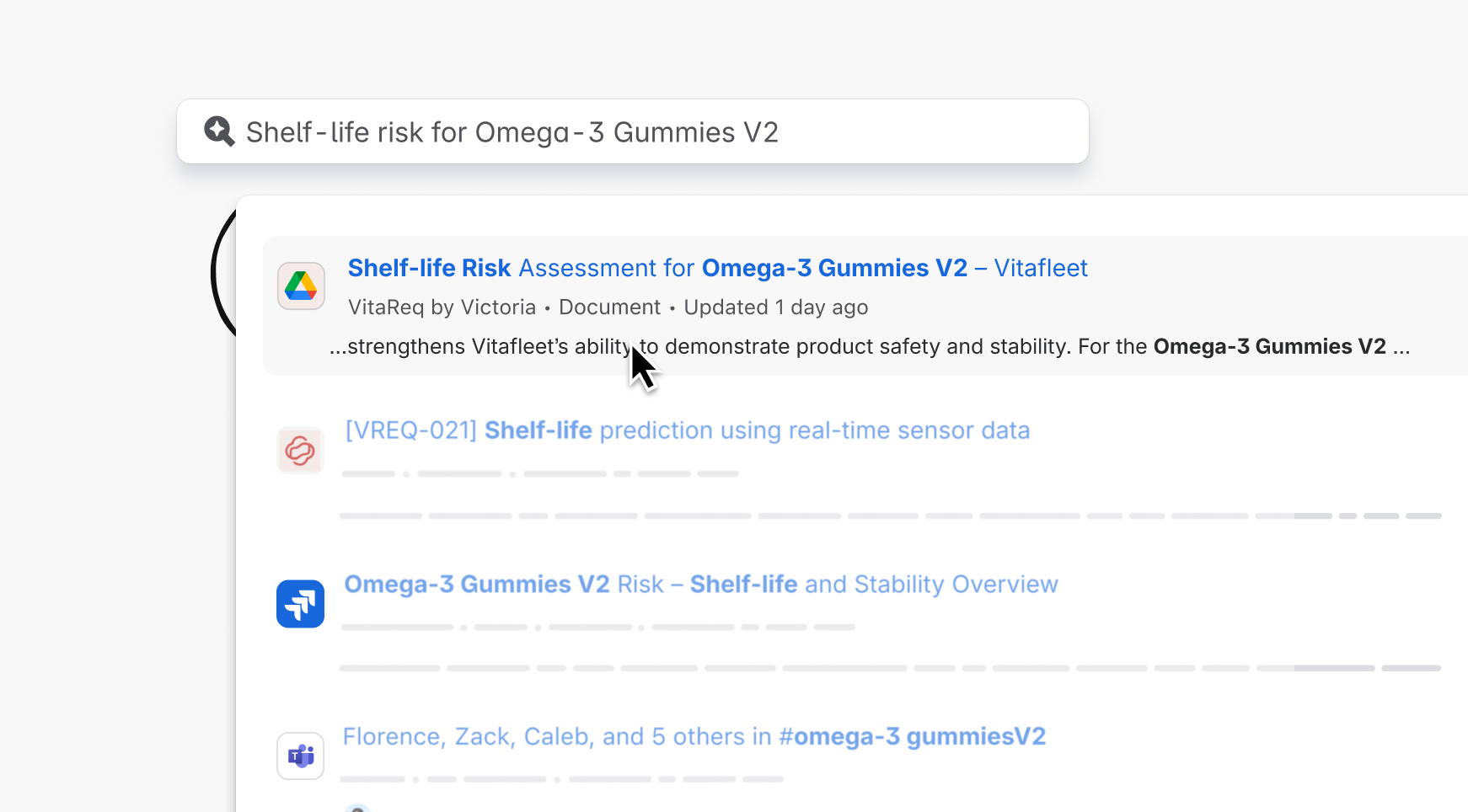

The graph:connector module allows your app to import data from external tools into Atlassian's Teamwork Graph. Once the data is integrated into the Graph, it becomes accessible across various Atlassian experiences, including Search, Rovo Chat, Rovo Agents, and Atlassian Analytics.

This module works in conjunction with the Teamwork Graph connector SDK. To install, run:

1
2
npm i @forge/teamwork-graph

Manifest structure

1
2
modules {}
└─ graph:connector
   ├─ key (string) [Required]
   ├─ name (string) [Required]
   ├─ icons (object) [Required]
   │  ├─ light (string) [Required]
   │  └─ dark (string) [Required]
   ├─ objectTypes (array of string) [Required]
   ├─ auth (object) [Optional]
   │  └─ provider (AuthProvider) [Required]
   └─ datasource (object) [Required]
      ├─ formConfiguration (object) [Optional]
      │  ├─ instructions (array of string) [Optional]
      │  ├─ form (array of FormSection) [Required]
      │  │  ├─ key (string) [Required]
      │  │  ├─ type (string) [Required]
      │  │  ├─ title (string) [Required]
      │  │  ├─ description (string) [Required]
      │  │  └─ properties (array of FormProperty) [Required]
      │  │     ├─ key (string) [Required]
      │  │     ├─ label (string) [Required]
      │  │     ├─ type (string) [Required]
      │  │     ├─ isRequired (boolean) [Optional]
      │  │     ├─ isSensitive (boolean) [Optional]
      │  │     └─ hideInEditView (boolean) [Optional]
      │  └─ validateConnection (object) [Required]
      │     └─ function (Function) [Required]
      └─ onConnectionChange (object) [Required]
         └─ function (Function) [Required]

function []
├─ key (string) [Mandatory]
└─ handler (string) [Mandatory]

Properties

Form configuration

Defines the fields and layout shown to admins when configuring this connector in the admin experience.

Scopes required

To enable data ingestion and retrieval, you will also need to enable the following scopes in your manifest:

1
2
permissions:
  scopes:
    - write:object:jira
    - read:object:jira
    - delete:object:jira

Configuration in Atlassian Administration

Admins will be able to configure and manage the Teamwork Graph connectors available in your app in Atlassian Administration through Connected apps.

The Connected apps screen can be accessed within Atlassian Administration by navigating to Apps > Site > Connected apps.

After selecting the app, all available Teamwork Graph connectors will be shown in the Connections tab.

Admins must configure the connector before it can start providing data to Teamwork Graph. To do this, the admin will click the Connect button, which opens a configuration modal.

Configuration details

The configuration screens in Rovo and Connected apps include the same content. There is some Atlassian-defined information, such as legal and privacy declarations, and a required field for the admin to enter a connector nickname.

Using the properties that are defined in the manifest under the formConfiguration section, you can add to and customize this screen. You can provide additional details to admins in the Before you begin section with the instructions property, and add fields for admins to provide any further information you require for the connector, such as API keys, with the form property.

Supported functions

validateConnection

The validateConnection function is required, only if the connector requires the admin to provide additional configuration, via the Form input properties. The Forge app will be called to validate the data entered by the Admin User to ensure it can successfully connect to the remote system. Atlassian will only proceed to set up the data source for ingestion into Teamwork Graph after the connection has been validated.

If the connector does not require any additional configuration properties, i.e Form Configuration, the validateConnection function should not be supplied and will not be called.

Request Payload

1
2
{
  name: string;
  configProperties: Record<string,string>;
}

Example

1
2
{
  "name" : "My Connection",
  "configProperties" : {
    "secret" : "jane",
    "username" : "joe"
  }
}

Response

If the connection is not valid, the function must throw an Error("Reason for error"). If successful, the function should return with a HTTP 200 response.

onConnectionChange

The onConnectionChange function is required. Whenever a connection is created, updated, or disconnected (deleted), Atlassian notifies the Forge app by invoking the onConnectionChange function. This enables your app to start data synchronization, update sync parameters, or halt data ingestion when a connection is removed.

The onConnectionChange function will be executed when there is any change to the configuration of a connection. The possible values for action are CREATED, UPDATED, and DELETED.

Note that Atlassian will automatically take care of deleting the data assocociated with the Connection. No data deletion logic is required to remove the data from Teamwork Graph by the App when a Connection is deleted.

Request

1
2
{
  action: CREATED | UPDATED | DELETED;
  name: string;
  connectionId: string;
  configProperties: Record<string,string>?;
}

Example

1
2
"body": {
  "action": "CREATED",
  "name" : "My Connection",
  "connectionId": "edc0ce33-2f67-4997-8c0f-c5f38923e33f",
  "configProperties" : {
    "secret" : "jane",
    "username" : "joe"
    }
}

Response

To acknowledge receipt of the change notification, the function should return a Success response.

Manifest examples

Connector with no end-user OAuth or configuration properties

In this example, the Teamwork Graph connector does not require end-user authentication on the remote system, so the auth.provider property is omitted. Note that because there is no end-user authentication, the object permissions will need to be scoped to the Atlassian Workspace (e.g ATLASSIAN_WORKSPACE permission). Without the end-user OAuth authentication, Atlassian can not reliably link the external user account to the Atlassian user and apply permissions.

Furthermore, in this example the connector does not require any additional admin configuration, beyond the required connector nickname.

This scenario represents an app that operates entirely within Atlassian boundaries, with all data residing on the same site as the app installation. As a result, no additional connection details are needed.

When the admin creates the connection, the app will not be prompted to validate it. However, the app will still be notified when the connection is established so that data ingestion can begin. The app will also receive notifications if the connector is disconnected, allowing it to handle cleanup as needed.

1
2
permissions:
  scopes:
    - write:object:jira
    - read:object:jira
    - delete:object:jira
  external:
    fetch:
      backend:
        - "https://www.remote-service.com"

graph:connector:
  - key: example-connector
    name: Example Connector
    icons:
     light: https://static.example-hello-world.com/favicon-light.ico
     dark: https://static.example-hello-world.com/favicon-dark.ico
    objectTypes:
      - atlassian:document
      - atlassian:feature-flag
    datasource:
        onConnectionChange:
          function: onConnectionChangeFn

function:
    - key: onConnectionChangeFn
       handler: index.onConnectionChange

Connector requiring end-user OAuth and configuration properties

In this example, this app has defined a set of properties that the admin must provide to configure the connection. When the admin submits the configuration, the app is prompted to validate the connection using the validateConnection function.

Once validation succeeds, Atlassian sets up the connection for data ingestion and notifies the app when the connection is fully established and ready for use via the onConnectionChange function.

1
2
permissions:
  scopes:
    - write:object:jira
    - read:object:jira
    - delete:object:jira
  external:
    fetch:
      backend:
        - "https://www.remote-service.com"

graph:connector:
  - key: example-connector
    name: Example Connector
    icons:
     light: https://static.example-hello-world.com/favicon-light.ico
     dark: https://static.example-hello-world.com/favicon-dark.ico
    objectTypes:
      - atlassian:document
    auth:
        provider: myAuthProviderKey
    datasource:
      formConfiguration:
        form:
          - key: exampleSection1
            type: header
            title: Connection Details
            description: Please provide your API Key
            properties:
              - key: apiKey
                label: Api Key
                type: string
                isRequired: true
        validateConnection:
          function: validateConnectionFn
      onConnectionChange:
        function: onConnectionChangeFn
function:
    - key: onConnectionChangeFn
       handler: index.onConnectionChange
    - key: validateConnectionFn
       handler: index.validateConnection

Guidelines

To ensure a consistent and user-friendly experience across Atlassian surfaces, such as Rovo Search, please ensure your connector adheres to the following guidelines:

Logo usage

• Use the official logo of the service for your connector. For example, if you are building a ServiceNow connector, use the official ServiceNow logo.

• Do not modify or combine the official logo with your company or developer logo. The connector logo should remain the unaltered, official logo of the service.

Connector naming

• Use the official service name as the connector name. For example, "Service Now".

• Do not add prefixes, suffixes, or descriptors. For example, avoid names like “ServiceNow Demand Connector” or "ServiceNow by Your Name". The connector should simply be named after the service.

Differentiation between Atlassian-built and Partner-built connectors

• Admins will be able to differentiate connectors built by Atlassian and those built by Partners in the configuration UI, where the developer name and app name is displayed.

• End users will see a “connector nickname” as a subfilter within Rovo Search to distinguish between connectors, including multiple connectors of the same tool.

Forge app branding

For your Forge app itself, outside of the connector, you may use your own name and logo. The above guidelines apply only to the connector configuration.

Object types and connector SDK
