Issue view UI locations

Issue Operations Bar Locations

The two opsbar-operations and opsbar-transitions locations together define web sections and items in the issue operations bar, which is visible on the 'View Issue' page.

You can add new web items to existing web sections within the opsbar-operations and opsbar-transitions locations of the issue operations bar (see Existing Web Sections of the Issue Operations Bar Locations). You can also add new web sections to the 'More Actions' dropdown menu (in the opsbar-operations location).

Adding New Items to Existing Web Sections

To add your own web item to an existing web section of one of Jira's issue operations bar locations, your web item must include a section attribute whose value is one of the sections specified in the Existing Web Sections of the Issue Operations Bar Locations diagram.

For example, to add a web item module that defines a new item in the 'operations-operations' section, your web item module would contain:

1
2
<web-item ... section="operations-operations" ...>
    ...
</web-item>

To add an item to the opsbar-transitions location, the value of your web item's section attribute must be "transitions-all". Referencing the opsbar-transitions location explicitly in your web item definition will not work.

Existing Web Sections of the Issue Operations Bar Locations

Adding Custom Sections and Items

To add your own section to the 'More Actions' drop-down menu, define a web section that includes a location attribute with the value "opsbar-operations".

For example, your web section module would contain:

1
2
<web-section key="my-custom-more-actions-section" ... location="opsbar-operations" ...>
    ...
</web-section>

Adding new web items to your own sections is similar to the method above for adding new web items to existing web sections. However, specify the value of your web section's key attribute as the value of your web item's section attribute. Hence, following on from the previous example, your web item would contain:

1
2
<web-item ... section="my-custom-more-actions-section" ...>
    ...
</web-item>

Customising the Positions of Items and Sections

To customise the position of your own web items or sections throughout the issue operations bar, add a weight attribute to your <web-item> or <web-section> and adjust its value with respect to Jira's existing web items or sections.

• For web items added to the 'operations-top-level' section, lower weight values result in buttons appearing closer to the left of the user interface.

• For web items and sections which target the 'More Actions' drop-down menu, lower weight values result in these items/sections appearing higher up the drop-down menu.

• For web items added to the 'transitions-all' section, lower weight values result in these items appearing closer to the left and then higher up the 'Workflow' drop-down menu.

  Note that these values are overridden by opsbar-sequence property keys, which can be specified by a Jira administrator through the administration console. See Customising workflow transitions on the 'View Issue' page for details.

Source File

To find the values of Jira's existing web items and sections for the opsbar-operations and opsbar-transitions locations, view the following file in Jira's source archive:
<source-installation-directory>/jira-project/jira-components/jira-core/src/main/resources/system-issueoperations-plugin.xml

Right Side of the 'View Issue' Page Location

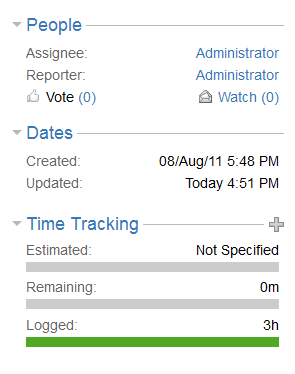

The atl.jira.view.issue.right.context location defines web panels for the right hand side of the 'View Issue' page.

Adding Custom Panels

To add your own web panel to the summary tab location of Jira's project configuration administration, your web panel must include a location attribute whose value is "atl.jira.view.issue.right.context".

For example:

1
2
<web-panel ... location="atl.jira.view.issue.right.context" ...>
    ...
        <label key="my-new-panel.title"/>
    ...
</web-panel>

Panel Headings

If you wish to create a 'panel label' (i.e. the collapsible heading which appears at the top of the panel), define a <label> element with a key attribute whose value defines a unique property (i.e. my-new-panel.title based on the example above). The string value of this unique property (defined in your plugin's i18n.properties file) will be shown in bold text at the top of your section.

If you do not wish a heading to appear at the top of the panel, include the following child element in your <web-panel> module:

1
2
<param name="headless">true</param>

Customising the Positions of Panels

To customise the position of your own web panels in this location, add a weight attribute to your <web-panel> and adjust its value with respect to Jira's existing web panels. Lower weight values result in these panels appearing higher up the right hand side of the 'View Issue' page.

Source File

To find the values of Jira's existing web panels for the atl.jira.view.issue.right.context location, view the following file in Jira's source archive:
<source-installation-directory>/jira-project/jira-components/jira-plugins/jira-view-issue-plugin/src/main/resources/atlassian-plugin.xml
