uiModifications

To consume the UI Modifications (UIM) API, your app needs to import the @forge/jira-bridge package:

1
2
import { uiModificationsApi } from '@forge/jira-bridge';

This API is strictly related to the Jira UI modifications module

Initialization

onInit method signature

1
2
onInit(<initCallback>, <registerFieldsCallback>): void

onInit method description

initCallback is where apps can query field/screen tab data and request modifications. registerFieldsCallback is used to specify which fields will be changed by initCallback. The information returned by registerFieldsCallback is used to display a loading indicator next to the relevant fields until initCallback finishes. There is no need to register screen tabs in order to modify them.

Both callback functions are called every time:

• the Global issue create (GIC), Issue view or Issue transition is opened from a supported entry point
• the project or issueType (from context) changes
• GIC only: an issue is created with the create another issue checkbox enabled

The initCallback function will receive one object as an argument. This object contains the following attributes:

• api - the API used to find and modify fields and/or screen tabs
• uiModifications - an array of UIM entities registered for a given context

The registerFieldsCallback function will receive an object containing:

• uiModifications - an array of UIM entities registered for a given context

1
2
uiModificationsApi.onInit(({ api, uiModifications }) => {
  // You can find form fields using the FieldsHookApi
  const summary = api.getFieldById('summary');
  // You can manipulate the fields you found
  if (summary) {
    summary.setDescription('New summary description');
  }
  // You can find screen tabs using the ScreenTabsHookApi
  const tabs = api.getScreenTabs();
  // You can manipulate the tabs you found
  if (Array.isArray(tabs) && tabs.length > 0) {
    tabs[0].setVisible(true);
    tabs[0].focus();
  }
}, ({ uiModifications }) => {
  // This function should return an array of the IDs of the fields
  // which are going to be changed in initCallback
  return ['summary'];
})

All modifications requested synchronously using this API will be batched and applied at once. That means that consecutive modifications applied by the same FieldAPI/ScreenTabAPI method within the onInit callback will override the previous ones.

1
2
uiModificationsApi.onInit(({ api }) => {
    const { getFieldById } = api;
    const summary = getFieldById('summary');

    summary.setDescription('First description'); // will be overridden by the next `summary.setDescription` call
    summary.setDescription('Second description'); //  this change will be applied
}, ({ uiModifications }) => {
    return ['summary'];
})

If a Promise is returned from the callback, all of the modifications will be postponed until the Promise resolves. This may be useful in a scenario when the app needs to perform an async operation before it requests a change.

Reacting to change

onChange method signature

1
2
onChange(<changeCallback>, <registerFieldsCallback>): void

onChange method description

changeCallback is where apps can query field/screen tab data and request modifications. registerFieldsCallback is used to specify which fields will be changed by changeCallback. The information returned by registerFieldsCallback is used to display a loading indicator next to the relevant fields until changeCallback finishes. There is no need to register screen tabs in order to modify them.

Both callback functions are called every time:

• the blur field event is triggered by one of the supported text fields, which are summary and description
• the change field event is triggered by any other supported field (for select-type fields when the user picks an option; for Issue view when the user commits a value)

The changeCallback function will receive one object as an argument. This object contains the following attributes:

• api - the API used to find and modify fields and/or screen tabs
• change - an object with the current attribute containing the object exposing the FieldAPI of the field which triggered the change event
• uiModifications - an array of UIM entities registered for a given context

The registerFieldsCallback function will receive an object containing:

• change - an object with the current attribute containing the object exposing the FieldAPI of the field which triggered the change event
• uiModifications - an array of UIM entities registered for a given context

1
2
uiModificationsApi.onChange(({ api, change, uiModifications }) => {
  // You can find form fields using the FieldsHookApi
  // You can also manipulate the fields you found or access the field
  // that triggered the change
  const { current } = change;
  if (current.getId() === 'summary') {
    // hint: You may want to read the content of uiModifications before
    // deciding what changes need to be applied here
    current.setDescription('New summary description');
  }
  // You can find screen tabs using the ScreenTabsHookApi
  const tabs = api.getScreenTabs();
  // You can manipulate the tabs you found
  if (Array.isArray(tabs) && tabs.length > 0) {
    tabs[0].setVisible(true);
    tabs[0].focus();
  }
}, ({ change, uiModifications }) => {
  // This function should return an array of the IDs of the fields
  // which are going to be changed in changeCallback
  return ['summary'];
})

All modifications requested synchronously using this API will be batched and applied at once. That means that consecutive modifications applied by the same FieldAPI/ScreenTabAPI method within the onChange callback will override the previous ones.

1
2
uiModificationsApi.onChange(({ api }) => {
    const { getFieldById } = api;
    const summary = getFieldById('summary');

    summary.setDescription('First description'); // will be overridden by the next `summary.setDescription` call
    summary.setDescription('Second description'); //  this change will be applied
}, ({ uiModifications }) => {
    return ['summary'];
})

If a Promise is returned from the callback, all of the modifications will be postponed until the Promise resolves. This may be useful in a scenario when the app needs to perform an async operation before it requests a change.

Error handling

onError method signature

1
2
onError(<errorCallback>): void

onError method description

An errorCallback is where apps can process information about the errors that happened during the execution of UI modifications. The callback function is called when:

• a validation error occurs, which means data passed to one of the FieldAPI or ScreenTabAPI methods was invalid
• a conflict error occurs, which means multiple apps attempted to call the same FieldAPI or ScreenTabAPI method on the same field or tab

The errorCallback function will receive one object as an argument. This object contains the following attributes:

• errors - the array of objects with error data

1
2
uiModificationsApi.onError(({ errors }) => {
    // you can process errors' data in the errorCallback
    for (const error of errors) {
        if (error.type === 'FIELD_VALIDATION_FAILED') {
            logFieldValidationError(error);
        }

        if (error.type === 'SCREENTABS_VALIDATION_FAILED') {
            logScreenTabsValidationError(error);
        }

        if (error.type === 'MULTIPLE_APPS_CONFLICT') {
            logConflictError(error);
        }
    }
})

field validation error shape

1
2
{
    type: 'FIELD_VALIDATION_FAILED',
    fieldId: string,
    fieldType: string,
    method: string, // for example: setRequired
    message?: string; // additional information about the error
}

screen tab validation error shape

1
2
{
    type: 'SCREENTABS_VALIDATION_FAILED',
    message?: string; // additional information about the error
}

conflict error shape

1
2
{
    type: 'MULTIPLE_APPS_CONFLICT',
    cause: 'FIELD',
    fieldId: string;
    fieldType: string;
    lifecycleHook: 'onInit' | 'onChange';
    method: string, // for example: setValue
    message: string; // additional information about the error
}

Querying fields

getFieldById method signature

1
2
getFieldById<fieldType>(<fieldId>): FieldAPI | undefined

getFieldById method description

Uses the generic: fieldType (string) - the type of the field that the app wants to work on.

Accepts one argument: fieldId (string) - the ID of the field which the app wants to work on.

Returns the FieldAPI object if the field exists on the supported view.

Returns undefined if the field doesn't exist or isn’t supported by UIM.

Example of usage with regular field:

1
2
uiModificationsApi.onInit(({ api }) => {
  const { getFieldById } = api;
  const description = getFieldById('description')
  // You can perform operations on 'description'
  // field using the FieldAPI here
}, () => ['description'])

Example of usage with custom field:

1
2
    uiModificationsApi.onInit(({ api }) => {
    const { getFieldById } = api;
    const select = getFieldById<'com.atlassian.jira.plugin.system.customfieldtypes:select'>('customfield_10035')
    // You can perform operations on 'customfield_10035'
    // single select field using the FieldAPI here
}, () => ['customfield_10035'])

Iterating over supported fields

getFields method signature

1
2
getFields(): FieldAPI[]

getFields method description

Returns an array of FieldAPI objects with all supported fields available on a current view form.

Example of usage:

1
2
uiModificationsApi.onInit(({ api }) => {
  const { getFields } = api;
  const fields = getFields();
  // You can iterate over fields
  // and perform operations on each
  // field using the FieldAPI here
}, () => [])

Supported fields per view

Global issue create

Issue view (preview)

Issue transition (preview)

Common FieldAPI

getId

1
2
getId(): string

Returns the field's ID.

getType

1
2
getType(): FieldType

Returns the field's type.

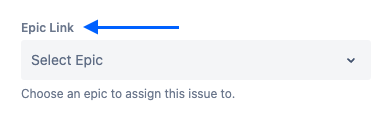

setName

1
2
setName(value: string): FieldAPI

Changes the field's name.

Example:

1
2
field.setName('New name for the field');

getName

1
2
getName(): string

Returns the field's name.

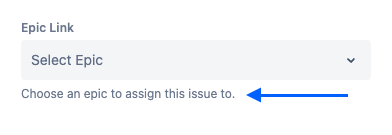

setDescription

1
2
setDescription(value: string): FieldAPI

Changes the field's description.

Example:

1
2
field.setDescription('This the description!');

getDescription

1
2
getDescription(): string

Returns the field’s description.

setVisible

1
2
setVisible(value: boolean): FieldAPI

Changes field visibility. The form payload will contain the field’s value, but the field won’t be visible in the UI if this is set to false.

Example:

1
2
field.setVisible(false);

isVisible

1
2
isVisible(): boolean

Returns true if the field is currently visible. Returns false otherwise.

setValue

1
2
setValue(value: unknown): FieldAPI

Set a given field's value. See the specific field value contracts in the Field details section below to make sure the changes requested by this method will be applied.

getValue

1
2
getValue(): unknown

See the field contracts below to learn the shape of the data returned by each field.

setReadOnly

1
2
setReadOnly(value: boolean): FieldAPI

Set if a given field’s value is read-only. If true, the form payload will contain the field’s value, but the user won’t be able to modify the value in the UI.

Example:

1
2
field.setReadOnly(true);

isReadOnly

1
2
isReadOnly(): boolean

Returns true if the field's value currently can't be modified. Returns false otherwise.

setRequired

1
2
setRequired(value: boolean): FieldAPI

Set a given field as required. Fields required by system configuration can't be set to non-required. Example:

1
2
field.setRequired(true);

isRequired

1
2
isRequired(): boolean

Returns true if the field is currently required. Returns false otherwise.

setOptionsVisibility

1
2
setOptionsVisibility(options: string[], isVisible: boolean): FieldAPI

Applies a visibility rule based on a list of option ids and isVisible arguments for a given field's dropdown list of options.

Note that the method only allows you to either make some options visible or make some options hidden, not both.

Example:

1
2
// Only display the enumerated options, others will be hidden
field.setOptionsVisibility(['field-option-id-1', 'field-option-id-2'], true);

// Only hide the enumerated options, others will be visible
field.setOptionsVisibility(['field-option-id-1', 'field-option-id-2'], false);

// Special case, hide all options in the dropdown
field.setOptionsVisibility([], true);

getOptionsVisibility

1
2
getOptionsVisibility(): OptionsVisibility | undefined

Returns an object containing the isVisible: boolean and options: string[] attributes. The options attribute contains IDs of options with modified visibility.

This method, when called within the onInit callback, always returns undefined, meaning the visibility of options wasn't yet modified by setOptionsVisibility.

Field details

issue type

type: issuetype

setValue signature

1
2
setValue(id: string): FieldAPI

getValue signature

1
2
getValue(): IssueTypeField

issue type field shape

1
2
{
    id: string,
    name: string,
}

Reference screenshots

priority

type: priority

setValue signature

1
2
setValue(id: string): FieldAPI

getValue signature

1
2
getValue(): PriorityField

Priority field shape

1
2
{
  id: string,   // '2'
  name: string, // 'High'
  iconUrl?: string,
}

Reference screenshot

Resolution

type: resolution

setValue signature

1
2
setValue(id: string | null): FieldAPI

getValue signature

1
2
getValue(): ResolutionField

Resolution field shape

1
2
{
  id: string,
  value: string,
} | null

Reference screenshot

summary

type: summary

setValue signature

1
2
setValue(id: SummaryField): FieldAPI

getValue signature

1
2
getValue(): SummaryField

Summary field shape

1
2
string

Reference screenshot

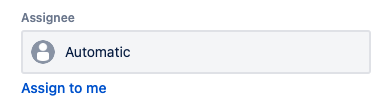

assignee

type: assignee

setValue signature

1
2
setValue(accountId: string | null): FieldAPI

getValue signature

1
2
getValue(): AssigneeField

Assignee field shape

1
2
null | {
    accountId: string,
}

Reference screenshot

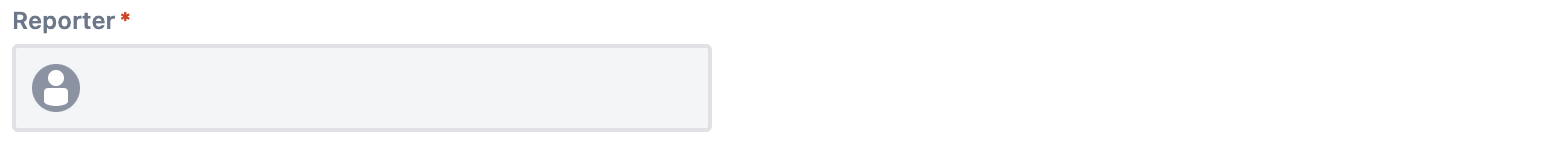

reporter

type: reporter

setValue signature

1
2
setValue(accountId: string | null): FieldAPI

getValue signature

1
2
getValue(): ReporterField

reporter field shape

1
2
null | {  accountId: string }

Reference screenshots

labels

type: labels

setValue signature

1
2
setValue(ids: string[]): FieldAPI

getValue signature

1
2
getValue(): LabelsField

labels field shape

1
2
string[]

Reference screenshot

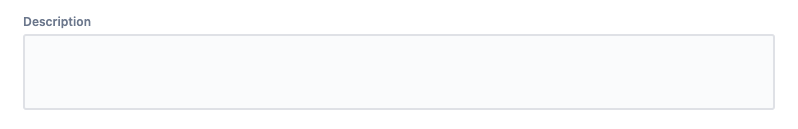

description

type: description

setValue signature

1
2
setValue(value: DescriptionField): FieldAPI

getValue signature

1
2
getValue(): DescriptionField

description field shape (Global issue create, Issue transition)

1
2
string // Plain-text editor
|
type ADF = {
    version: 1,
    type: 'doc',
    content: Node[]
} // Rich-text editor (ADF format)
// https://developer.atlassian.com/cloud/jira/platform/apis/document/structure/

description field shape (Issue view)

1
2
type ADF = {
    version: 1,
    type: 'doc',
    content: Node[]
} // Rich-text editor (ADF format)
// https://developer.atlassian.com/cloud/jira/platform/apis/document/structure/

Reference screenshots

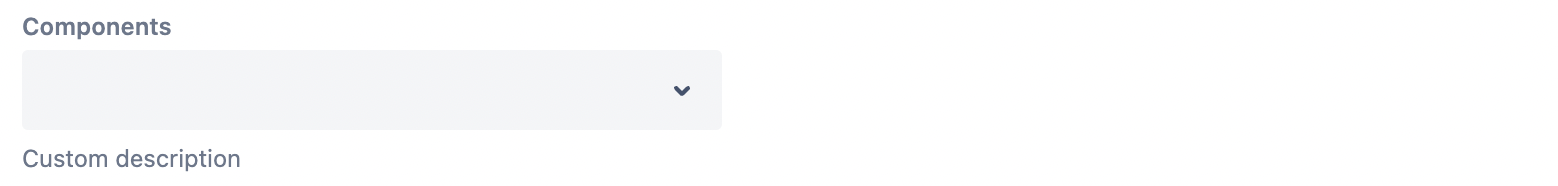

components

type: components

setValue signature

1
2
setValue(ids: string[]): FieldAPI

getValue signature

1
2
getValue(): ComponentsField

components field shape

1
2
[
    {
        id: string,
        name: string,
    },
    {
        id: string,
        name: string,
    },
    ...
  ]

Reference screenshots

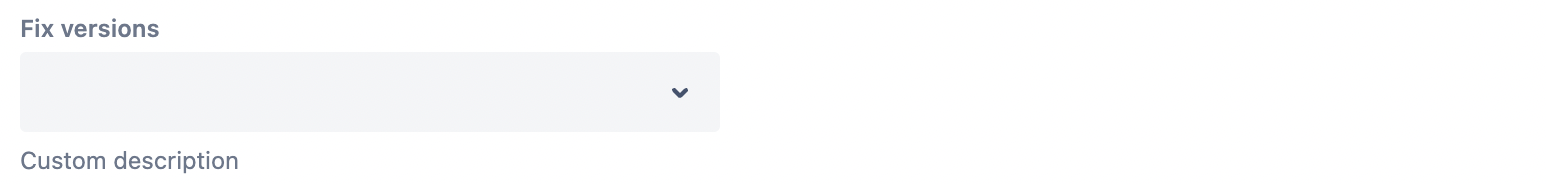

fix versions

type: fixVersions

setValue signature

1
2
setValue(ids: string[]): FieldAPI

getValue signature

1
2
getValue(): FixVersionsField

fix versions field shape

1
2
[
    {
        id: string,
        name: string,
    },
    {
        id: string,
        name: string,
    },
    ...
  ]

Reference screenshots

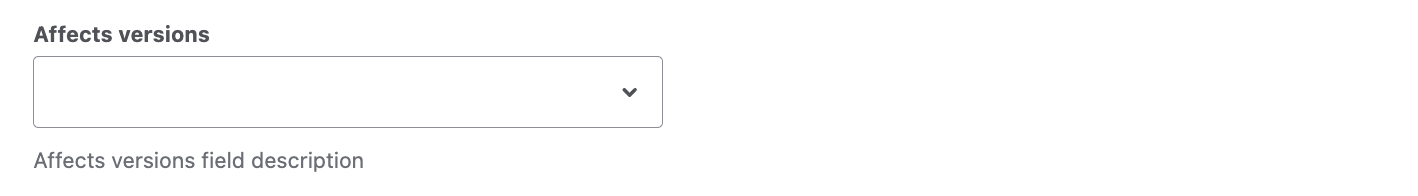

affects versions

type: versions

setValue signature

1
2
setValue(ids: string[]): FieldAPI

getValue signature

1
2
getValue(): VersionsField

affects versions field shape

1
2
[
    {
        id: string,
        name: string,
    },
    {
        id: string,
        name: string,
    },
    ...
  ]

Reference screenshots

single select

type: com.atlassian.jira.plugin.system.customfieldtypes:select

setValue signature

1
2
setValue(id: string): FieldAPI

getValue signature

1
2
getValue(): SelectField

select field shape

1
2
null | {
    id: string,
    value: string,
}

Reference screenshots

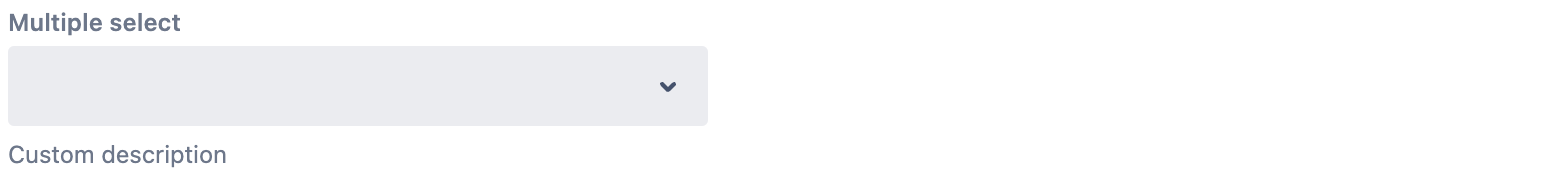

multi select

type: com.atlassian.jira.plugin.system.customfieldtypes:multiselect

setValue signature

1
2
setValue(ids: string[]): FieldAPI

getValue signature

1
2
getValue(): MultiSelectField

multi select field shape

1
2
[
    {
        id: string,
        value: string,
    },
    {
        id: string,
        value: string,
    },
    ...
]

Reference screenshots

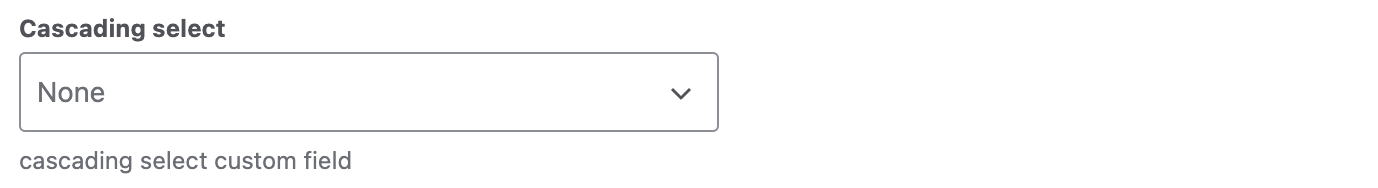

Cascading select

type: com.atlassian.jira.plugin.system.customfieldtypes:cascadingselect

setValue signature

1
2
setValue(value: {
    parentId: string;
    childId: string | null;
} | null): FieldAPI

getValue signature

1
2
getValue(): CascadingSelectField

cascading select field shape

1
2
null | {
    parent: { id: string; value: string };
    child: { id: string; value: string } | null;
}

Reference screenshots

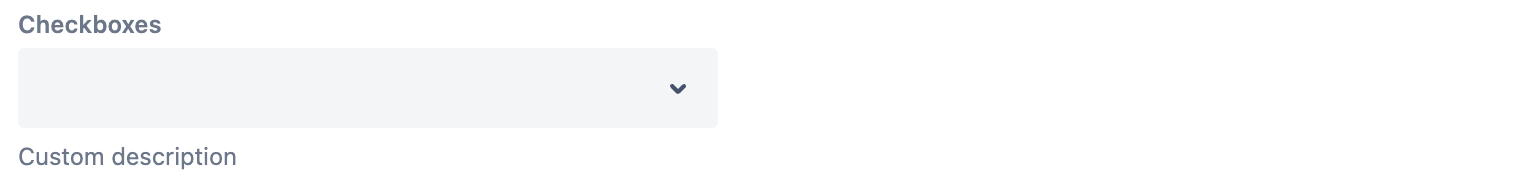

checkboxes

type: com.atlassian.jira.plugin.system.customfieldtypes:multicheckboxes

setValue signature

1
2
setValue(ids: string[]): FieldAPI

getValue signature

1
2
getValue(): MultiCheckboxesField

checkboxes field shape

1
2
[
    {
        id: string,
        value: string,
    },
    {
        id: string,
        value: string,
    },
    ...
]

Reference screenshots

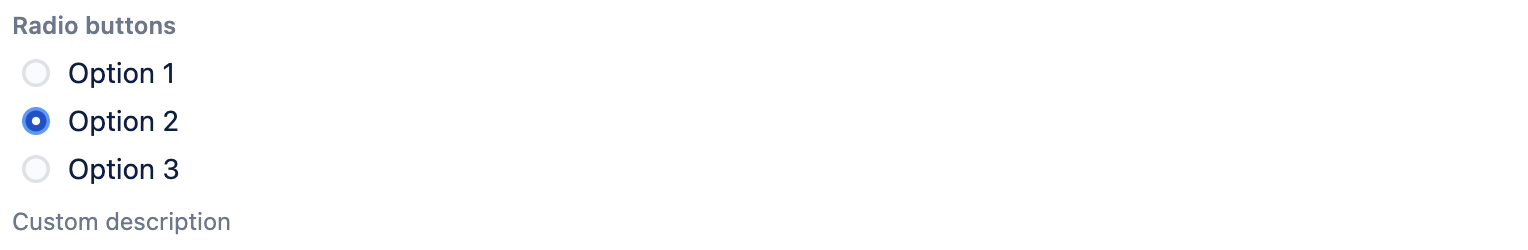

radio buttons

type: com.atlassian.jira.plugin.system.customfieldtypes:radiobuttons

setValue signature

1
2
setValue(id: string | null): FieldAPI

getValue signature

1
2
getValue(): RadioButtonsField

radio buttons field shape

1
2
null | {
    id: string,
    value: string,
}

Reference screenshots

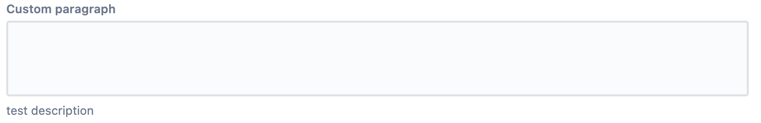

paragraph

type: com.atlassian.jira.plugin.system.customfieldtypes:textarea

setValue signature

1
2
setValue(value: ParagraphField): FieldAPI

getValue signature

1
2
getValue(): ParagraphField

paragraph field shape

1
2
string // Plain-text editor
|
type ADF = {
    version: 1,
    type: 'doc',
    content: Node[]
} // Rich-text editor (ADF format)
// https://developer.atlassian.com/cloud/jira/platform/apis/document/structure/

Reference screenshots

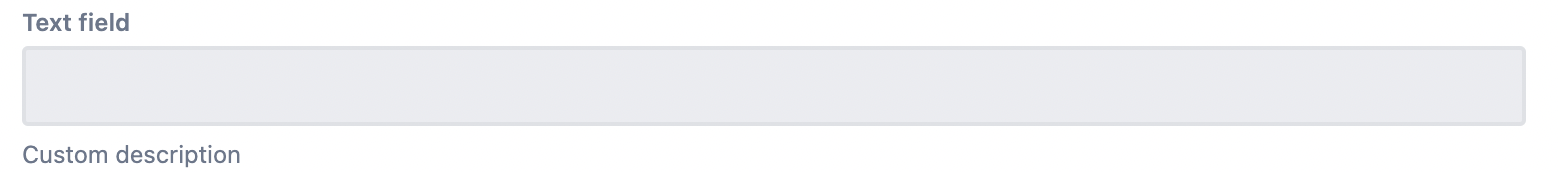

text field

type: com.atlassian.jira.plugin.system.customfieldtypes:textfield

setValue signature

1
2
setValue(value: TextField): FieldAPI

getValue signature

1
2
getValue(): TextField

text field shape

1
2
string // Plain-text editor

Reference screenshots

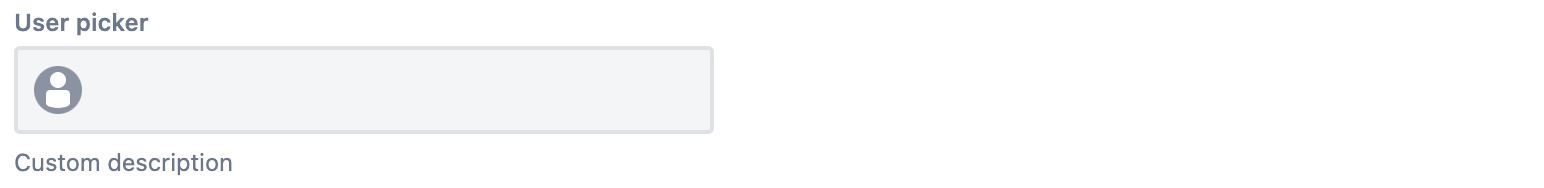

user picker

type: com.atlassian.jira.plugin.system.customfieldtypes:userpicker

setValue signature

1
2
setValue(accountId: string | null): FieldAPI

getValue signature

1
2
getValue(): UserPickerField

user picker field shape

1
2
null | {
    accountId: string,
}

Reference screenshots

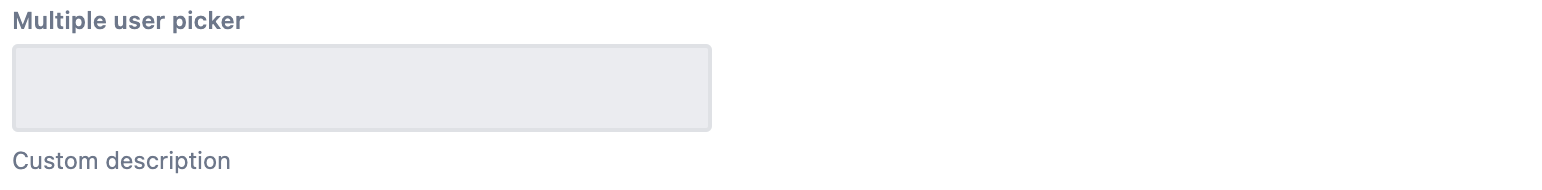

multi user picker

type: com.atlassian.jira.plugin.system.customfieldtypes:multiuserpicker

setValue signature

1
2
setValue(accountId: string[]): FieldAPI

getValue signature

1
2
getValue(): MultiUserPickerField

multi user picker field shape

1
2
[
    {
        accountId: string,
    },
    {
        accountId: string,
    },
    ...
  ]

Reference screenshots

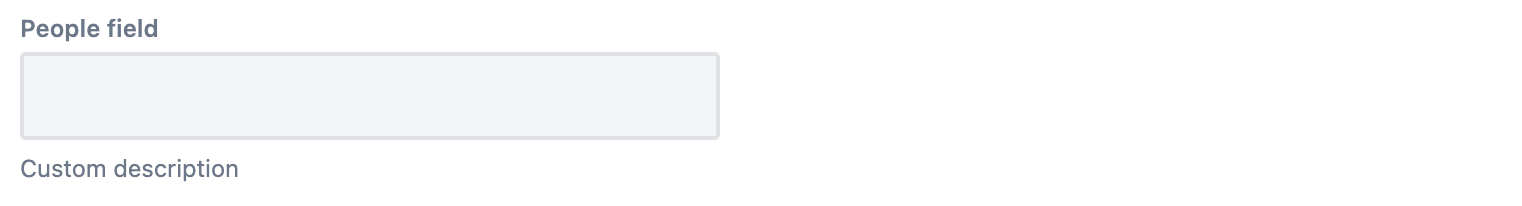

people

type: com.atlassian.jira.plugin.system.customfieldtypes:people

setValue signature

1
2
setValue(accountId: string[]): FieldAPI

getValue signature

1
2
getValue(): PeopleField

people field shape

1
2
[
    {
        accountId: string,
    },
    {
        accountId: string,
    },
    ...
  ]

Reference screenshots

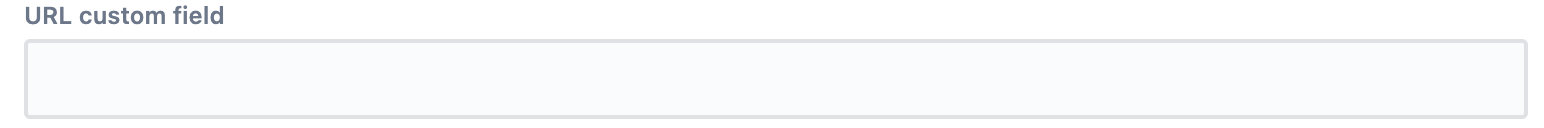

url

type: com.atlassian.jira.plugin.system.customfieldtypes:url

setValue signature

1
2
setValue(url: string): FieldAPI

getValue signature

1
2
getValue(): UrlField

url field shape

1
2
string

Reference screenshots

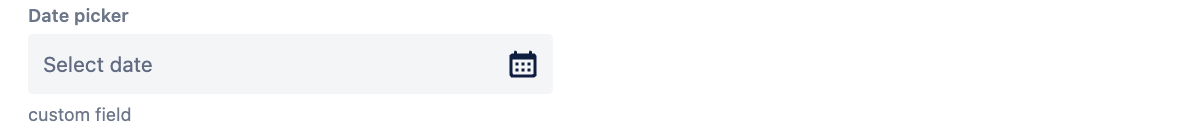

date picker

type: com.atlassian.jira.plugin.system.customfieldtypes:datepicker

setValue signature

1
2
setValue(date: string | null): FieldAPI

getValue signature

1
2
getValue(): DatePickerField

date picker field shape

1
2
string | null

Reference screenshots

date time picker

type: com.atlassian.jira.plugin.system.customfieldtypes:datetime

setValue signature

1
2
setValue(value: string | null): FieldAPI

getValue signature

1
2
getValue(): DatePickerField

date picker field shape

1
2
string | null

Reference screenshots

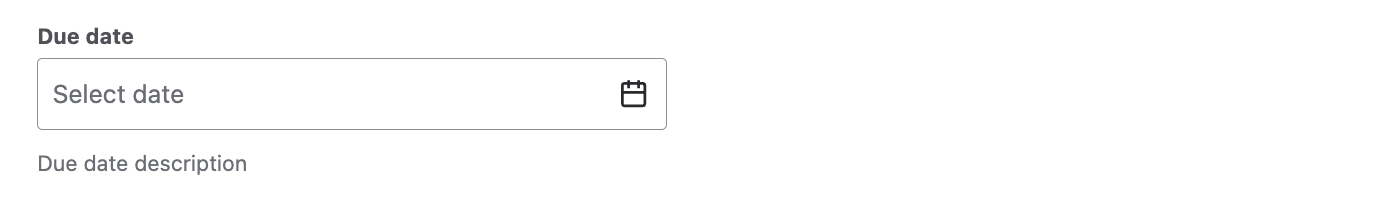

due date

type: duedate

setValue signature

1
2
setValue(date: string | null): FieldAPI

getValue signature

1
2
getValue(): DatePickerField

date picker field shape

1
2
string | null

Reference screenshots

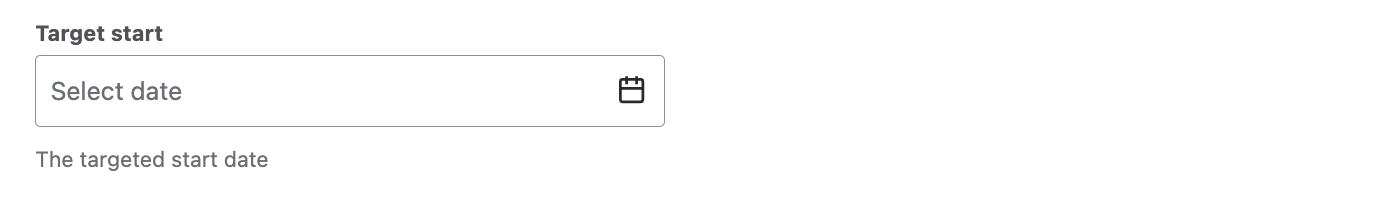

target start

type: com.atlassian.jpo:jpo-custom-field-baseline-start

setValue signature

1
2
setValue(date: string | null): FieldAPI

getValue signature

1
2
getValue(): DatePickerField

date picker field shape

1
2
string | null

Reference screenshots

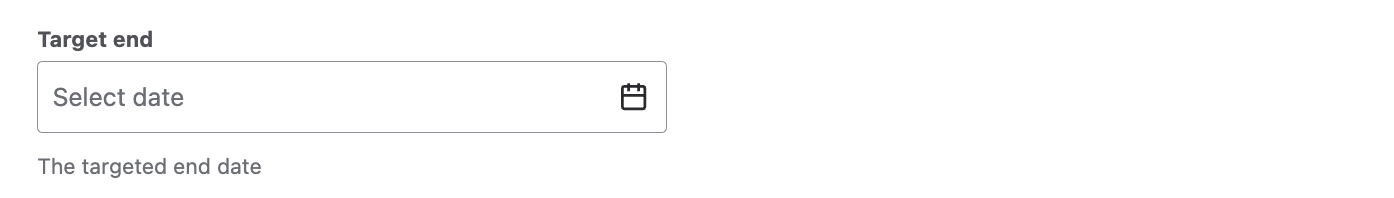

target end

type: com.atlassian.jpo:jpo-custom-field-baseline-end

setValue signature

1
2
setValue(date: string | null): FieldAPI

getValue signature

1
2
getValue(): DatePickerField

date picker field shape

1
2
string | null

Reference screenshots

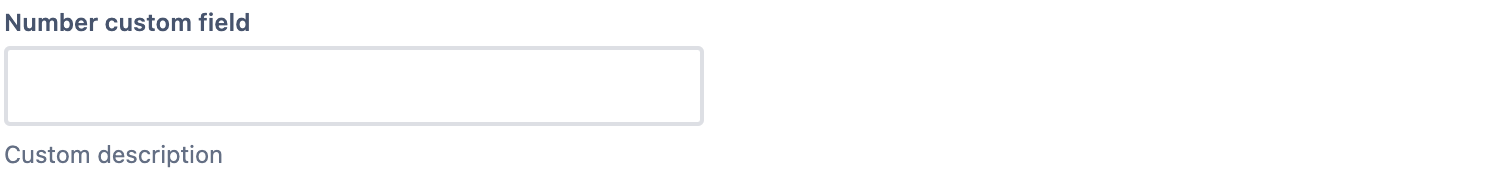

number

type: com.atlassian.jira.plugin.system.customfieldtypes:float

setValue signature

1
2
setValue(value: number | null): FieldAPI

getValue signature

1
2
getValue(): NumberField

number custom field shape

1
2
number | null

Reference screenshots

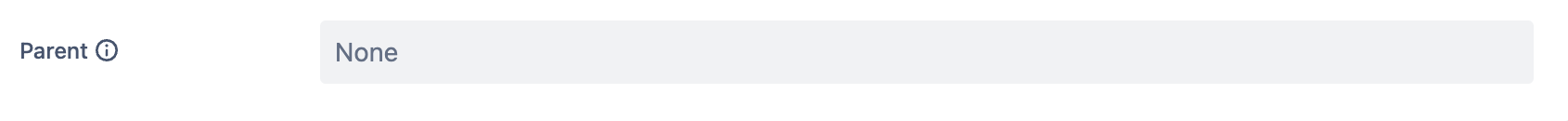

parent

type: parent

setValue signature

1
2
setValue(id: string | null): FieldAPI

getValue signature

1
2
getValue(): ParentField

parent field shape

1
2
{
  id: string,
  key: string,
} | null

Reference screenshot

status

type: status

setValue signature

1
2
setValue(transitionId: string): FieldAPI

getValue signature

1
2
getValue(): StatusField | null

status field shape

1
2
{
  id: string,
  name: string,
}

Reference screenshot

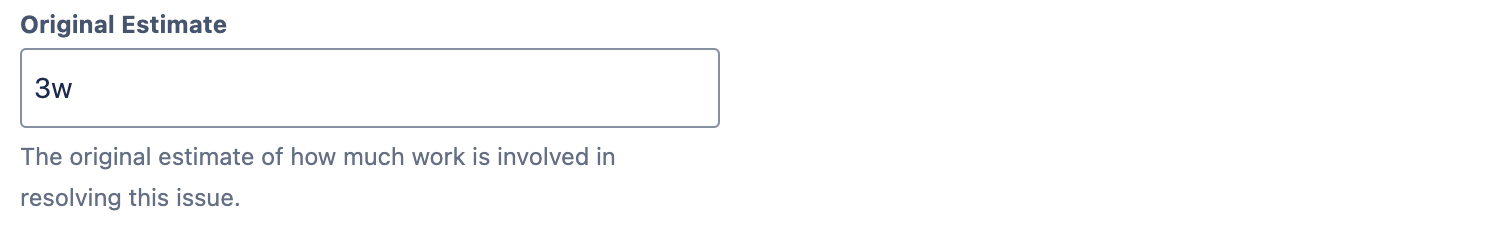

original estimate

type: timeoriginalestimate

setValue signature

1
2
setValue(value: number | null): FieldAPI

getValue signature

1
2
getValue(): OriginalEstimateField

original estimate field shape

1
2
number | null

Reference screenshots

Querying screen tabs

getScreenTabById method signature

1
2
getScreenTabById(<tabId>): ScreenTabAPI | undefined

getScreenTabById method description

Accepts one argument: tabId (string) - the identifier of the screen tab which the app wants to work on.

Returns the ScreenTabAPI object if the tab exists on the GIC or Issue View.

Returns undefined if the screen tab doesn't exist.

Example of usage with a regular screen tab:

1
2
uiModificationsApi.onInit(({ api }) => {
  const { getScreenTabById } = api;
  const tab = getScreenTabById('<identifier>')
  // You can perform operations on a specific screen tab
  // using the ScreenTabAPI here
}, () => [''])

Iterating over screen tabs

getScreenTabs method signature

1
2
getScreenTabs(): ScreenTabAPI[]

getScreenTabs method description

Returns an array of ScreenTabAPI objects with all screen tabs mounted on the current view.

Example of usage:

1
2
uiModificationsApi.onInit(({ api }) => {
  const { getScreenTabs } = api;
  const tabs = getScreenTabs();
  // You can iterate over screen tabs
  // (or access them by index)
  // and perform operations on each
  // screen tab using the ScreenTabAPI here.
}, () => [])

Common ScreenTabAPI

getId

1
2
getId(): string

Returns the screen tab identifier.

setVisible

1
2
setVisible(value: boolean): ScreenTabAPI

Changes tab visibility.

Example:

1
2
tab.setVisible(false);

isVisible

1
2
isVisible(): boolean

Returns true if the tab is currently visible. Returns false otherwise.

focus

1
2
focus(): ScreenTabAPI

Switches the focus to a given screen tab. Automatically puts other visible tabs out of focus.

Example:

1
2
tab.focus();
