When using Connect or external authentication, or when invoking a remote backend from a Forge app using the Forge remote, the external domains that the app communicates with are listed in the remotes
section of the manifest.yml
file, and are referenced by key
.
Property | Type | Required | Description | |
---|---|---|---|---|
key | string | Yes | A key for the remote, which other modules can refer to. Must be unique within the list of remotes and have a maximum of 23 characters. Regex: | |
baseUrl | string | Yes | Base URL of the remote resource. | |
operations | string | No |
Indicates the purpose of the data being egressed. For now, this property only accepts four values:
If a remotes entry contains no operations property, Forge will assume that the app is egressing end-user data to be stored on a remote back end. See Data residency for more information. | |
storage | string | Yes (if operations property contains the storage value) |
Indicates whether you are egressing end-user data to store it on a remote location, through the See Data residency for more information. |
Data residency features will be added to Forge soon. For now, you can start preparing your app to take advantage of these features immediately when they become available. See Data residency for details about these features.
Forge apps that don't contain a remotes
declaration automatically become eligible for PINNED
status. This is because Forge can safely assume that the app is not storing any in-scope End-User Data
on a remote back end.
When an app contains a remotes declaration, Forge will (by default) assume the app is storing
in-scope End-User Data on a remote back end. Storing in-scope End-User Data on a remote back end
will make your app ineligible for PINNED
status.
If your app contains a remotes declaration but does not store in-scope End-User Data on a remote back-end, your app can be eligible for PINNED
status. However, you’ll need to declare this explicitly:
storage
property. If
the data you’re storing remotely isn’t in-scope End-User Data, use the inScopeEUD: false
boolean to indicate this:
1 2remotes: - key: remote-backend baseUrl: "https://backend.example.com" operations: - storage storage: inScopeEUD: false
operations
through the compute
or other
properties:
1 2remotes: - key: remote-backend baseUrl: "https://backend.example.com" operations: - compute - fetch - other
fetch
property:
In this case, your1 2permissions: external: fetch: backend: - remote: remote-backend remotes: - key: remote-backend baseUrl: "https://backend.example.com" operations: - fetch
fetch.backend
list will use the remote back end’s key instead of the actual
URL. You can use other
for instances where you egress data for real-time logging, diagnostics,
and other similar cases. See Permissions
for more information about configuring the fetch

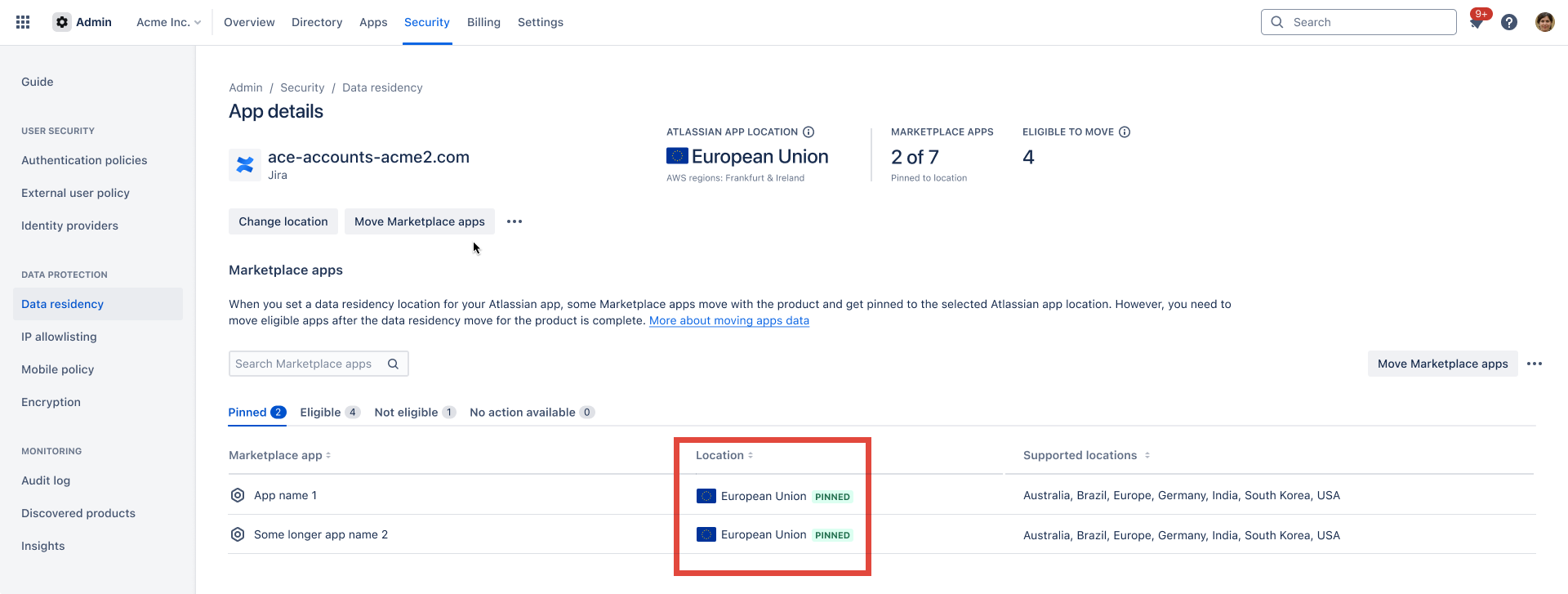

section.In these cases, Forge will be satisfied that your app is not storing in-scope End-User Data on a remote back end. As a result, your app will be eligible for PINNED
status in the admin's Data residency interface. This also means that when your app is installed on a product with the PINNED
status, so will your app:
See Data residency for more information about the PINNED
status (for both products and installed apps).
Manifest file updates that add new remotes
entry or expand an existing remote’s scope will
result in a major version upgrade
of your app upon deployment. This ensures that whenever an app starts egressing data to a new
back end, admins can review and re-consent first before updating. Such manifest file updates
include:
Manifest file update | Description |
---|---|
Adding a new remotes section |
The app uses a new remote back end, and admins need to be explicitly notified whenever this happens. |
Changing the baseURL of an existing remotes entry | The app now technically egresses data to a new remote back end. |
Setting inScopeEUD: true to the storage property of an existing remotes entry | The app is now storing in-scope End-User Data on a remote back end. |
Removing all the operations and storage properties of an existing remotes entry | The remote back end no longer states any purpose for the data being egressed. As a result, Forge will automatically assume that the app could be egressing in-scope End-User Data to the remote back end for any purpose (including storage). |
Adding a new purpose to an operations property | The remote back end’s scope is now expanded, since it is being used for an additional purpose. |
For now, only the following changes trigger a major version upgrade:
remotes
sectionbaseURL
of an existing remotes
entryAll other manifest file updates from this list will only result in a minor upgrade until further notice.
As such, if you are interested in making your app eligible for PINNED
status later, we recommend
that you update your manifest file as needed now.
Removing a remotes entry or any update that decrease an existing remote’s scope will only result in a minor upgrade. Such manifest file updates include:
Manifest file update | Description |
---|---|
Changing the storage property of a remotes entry from
inScopeEUD: true to
inScopeEUD: false | The app previously stored in-scope End-User Data on a remote back end, but now it doesn’t. This reduces the scope of the back end. |
Removing one or more (but not all) purposes from an operations property | The remote back end’s scope is now reduced, as it is no longer being used for a specific purpose. |
Moving a URL from a fetch declaration to an existing remotes section | The remote back end hasn’t changed in scope, it is now simply declared in a different way. See Data residency eligibility and Fetch for related information. |
Minor upgrades are automatic, and will not require any action by users or admins.
The following example shows two remotes (remote-backend
and loggingserver
) that do not
egress in-scope End-User Data to be stored remotely:
1 2permissions: scopes: - "storage:app" external: fetch: backend: - remote-backend remotes: - key: remote-backend baseUrl: "https://backend.example.com" operations: - storage - fetch storage: inScopeEUD: false - key: loggingserver baseURL: "https://logging.example.com" operations: - other
