Project sidebar

The Jira Cloud project sidebar implements the Container pattern for Atlassian product navigation. It consists of the following sections:

  • Container title: In Jira Cloud this is the name of the current project
  • Views: In Jira Cloud these are different ways to view issues within the project, including the issue navigator, boards, backlogs, queues, and more.
  • Settings link: A link to the project settings area for that project

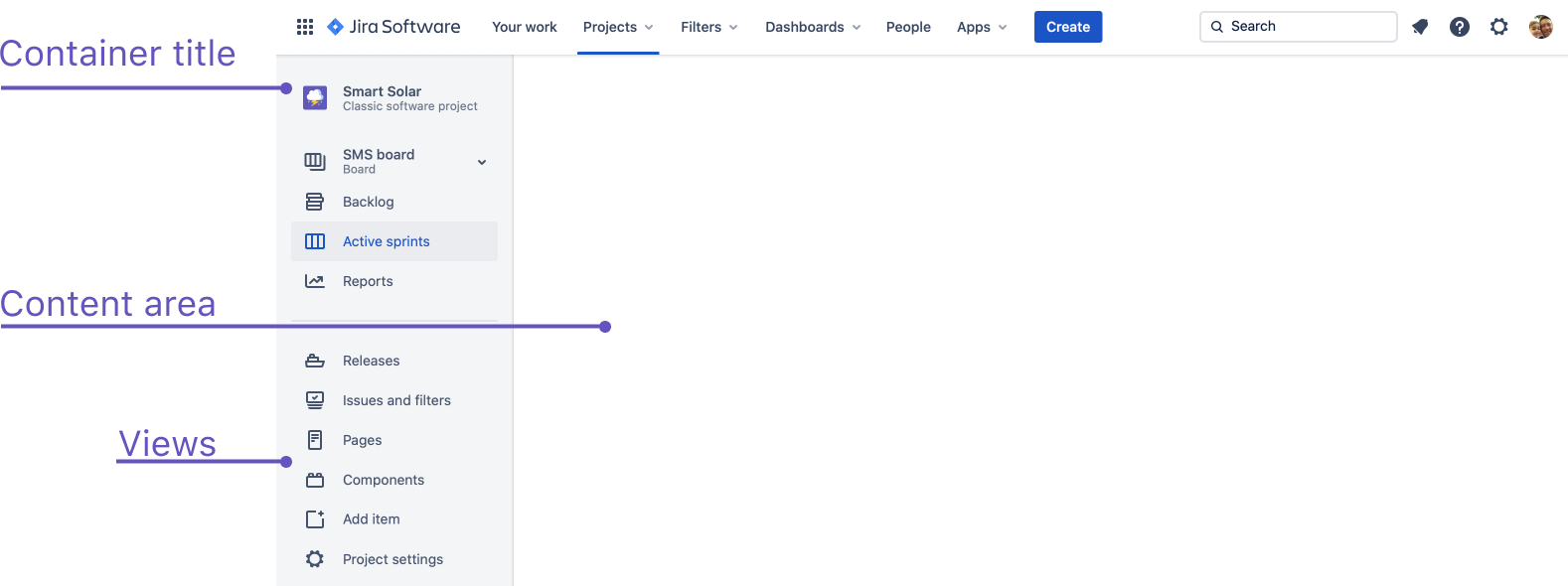

project navigation overview

We strongly encourage apps to conform to Jira's project-centric model. This means your app should primarily present information that is relevant to the specific project in which a user is working. The goal of Jira's project-centric model is to make Jira's structure understandable to every user, by simplifying the navigation of a Jira projects.

If your app adds a view to the Jira project sidebar, it should not take the user out of the context of the current project. Rather, it should render content from your app, or a view defined by your app, that makes sense in the current project context.

Instructions

Add your link to the project sidebar as a project page. You can refer to the project page documentation for the full list of available properties, but pay special attention to the following:

  • url: The URL to your app's actual page content that you want rendered in the Content area. You should always include the {project.key} context parameter in this URL so that your app can provide data with the correct project context.
  • name: See the design guidelines below.
  • iconUrl: The URL to your link's icon file located on your app's server. Please follow the icon guidelines below.
  • weight: Defines the order in which app links appear in the Views area.

Sample descriptor JSON

1
2
3
4
5
6
7
8
9
10
11
12
13
"modules": {
    "jiraProjectPages": [
        {
            "key": "your-module-key",
            "name": {
                "value": "My project page"
            },
            "url": "/helloworld.html?projectKey=${project.key}",
            "iconUrl": "/images/icon.png",
            "weight": 1
        }
    ]
}

Design guidelines

Label

  • The label should unambiguously describe what the app does.
  • The label should be a noun, not a verb.
  • US English spelling and sentence case.
  • Don't use your company, brand or product name, unless it also explicitly calls out the functionality of your app. Why? It can be confusing to new users or any user who isn't familiar with your brand, particularly when multiple apps are installed. Plus, it doesn't fit with the default menu items.

Icon

Using web items to add app links to Jira Cloud project sidebar

Add your link to the project sidebar as a web item. You can refer to the web item documentation for the full list of available properties, but pay special attention to the following:

  • location: For the project sidebar, the location should be jira.project.sidebar.plugins.navigation
  • url: The URL should follow the pattern "/projects/{project.key}?selectedItem=$YOUR-APP-KEY__$WEB-PANEL-KEY" where $WEB-PANEL-KEY is the key of your app's corresponding web panel (see step 2 below)
  • context: This should always be product
  • name: See the design guidelines below.

Step 2: Define your app's content

Provide your app's content as a web panel, which is referenced in the url property in the web item from step 1. Like in step 1, you can refer to the web panel documentation for all available properties, but pay special attention to the following:

  • location: The location value should follow the pattern "$YOUR-APP-KEY__$WEB-PANEL-KEY" where $WEB-PANEL-KEY is the key of your app's web panel
  • url: The URL to your app's actual page content that you want rendered in the content area. You should always include the {project.key} context parameter in this URL so that your app can provide data with the correct project context.

Sample descriptor JSON

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
"modules": {
	"webItems": [
	{
		"location": "jira.project.sidebar.plugins.navigation",
		"key": "connect-provided-link-to-panel",
		"url": "/projects/{project.key}?selectedItem=com.example.myapp__connect-provided-web-panel",
		"context": "product",
		"name": {
			"value": "My Web Item"
		}
	}
	],
	"webPanels" : [
	{
		"key": "connect-provided-web-panel",
		"url": "/helloworld.html?pkey={project.key}",
		"location": "com.example.myapp__connect-provided-web-panel",
		"name": {
			"value": "My Web Panel"
		}
	}
	]
}
