Issue view UI locations

The most common location to add content from your app is on Jira's issue view. There are two general types of locations for your content on the issue view page.

The new Jira issue view


We're currently rolling out a new issue view for Jira Cloud with new issue view extension points. Take a look at the new issue view UI locations page to find out more and get started with the new design.

You can add web items as actions that the user takes on an issue. This is ideal for triggering dialogs provided by your app that allow users to take action on the issue, supported by your app. Actions are also great for linking the Jira issue to external content that may live outside of Jira, or even creating new content like a diagram that you then attach to the issue.

The other type of location is a panel, which is used to provide content from your app relevant to that issue. This might be external content, or a special visualization of content stored within Jira.

Issue action locations

Issue actions, such as sharing an issue, exporting an issue, and more, are implemented via buttons at the top right of the issue view. You can extend issue actions either by adding a new web item next to the issue actions, or by inserting a new web section or web item in the more actions (•••) menu.

For web items:

  • jira.issue.tools: Add a button in the issue actions area
  • Ellipsis menu locations:
    • operations-top-level
    • operations-work
    • operations-attachments
    • operations-voteswatchers
    • operations-subtasks
    • operations-operations
    • operations-delete

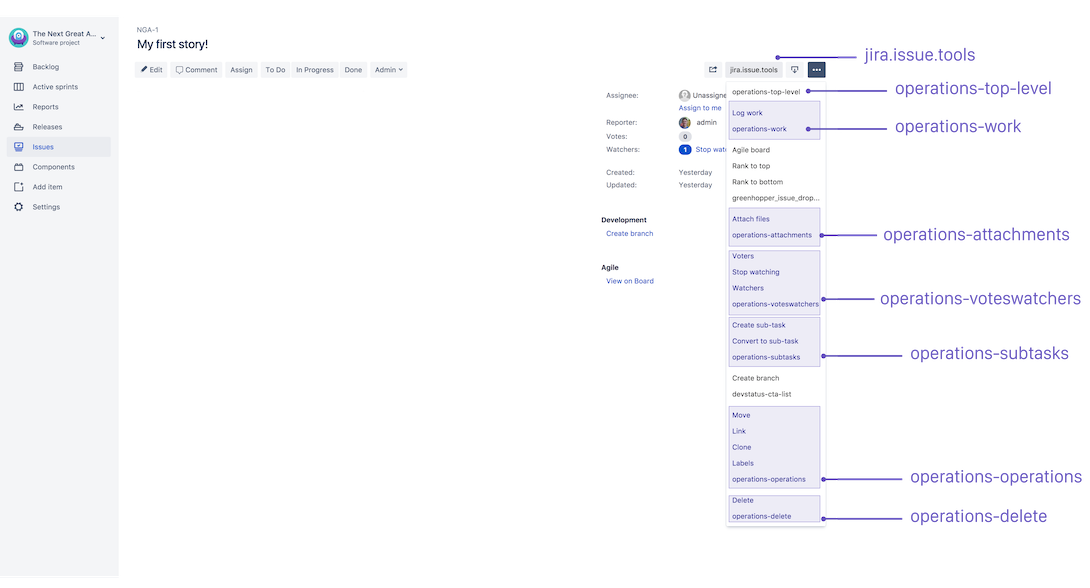

Issue actions locations

Sample descriptor JSON

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
...
"modules": {
    "webItems": [
        {
            "key": "example-tools-item",
            "location": "operations-operations",
            "weight": 10,
            "name": {
                "value": "Example app link"
            },
            "url": "/example-section-link"
        }
    ]
}
...

Properties

The properties required for this location are the standard ones defined in the documentation for web items.

Panel content locations

You can also define web panels to render larger pieces of content on the issue view page. These panels use the web panel module and are available on either the right or left side of the page. We recommend that you follow Jira's standard convention, that information on the right hand side provides context for the issue (more information, links to relevant content, other work associated with the issue). Panels on the left side should provide content that you expect the user to consider part of the body of work that the issue itself represents.

Available locations

For web panels:

  • atl.jira.view.issue.left.context
  • atl.jira.view.issue.right.context

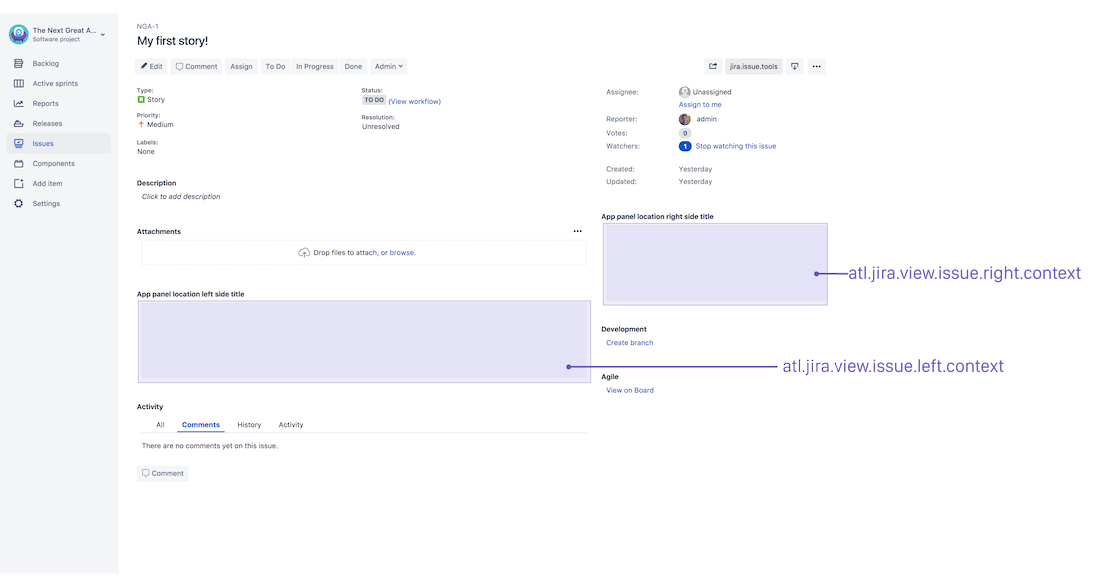

Issue panel locations

Sample JSON

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
...
"modules": {
    "webPanels": [
        {
            "key": "example-issue-left-panel",
            "location": "atl.jira.view.issue.left.context",
            "name": {
                "value": "App panel location left side title"
            },
            "url": "/example-issue-left-panel"
        },
        {
            "key": "example-issue-right-panel",
            "location": "atl.jira.view.issue.right.context",
            "name": {
                "value": "App panel location right side title"
            },
            "url": "/example-issue-right-panel"
        }
    ]
}
...

Properties

The properties required for this location are the standard ones defined in the documentation for web panels.
