Adding menu items to Jira

Applicable:

Jira 7.0.0 and later.

Level of experience:

Beginner. This is a good tutorial to try if you have never developed an app before.

Time estimate:

It should take you approximately half an hour to complete this tutorial.

Overview of the tutorial

This tutorial shows you how to write a simple app that adds a new menu to Jira header. The menu includes two menu items that link to external web pages. This app is simple but useful. Using this app you can link from Jira header to websites that are important for your organization, such as your company's intranet or external website.

You can add UI elements to Jira by adding module definitions to the app descriptor. In this tutorial, you'll add the following modules:

  • A web section to define the new tab (section) in your Jira top navigation bar.
  • A number of web items to add the links and menu items to the new section.

Your completed app will consist of the following components:

  1. An app descriptor to enable the app in Jira.
  2. The required plugin modules that define the new menu section and menu items.

This app does not need any Java code because the plugin modules provided by the Atlassian Plugin Framework provide all the functionality required.

About these instructions

You can use any supported combination of operating system and IDE to create this app. These instructions were written using IntelliJ IDEA 2017.3 on macOS Sierra. If you use another operating system or IDE combination, you should use the equivalent operations for your specific environment.

This tutorial was last tested with Jira 7.7.1 using the Atlassian SDK 6.3.10.

Before you begin

To complete this tutorial, you need to know the following:

  1. The basics of Java development: classes, interfaces, methods, how to use the compiler, and so on.
  2. How to create an Atlassian plugin project using the Atlassian Plugin SDK.
  3. The basics of using and administering Jira.

App source

We encourage you to work through this tutorial. If you want to skip ahead or check your work when you are finished, you can find the app source code on Atlassian Bitbucket.

To clone the repository, run the following command:

1
2
git clone https://bitbucket.org/atlassian_tutorial/jira-menu-items-plugin.git

Alternatively, you can download the source as a ZIP archive

Step 1. Create the app project

In this step, you'll use an atlas- command to generate stub code for your app.

  1. Set up the Atlassian Plugin SDK and build a project if you did not do that yet.

  2. Open a Terminal and navigate to the directory where you would like to keep the project code.

  3. To create an app skeleton, run the following command:

    1
    2
    atlas-create-jira-plugin

  4. To identify your app, enter the following information when prompted.

    group-id

    com.atlassian.plugins.tutorial

    artifact-id

    jira-menu-items

    version

    1.0-SNAPSHOT

    package

    com.atlassian.plugins.tutorial

  5. Confirm your entries when prompted. The SDK generates the initial app project files in a directory named jira-menu-items.

  6. Navigate to the directory created in the previous step.

  7. Delete the test directories.

    Setting up testing for your app isn't part of this tutorial. To delete the generated test skeleton, run the following commands:

    1
    2
    rm -rf ./src/test/java
    rm -rf ./src/test/resources/

  8. Delete the unneeded Java class files.

    1
    2
    rm -rf ./src/main/java/com/atlassian/plugins/tutorial/*

  9. Import project in your favorite IDE.

Step 2. Review and tweak the generated stub code

It is a good idea to familiarize yourself with the project configuration file known as the POM (that is, Project Object Model definition file).

In this step, you'll review and tweak the pom.xml file.

The POM is located at the root of your project and declares the project dependencies and other information.

  1. Navigate to the root folder of your app and open the pom.xml file.

  2. Add your company or organization name and your website URL to the organization element (the following code blocks show how it looks in plain text):

    1
    2
    <organization>
        <name>Example Company</name>
        <url>http://www.example.com/</url>
    </organization>

  3. To add a meaningful description for your app, update the project description element. For example:

    1
    2
    <description>This plugin adds company links to a new menu in the JIRA header.</description>

  4. Save the file.

  5. Your stub code contains an app descriptor file called atlassian-plugin.xml. This is an XML file that identifies the app to the host application (that is, Jira) and defines the required app functionality.

    Open the atlassian-plugin.xml file.

    You should see something like this (comments removed):

    1
    2
    <?xml version="1.0" encoding="UTF-8"?>
    <atlassian-plugin key="${atlassian.plugin.key}" name="${project.name}" plugins-version="2">
        <plugin-info>
            <description>${project.description}</description>
            <version>${project.version}</version>
            <vendor name="${project.organization.name}" url="${project.organization.url}"/>
            <param name="plugin-icon">images/pluginIcon.png</param>
            <param name="plugin-logo">images/pluginLogo.png</param>
        </plugin-info>
        <!-- add our i18n resource -->
        <resource type="i18n" name="i18n" location="jira-menu-items"/>
        <!-- add our web resources -->
        <web-resource key="jira-menu-items-resources" name="jira-menu-items Web Resources">
            <dependency>com.atlassian.auiplugin:ajs</dependency>
            <resource type="download" name="jira-menu-items.css" location="/css/jira-menu-items.css"/>
            <resource type="download" name="jira-menu-items.js" location="/js/jira-menu-items.js"/>
            <resource type="download" name="images/" location="/images"/>
            <context>jira-menu-items</context>
        </web-resource>
    </atlassian-plugin>


Step 3. Start Jira instance

In this step, you'll start Jira and see what we've got so far.

  1. In Terminal window, navigate to the jira-menu-items directory created by the SDK.

  2. Run the following the SDK command:

    1
    2
    atlas-run


    This command starts a Jira instance and loads your app. In the output, look for a line that looks something like this:

    1
    2
    [INFO] jira started successfully in 134s at http://localhost:2990/jira


    It tells you that Jira instance has been started and shows you the Jira home page URL.

  3. In a browser, go to Jira home page that is indicated in the Terminal output.

  4. Log in using the default admin/admin username and password combination.

  5. When prompted for the type of project to create, either create a project or click Cancel. Jira prompts you to create a new project like this only when you start a new instance.

  6. At the top right of the page, click cog icon > Add-ons

  7. Click Manage Add-ons from the left menu.

  8. In the User-installed Add-ons list, look for the jira-menu-items app that you created. Alternatively, enter the name in the filter field to find it quickly.

  9. Click the app in the list to expand its details view.
    The details of your app appear.

The app worked, but so far it doesn't do much. You will enhance it in the next steps.

Leave Jira running in browser for now.

Step 4. Add the plugin modules to the app descriptor

In this step, you will add the new section and menu items to your app descriptor as follows.

  1. Navigate to src/main/resources/ and open the atlassian-plugin.xml file.

  2. Add the following web section as a child element to atlassian-plugin:

    1
    2
    <web-section name="My Links Main Section" i18n-name-key="my-links-main-section.name" key="my_links_section"
                    location="my_links_link" weight="10"/>


    This defines the top-level section where you will put all menu items and links.

    The weight attribute determines the order in which web items appear. Items are displayed top to bottom or left to right in order of ascending weight. The lightest weight is displayed first, the heaviest weights sink to the bottom.

    The weights for most applications' system sections start from 100, and the weights for the links generally start from 10. The weight is incremented by 10 for each in sequence so that there is ample space to insert your own sections and links.

  3. Add the following web-item:

    1
    2
    <web-item key="my_links_link" name="Link on My Links Main Section" section="system.top.navigation.bar" weight="47">
        <label>My Company</label>
        <link linkId="my_links_link">http://www.atlassian.com</link>
    </web-item>


    This defines the link on the top-level section with text "My Company". We have pointed the link at the company website. The linkId is required and must be the same as the location element of the web-section. It also provides an XML ID for the link being generated.

  4. Add the following web-item:

    1
    2
    <web-item key="website_link" name="Company Web Site" section="my_links_link/my_links_section" weight="10">
        <label>Web Site</label>
        <link linkId="website_link">http://www.atlassian.com</link>
    </web-item>


    This creates a single menu item with text "Web Site" that links to your company website.

  5. Add the following web-item:

    1
    2
    <web-item key="documentation_link" name="Documentation Web Site" section="my_links_link/my_links_section" weight="10">
        <label>Documentation</label>
        <link linkId="documentation_link">http://confluence.atlassian.com</link>
    </web-item>


    This creates a menu item labeled "Documentation" that links to your documentation website.

  6. Save the file.

    Your atlassian-plugin.xml file should look something like this:

    1
    2
    <?xml version="1.0" encoding="UTF-8"?>
    <atlassian-plugin key="${atlassian.plugin.key}" name="${project.name}" plugins-version="2">
        <plugin-info>
            <description>${project.description}</description>
            <version>${project.version}</version>
            <vendor name="${project.organization.name}" url="${project.organization.url}"/>
            <param name="plugin-icon">images/pluginIcon.png</param>
            <param name="plugin-logo">images/pluginLogo.png</param>
        </plugin-info>
        <!-- add our i18n resource -->
        <resource type="i18n" name="i18n" location="jira-menu-items"/>
        <!-- add our web resources -->
        <web-resource key="jira-menu-items-resources" name="jira-menu-items Web Resources">
            <dependency>com.atlassian.auiplugin:ajs</dependency>
            <resource type="download" name="jira-menu-items.css" location="/css/jira-menu-items.css"/>
            <resource type="download" name="jira-menu-items.js" location="/js/jira-menu-items.js"/>
            <resource type="download" name="images/" location="/images"/>
            <context>jira-menu-items</context>
        </web-resource>
        <web-section name="My Links Main Section" i18n-name-key="my-links-main-section.name" key="my_links_section"
                    location="my_links_link" weight="10"/>
        <web-item key="my_links_link" name="Link on My Links Main Section" section="system.top.navigation.bar" weight="47">
            <label>My Company</label>
            <link linkId="my_links_link">http://www.atlassian.com</link>
        </web-item>
        <web-item key="website_link" name="Company Web Site" section="my_links_link/my_links_section" weight="10">
            <label>Web Site</label>
            <link linkId="website_link">http://www.atlassian.com</link>
        </web-item>
        <web-item key="documentation_link" name="Documentation Web Site" section="my_links_link/my_links_section"
                  weight="10">
            <label>Documentation</label>
            <link linkId="documentation_link">http://confluence.atlassian.com</link>
        </web-item>
    </atlassian-plugin>


Step 5. Reload your app and test it

  1. In a Terminal window, run the atlas-package command that triggers QuickReload.

  2. Wait until Jira reinstalls your app. In Terminal output you will see many lines concluding with some thing like this:

    1
    2
    [INFO] [talledLocalContainer]     Quick Reload Finished (791 ms)

  3. Refresh your browser page to see changes.

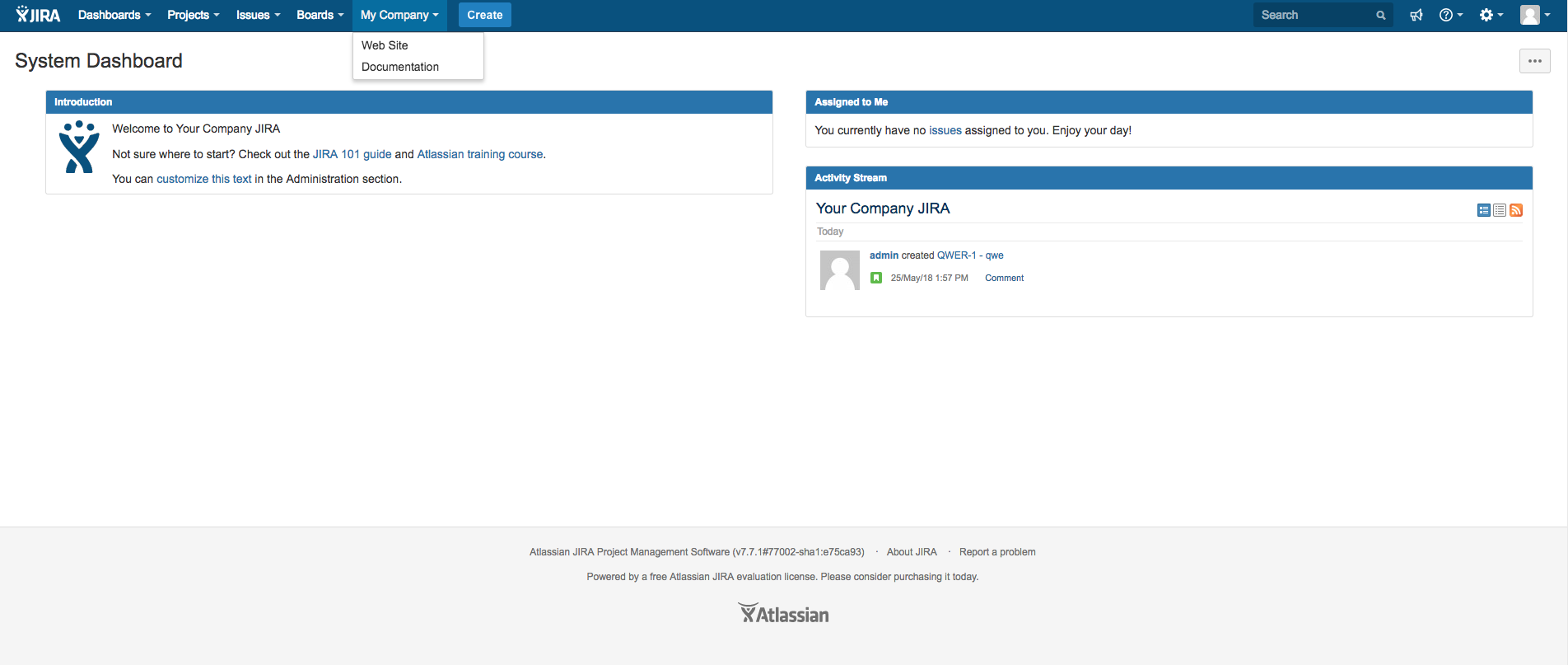

  4. Notice the new menu in the header. Clicking on the entries takes you to the URLs you entered.

Congratulations, that's it!

Have a treat!

Next steps

When you finish developing and testing your app, you can install it into your company's Jira instance so that the new menu items are available for other people to use.

Your app JAR file is located at target\jira-menu-items-1.0.jar. You can install the app using the Universal Plugin Manager
