Progress bar

To add the ProgressBar component to your app:

1
2
import { ProgressBar } from '@forge/react';

Description

A progress bar communicates the status of a system process.

Props

Name	Type	Required	Description
`appearance`	`"default" \| "success" \| "inverse"`	No	Visual style of the progress bar.
`ariaLabel`	`string`	No	Label associated with the progress bar, read by screen readers.
`isIndeterminate`	`boolean`	No	Shows the progress bar in an indeterminate state when true.
`value`	`number`	No	Sets the value of the progress bar, between 0 and 1 inclusive.

Examples

Appearance

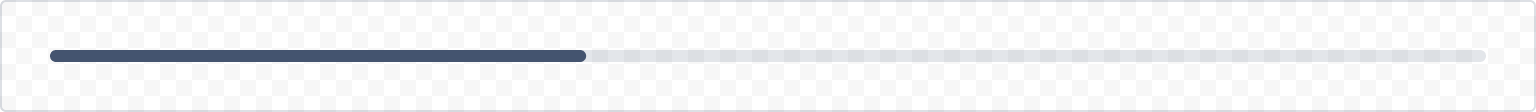

Default

The default appearance of a progress bar.

Example image of a progress bar with default appearance

1
2
const ProgressBarDefaultExample = () => {
  return <ProgressBar ariaLabel="Done: 3 of 10 issues" value={0.3} />;
};

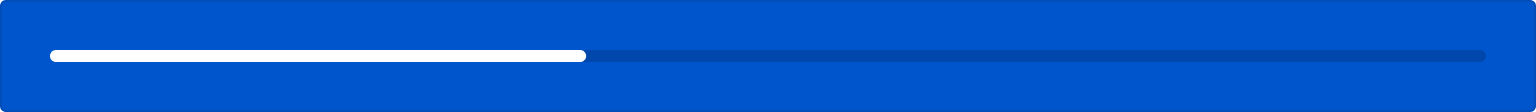

Inverse

Example image of a progress bar with inverse appearance

1
2
const ProgressBarInverseExample = () => {
  return (
    <Box backgroundColor="color.background.information.bold">
      <ProgressBar
        appearance="inverse"
        ariaLabel="Done: 6 of 10 issues"
        value={0.6}
      />
    </Box>
  );
};

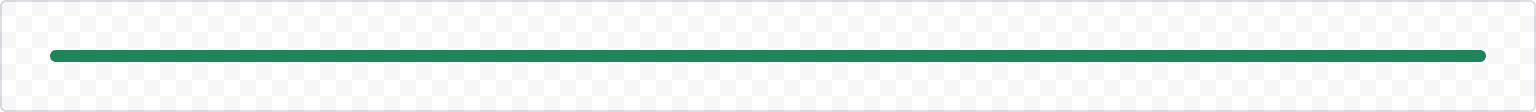

Success

Success indicates the completion of a process.

Example image of a progress bar with success appearance

1
2
const ProgressBarSuccessExample = () => {
  return (
    <ProgressBar
      appearance="success"
      ariaLabel="Done: 10 of 10 issues"
      value={1}
    />
  );
};

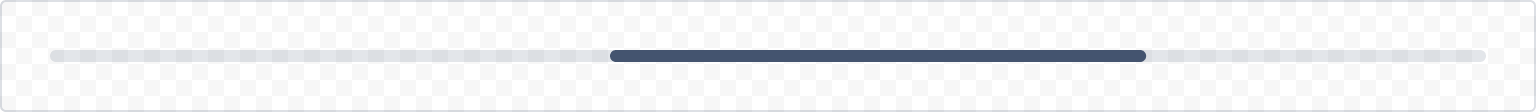

Indeterminate

Indeterminate progress bars display movement along the container until the process is finished.

Example image of a progress bar with indeterminate appearance

1
2
const ProgressBarIndeterminateExample = () => {
  return <ProgressBar ariaLabel="Loading issues" isIndeterminate />;
};

Accessibility considerations

When using the ProgressBar component, we recommend keeping the following accessibility considerations in mind:

Use the progress bar component as a loading indicator or to communicate the status of a system process.
Use helper text with a progress bar if the process is complex or has a long wait time. This lets users know what sub-processes are taking place.
Use a success state when the actions required to continue have been fulfilled.
