Create a quiz app using UI Kit

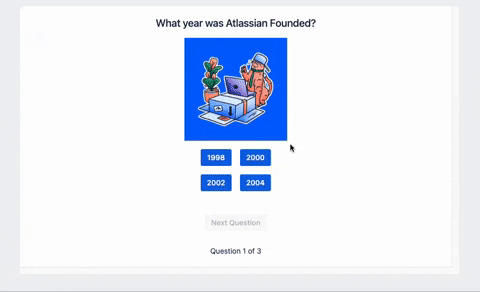

This tutorial describes how you can use UI Kit layout components to make a playable quiz in Confluence. You’ll be using heading, image, button, text, inline, and stack to build the user interface. The purpose of this tutorial is to get familiar with using UI Kit components, so it is a purely frontend app.

A gif is added to a Confluence page

Before you begin

This tutorial assumes you're already familiar with the basics of Forge development. If this is your first time using Forge, see Getting started first.

To complete this tutorial, you need the latest version of the Forge CLI. To update your CLI version, run npm install -g @forge/cli@latest on the command line.

Set up a cloud developer site

An Atlassian cloud developer site lets you install and test your app on Confluence and Jira products set up for you. If you don't have one yet, set it up now:

  1. Go to http://go.atlassian.com/cloud-dev and create a site using the email address associated with your Atlassian account.
  2. Once your site is ready, log in and complete the setup wizard.

You can install your app to multiple Atlassian sites. However, app data won't be shared between separate Atlassian sites, products, or Forge environments.

The limits on the numbers of users you can create are as follows:

  • Confluence: 5 users
  • Jira Service Management: 1 agent
  • Jira Software and Jira Work Management: 5 users

The Atlassian Marketplace doesn't currently support cross-product apps. If your app supports multiple products, you can publish two separate listings on the Marketplace, but your app won't be able to make API calls across different products and instances/installations.

Step 1: Create your app

Make sure you run forge login before you creating your app. For more information on how to log in to Forge, see Log in with an Atlassian API token.

Create an app using a template.

  1. Navigate to the directory where you want to create the app.

  2. Create your app by running:

    1
    2
    forge create

  3. Enter a name for the app. For example, quiz-app.

  4. Select the UI Kit category from the list.

  5. Select the confluence-global-page template from the list.

  6. Change to the app subdirectory to see the app files

    1
    2
    cd quiz-app


Step 2: Configure the app manifest

This app uses a Confluence globalPage module. The confluence:globalPage module displays content in place of a Confluence page.

  1. In the app’s top-level directory, open the manifest.yml file.
  2. Change the key under confluence:globalPage to quizapp-global-page.
  3. Change the title under confluence:globalPage to QuizApp.
  4. Add image egress permissions to whitelist a GIPHY image.
1
2
    permissions:
        external:
            images:
              - 'https://media.giphy.com'

Your manifest file should look like this:

1
2
modules:
  confluence:globalPage:
    - key: quizapp-global-page
      resource: main
      render: native
      title: QuizApp
      route: global-page
resources:
  - key: main
    path: src/frontend/index.jsx
permissions:
  external:
    images:
      - https://media.giphy.com
app:
  id: ari:cloud:ecosystem::app/<YOUR_APP_ID>

See Manifest to learn more about the manifest file.

Step 3: Add a local questions data file

For the purposes of this tutorial, we will only be fetching questions locally from a .js file. In the src directory, create the data folder, and then create questions.js under it. Your file structure should be, src/data/questions.js. The question set will be an array of objects, each having a question, image?, options, and optionally, a correctAnswer key if you also want to add further notes to be displayed to the user.

1
2
export const QuestionSet = [
    {
      question: "What year was Atlassian Founded?",
      image: "https://media.giphy.com/media/dwtX3iozeZCoVcyBVu/giphy.gif",
      options:[
        { option: "1998", isCorrect: false },
        { option: "2000", isCorrect: false },
        { option: "2002", isCorrect: true },
        { option: "2004", isCorrect: false },
      ],
      correctAnswer: "2002",
    },
    {
      question: "How many office locations are there at Atlassian?",
      image: "https://media.giphy.com/media/xUOwGj1jwTZq5Kh3Ko/giphy.gif",
      options:[
        { option: "6", isCorrect: false },
        { option: "9", isCorrect: false },
        { option: "13", isCorrect: true },
        { option: "18", isCorrect: false },
      ],
      correctAnswer: "13. San Francisco, Austin, Mountain View, New York, Sydney x2, Bengaluru, Yokohama, Amsterdam, Taguig!",
    },
    {
      question: "How many major versions of Confluence are there?",
      options:[
        { option: "5", isCorrect: false },
        { option: "8", isCorrect: true },
        { option: "11", isCorrect: false },
        { option: "14", isCorrect: false },
      ],
      correctAnswer: "8. You can check out https://confluence.atlassian.com/doc/confluence-release-notes-327.html for all versions",
    },
  ];

Step 4: Add a basic user interface

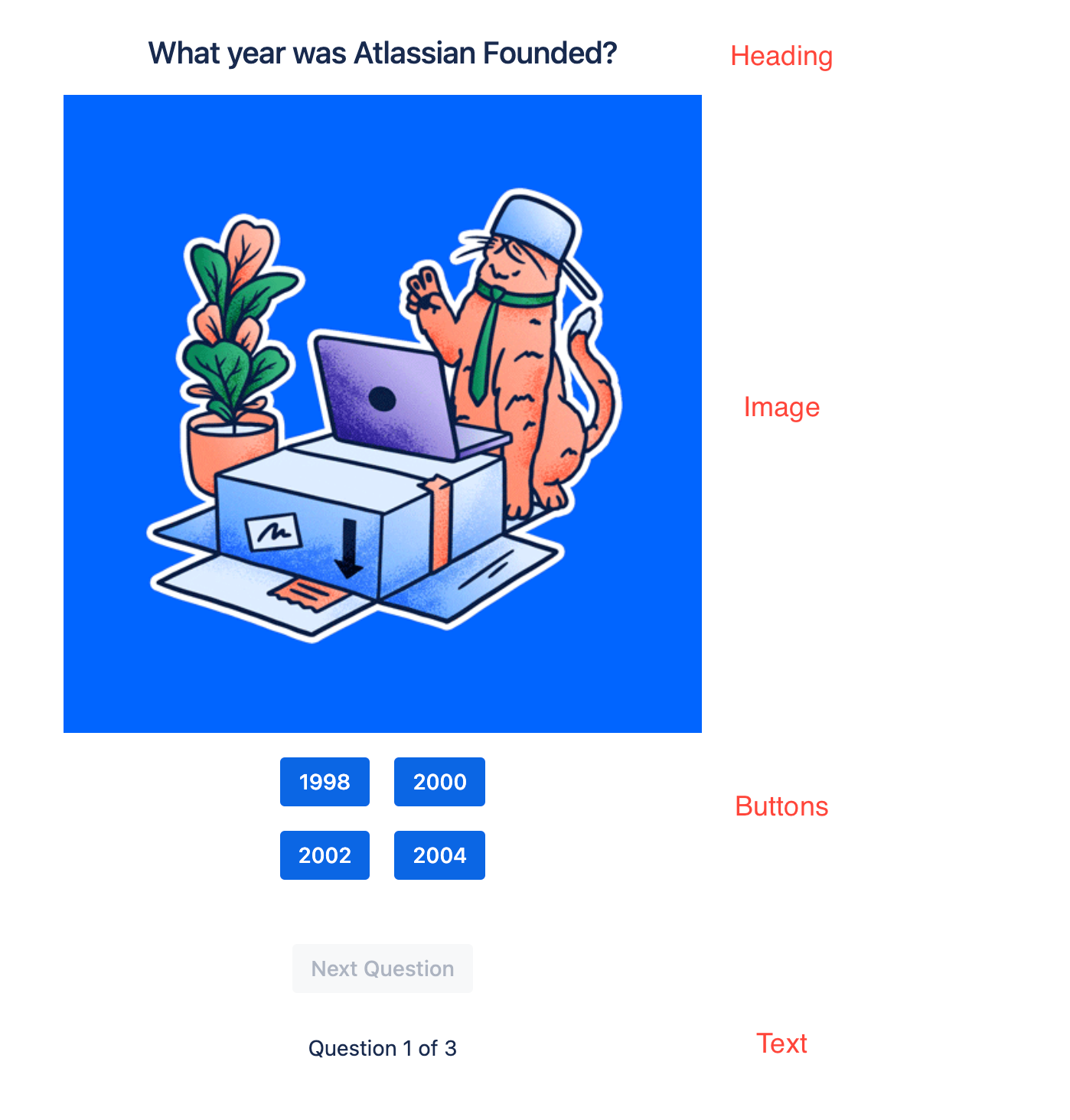

We are going to build a basic UI to layout our components. The layout of the app consists of a heading (which shows the question), an associated image, buttons to display the four multi-choice options, and a button to go to the next question.

A diagram of the quiz app is added to a Confluence page

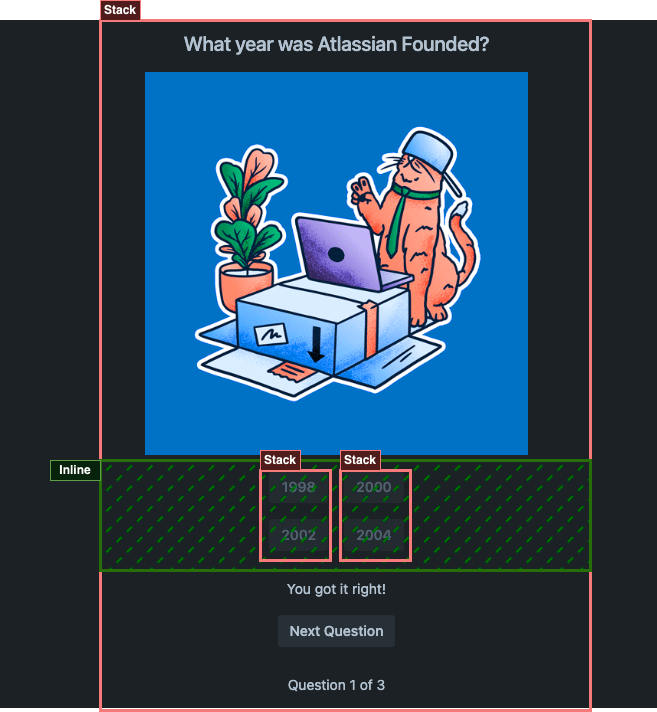

We are also going to use Inline and Stack components to layout our components:

A diagram showing the inline and stack components is added to a Confluence page

Install the latest versions of the following packages in the top-level directory of the app:

  • UI Kit: To update your version run npm install @forge/react@latest --save on the command line.

In frontend/index.jsx, we want to import our components from @forge/react, so update the existing import statement to look like this:

1
2
import ForgeReconciler, { Heading, Image, Button, Text, Inline, Stack } from '@forge/react';

You can also remove the other unused imports.

In the App component, remove everything in there as we will be adding our own components and states. Add our component stack inside return(). Your frontend/index.jsx file should look like this:

1
2
import React from 'react';
import ForgeReconciler, { Heading, Image, Button, Text, Inline, Stack } from '@forge/react';

const App = () => {
  return (
    <>
      <Stack space="space.200" alignInline="center">
        <Heading as="h1">My Question</Heading>
        <Image src="https://media.giphy.com/media/xUOxfjsW9fWPqEWouI/giphy.gif" alt="Founders" size="xsmall" />
        <Inline space="space.200" alignBlock="center" alignInline="center">
          <Stack space="space.200" grow="hug">
            <Button appearance="primary" onClick={() => {}}>
              Option 1
            </Button>
            <Button appearance="primary" onClick={() => {}}>
              Option 3
            </Button>
          </Stack>
          <Stack space="space.200" grow="hug">
            <Button appearance="primary" onClick={() => {}}>
              Option 2
            </Button>
            <Button appearance="primary" onClick={() => {}}>
              Option 4
            </Button>
          </Stack>
        </Inline>
        <Text>Answer</Text>
        <Button appearance='default' onClick={() => {}}>Next question</Button>
        <Text>Question 1 out of 3</Text>
      </Stack>
    </>
  );
};

ForgeReconciler.render(
  <React.StrictMode>
    <App />
  </React.StrictMode>
);

Step 5: Install your app

Build, deploy, and install the app to see it in your Confluence site.

To use your app, it must be installed onto an Atlassian site. The forge deploy command builds, compiles, and deploys your code; it'll also report any compilation errors. The forge install command then installs the deployed app onto an Atlassian site with the required API access.

You must run the forge deploy command before forge install because an installation links your deployed app to an Atlassian site.

  1. Navigate to the app's top-level directory and deploy your app by running:

    1
    2
    forge deploy

  2. Install your app by running:

    1
    2
    forge install

  3. Select your Atlassian product using the arrow keys and press the enter key.

  4. Enter the URL for your development site. For example, example.atlassian.net. View a list of your active sites at Atlassian administration.

Once the successful installation message appears, your app is installed and ready to use on the specified site. You can always delete your app from the site by running the forge uninstall command.

Running the forge install command only installs your app onto the selected product. To install onto multiple products, repeat these steps again, selecting another product each time. Note that the Atlassian Marketplace does not support cross-product apps yet.

You must run forge deploy before running forge install in any of the Forge environments.

The quiz app uses the confluence:globalPage template, which displays content in place of a Confluence page. To view the quiz app:

  1. Go the site where your app is installed.
  2. Select the Apps tab on the top navigation bar and select your app to view.

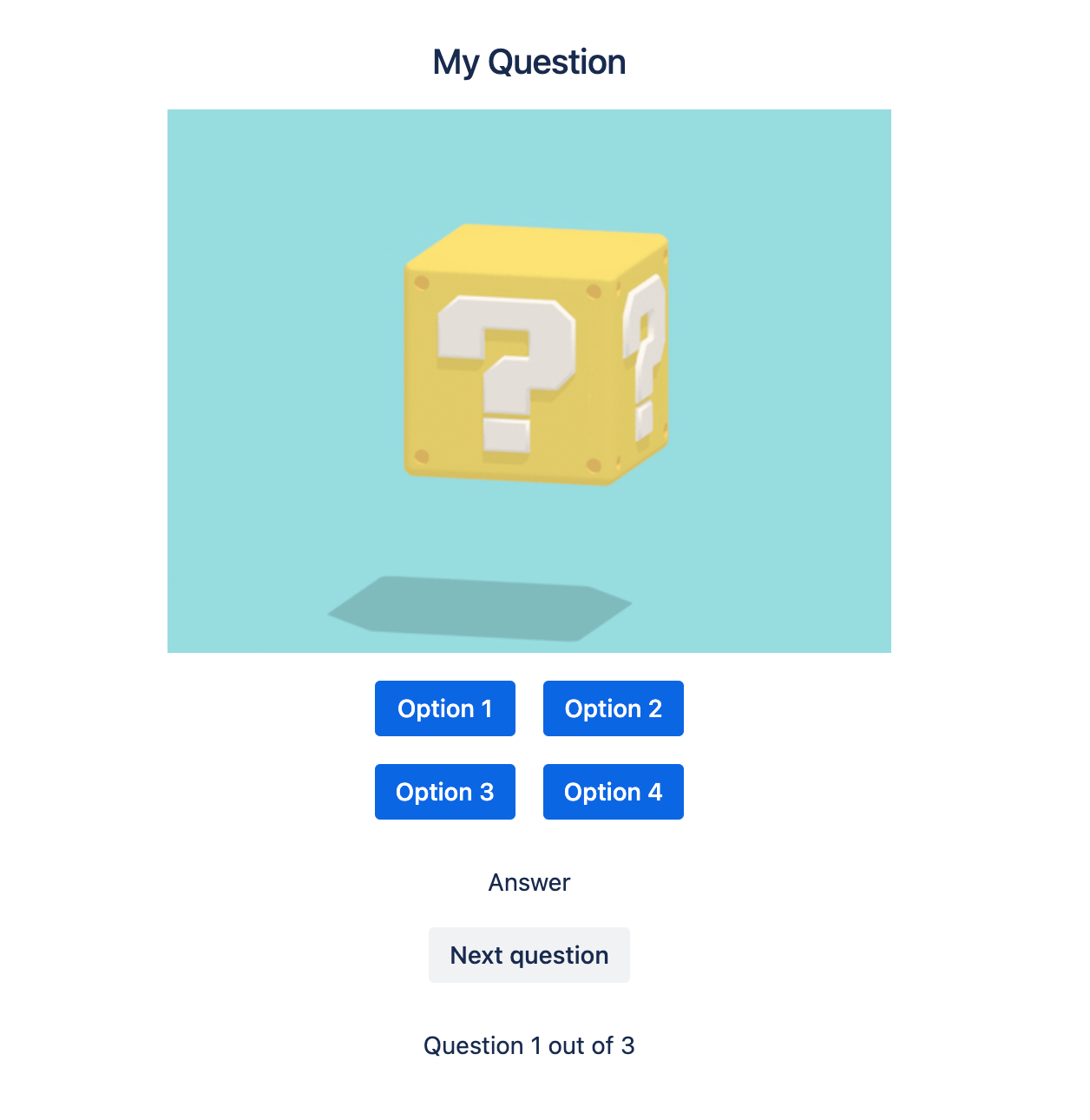

The app is inserted into a Confluence page

Step 6: Importing questions and adding states

Import our question set from questions.js:

1
2
import { QuestionSet } from '../data/questions';

We are going to keep track of which question is displayed using a counter. We will track the question using the useState hook and set the state when the user clicks Next question.

1
2
const [activeQuestion, setActiveQuestion] = useState(0);

We can now grab the next question using the activeQuestion index:

1
2
const { question, options, image } = QuestionSet[activeQuestion];

We will also create more states to track when to display the explanation and the result. You can try to build it yourself, or replace your frontend/index.jsx with the following:

1
2
import React, { useState } from 'react';
import ForgeReconciler, { Heading, Image, Button, Text, Inline, Stack } from '@forge/react';
import { QuestionSet } from '../data/questions';

const App = () => {

  const [activeQuestion, setActiveQuestion] = useState(0);
  const [explanation, setExplanation] = useState('')
  const [showResult, setShowResult] = useState(false);

  const onClickHandler = (isCorrect) => {
    if (isCorrect) {
      setExplanation('You got it right!');
    } else {
      setExplanation('Incorrect, the correct answer is ' + `${QuestionSet[activeQuestion].correctAnswer}`);
    }

    setShowResult(true);
  }

  const onClickNext = () => {
    if (activeQuestion + 1 < QuestionSet.length) {
      setActiveQuestion(activeQuestion + 1);
      setShowResult(false);
    }
  }

  const { question, options, image } = QuestionSet[activeQuestion];

  return (
    <>
      <Stack space="space.200" alignInline="center">
        <Heading as="h1">{question}</Heading>
        <Image src={image ? image : "https://media.giphy.com/media/xUOxfjsW9fWPqEWouI/giphy.gif"} alt="Founders" size="xsmall" />
        <Inline space="space.200" alignBlock="center" alignInline="center">
          <Stack space="space.200" grow="hug">
            <Button appearance="primary" onClick={() => onClickHandler(options[0].isCorrect)} isDisabled={showResult ? true : false}>
              {options[0].option}
            </Button>
            <Button appearance="primary" onClick={() => onClickHandler(options[2].isCorrect)} isDisabled={showResult ? true : false}>
              {options[2].option}
            </Button>
          </Stack>
          <Stack space="space.200" grow="hug">
            <Button appearance="primary" onClick={() => onClickHandler(options[1].isCorrect)} isDisabled={showResult ? true : false}>
              {options[1].option}
            </Button>
            <Button appearance="primary" onClick={() => onClickHandler(options[3].isCorrect)} isDisabled={showResult ? true : false}>
              {options[3].option}
            </Button>
          </Stack>
        </Inline>
        <Text>{showResult ? explanation : null}</Text>
        <Button appearance='default' onClick={onClickNext} isDisabled={showResult ? false : true}>{ activeQuestion == QuestionSet.length-1 ? 'Finish' : 'Next Question'}</Button>
        <Text>Question {activeQuestion + 1} of {QuestionSet.length}</Text>
      </Stack>
    </>
  );
};

ForgeReconciler.render(
  <React.StrictMode>
    <App />
  </React.StrictMode>
);

The user flow is that the answer will be checked as soon as the multi-choice option is clicked, but it does not go to the next question immediately as we want to display a result plus the explanation. Two more hooks are added to support this, explanation and showResult. showResult is a hook that toggles whether to display the explanation.

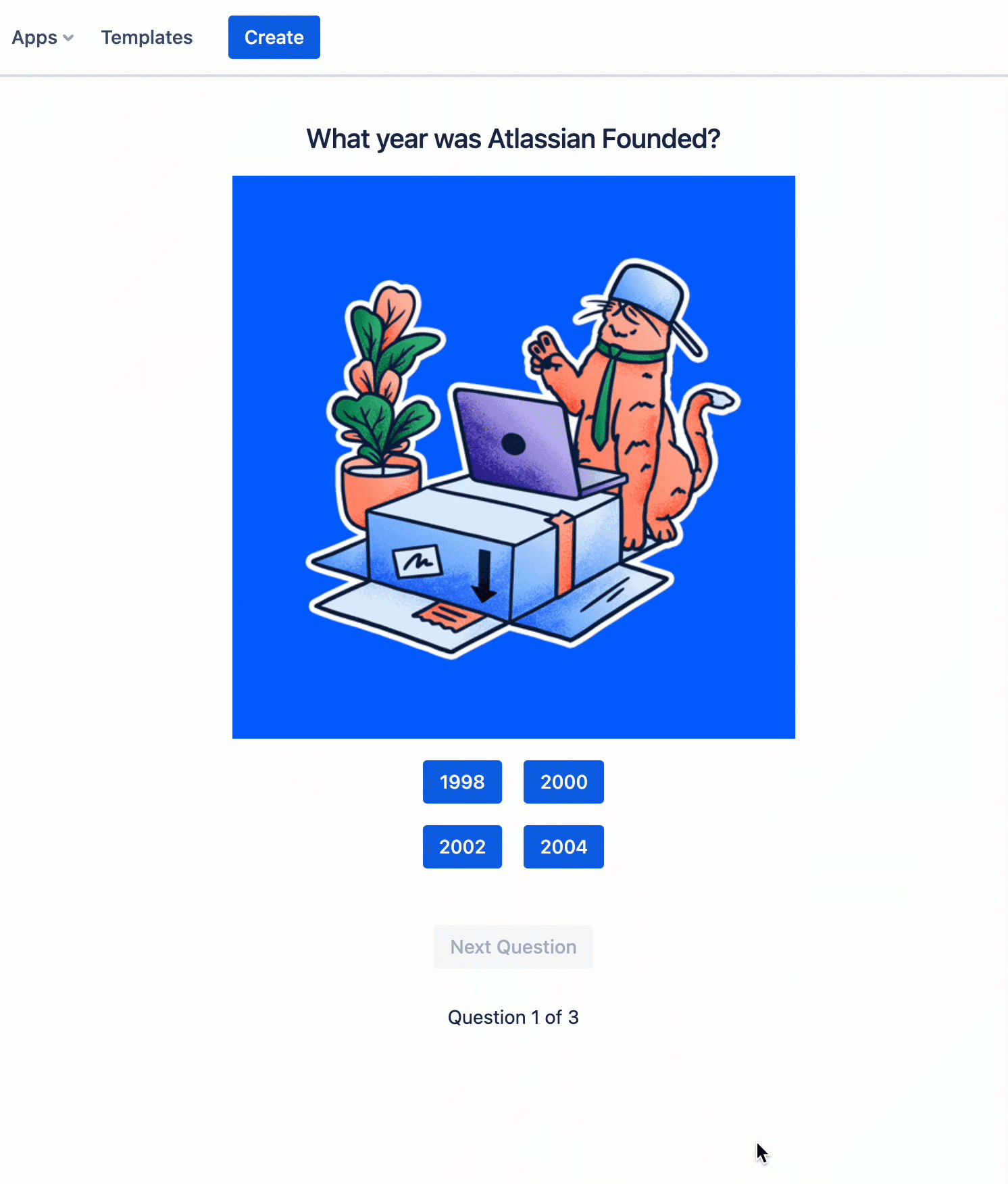

Your app should now look like this and can be playable:

A gif is added to a Confluence page

Step 7: Adding an ending screen

The quiz app also needs a simple scoring system and an end screen to display it. Using a new hook showResults, we will keep track of activeQuestion and if it is the last question and next question is clicked, the ending screen will be displayed.

The final frontend/index.jsx should look like this:

1
2
import React, { useState } from 'react';
import ForgeReconciler, { Heading, Image, Button, Text, Inline, Stack } from '@forge/react';
import { QuestionSet } from '../data/questions';

const App = () => {

  const [activeQuestion, setActiveQuestion] = useState(0);
  const [explanation, setExplanation] = useState('')
  const [showResult, setShowResult] = useState(false);
  const [showResults, setShowResults] = useState(false);
  const [score, setScore] = useState(0);

  const onClickHandler = (isCorrect) => {
    if (isCorrect) {
      setExplanation('You got it right!');
      setScore(score + 1);
    } else {
      setExplanation('Incorrect, the correct answer is ' + `${QuestionSet[activeQuestion].correctAnswer}`);
    }

    setShowResult(true);
  }

  const onClickNext = () => {
    if (activeQuestion + 1 < QuestionSet.length) {
      setActiveQuestion(activeQuestion + 1);
      setShowResult(false);
    } else {
      setShowResults(true);
    }
  }

  const onClickReplay = () => {
    setActiveQuestion(0);
    setShowResult(false);
    setScore(0);
    setExplanation('');
    setShowResults(false);
  }

  const { question, options, image } = QuestionSet[activeQuestion];

  return (
    <>
      { showResults ? (
        <Stack space="space.200" alignInline="center">
          <Heading as="h1">Final score: {score} out of {QuestionSet.length} </Heading>
          <Image src={"https://media.giphy.com/media/XROOE9NApITmCgF6dZ/giphy.gif"} alt='High-five' size = "small"/>
          <Button appearance="primary" onClick={onClickReplay}>
              Replay
          </Button>
        </Stack>
      ) : (
      <Stack space="space.200" alignInline="center">
        <Heading as="h1">{question}</Heading>
        <Image src={image ? image : "https://media.giphy.com/media/xUOxfjsW9fWPqEWouI/giphy.gif"} alt="Founders" size="xsmall" />
        <Inline space="space.200" alignBlock="center" alignInline="center">
          <Stack space="space.200" grow="hug">
            <Button appearance="primary" onClick={() => onClickHandler(options[0].isCorrect)} isDisabled={showResult ? true : false}>
              {options[0].option}
            </Button>
            <Button appearance="primary" onClick={() => onClickHandler(options[2].isCorrect)} isDisabled={showResult ? true : false}>
              {options[2].option}
            </Button>
          </Stack>
          <Stack space="space.200" grow="hug">
            <Button appearance="primary" onClick={() => onClickHandler(options[1].isCorrect)} isDisabled={showResult ? true : false}>
              {options[1].option}
            </Button>
            <Button appearance="primary" onClick={() => onClickHandler(options[3].isCorrect)} isDisabled={showResult ? true : false}>
              {options[3].option}
            </Button>
          </Stack>
        </Inline>
        <Text>{showResult ? explanation : null}</Text>
        <Button appearance='default' onClick={onClickNext} isDisabled={showResult ? false : true}>{ activeQuestion == QuestionSet.length-1 ? 'Finish' : 'Next Question'}</Button>
        <Text>Question {activeQuestion + 1} of {QuestionSet.length}</Text>
      </Stack> )
      }
    </>
  );
};

ForgeReconciler.render(
  <React.StrictMode>
    <App />
  </React.StrictMode>
);

Ensure you deploy your app with forge deploy.

Congrats! Now you have a quiz app in Confluence.

Next steps

Continue to one of the other tutorials or look through the reference pages to learn more.

See the reference pages to learn what else you can do with what you’ve learned.

Rate this page:
