Authorizing Realtime channels

Forge Realtime offers multiple options for restricting a channel's scope based on the Atlassian app context permissions or your own custom-defined permissions. Realtime channels are always restricted to an app installation at a minimum; however, it is important that you use the appropriate level of authorization within your app to prevent unprivileged users from gaining access to your channels in privileged contexts.

Atlassian app context permissions

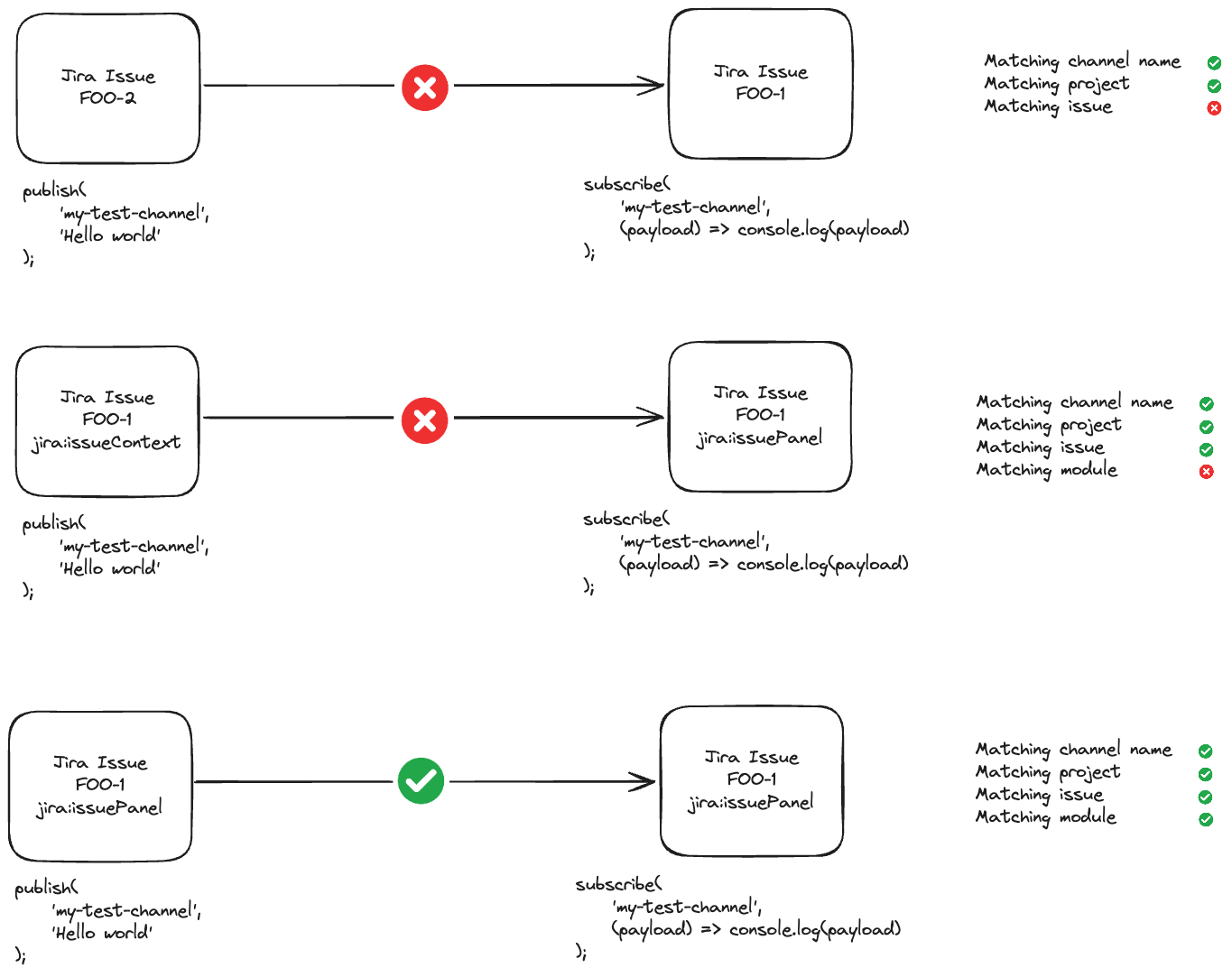

Default channel context

The default context for a channel will be the Atlassian app context of the module. This means that a subscription in a module, for example jira:issuePanel, will only receive messages that are published from the same module in the same Jira issue. It will not receive messages from a jira:issueContext on that issue, or the jira:issuePanel on a different issue, even if they share the same channel name.

Example

Frontend

1
2
import { useEffect } from 'react';
import { realtime } from '@forge/bridge';

const App = () => {
  useEffect(() => {
    const onEvent = (payload: string) => {
      console.log('Received event with payload: ', payload);
    };

    const subscription = realtime.subscribe('my-test-channel', onEvent);

    return () => {
      subscription.then(s => s.unsubscribe());
    };
  }, []);

  return (
    <Button onClick={() => realtime.publish('my-test-channel', 'Here is an event payload!')}>
      Publish event
    </Button>
  );
};

Using context overrides

If the entire Atlassian app context is too restrictive for your channel scope, you can customize it with context overrides. You can do this by providing the contextOverrides property in the options parameter of the subscribe and publish methods. It takes a list of allowlisted Atlassian app context properties, such as Jira.Project, and only includes those properties in the channel context.

This will allow you to create channels that exist across different modules or pages while still enforcing the user's product permissions for the context properties you provide.

1
2
export enum Jira {
  Board = 'board',
  Issue = 'issue',
  Project = 'project'
}

export type ProductContext = Jira;

export interface SubscriptionOptions {
  replaySeconds?: number;
  token?: string;
  contextOverrides?: ProductContext[];
}

export interface PublishOptions {
  token?: string;
  contextOverrides?: ProductContext[];
}

Example

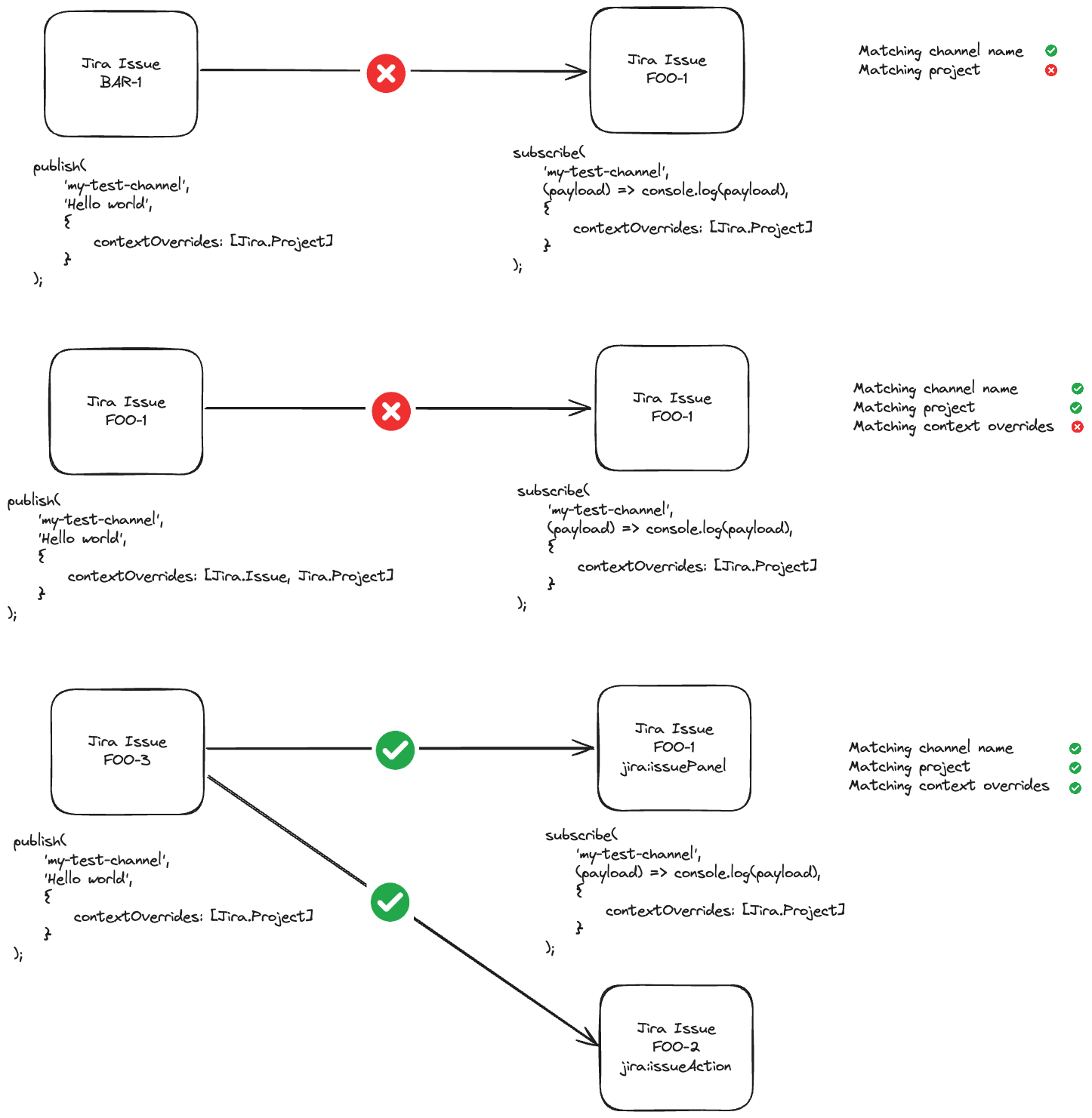

The example below establishes a channel that is scoped to the current Jira project. Messages can be published between different issues and boards in the project.

Frontend

1
2
import { useEffect } from 'react';
import { realtime } from '@forge/bridge';
import { Jira } from '@forge/bridge/realtime';

const App = () => {
  useEffect(() => {
    const subscription = realtime.subscribe(
      'my-test-channel',
      (payload) => console.log(payload),
      { contextOverrides: [Jira.Project] }
    );
  }, []);

  return (
    <Button onClick={() => realtime.publish(
      'my-test-channel',
      'Here is an event payload!',
      { contextOverrides: [Jira.Project] }
    )}>
      Publish event
    </Button>
  );
};

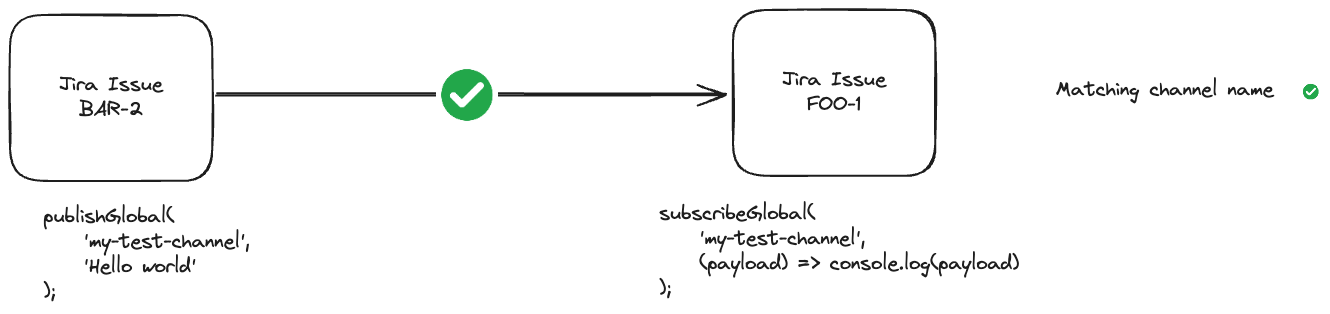

Using global channels

Global channels can be used to send messages across different Atlassian app contexts within an app installation, and should only be used when the above two options are not suitable. Some examples of when you should use a global channel are if a channel needs to send messages between different Jira projects, or when publishing messages from a Forge function that isn't associated with a UI context, for example functions for Atlassian app events or lifecycle events.

Example

Frontend

1
2
import { useEffect } from 'react';
import { realtime } from '@forge/bridge';

const App = () => {
  useEffect(() => {
    const onEvent = (payload: string) => {
      console.log('Received event with payload: ', payload);
    };

    const subscription = realtime.subscribeGlobal('my-global-channel', onEvent);

    return () => {
      subscription.then(s => s.unsubscribe());
    };
  }, []);

  return (
    <Button
      onClick={() => realtime.publishGlobal('my-global-channel', 'Here is an event payload!')}
    >
      Publish event
    </Button>
  );
};

Custom channel context with Realtime tokens

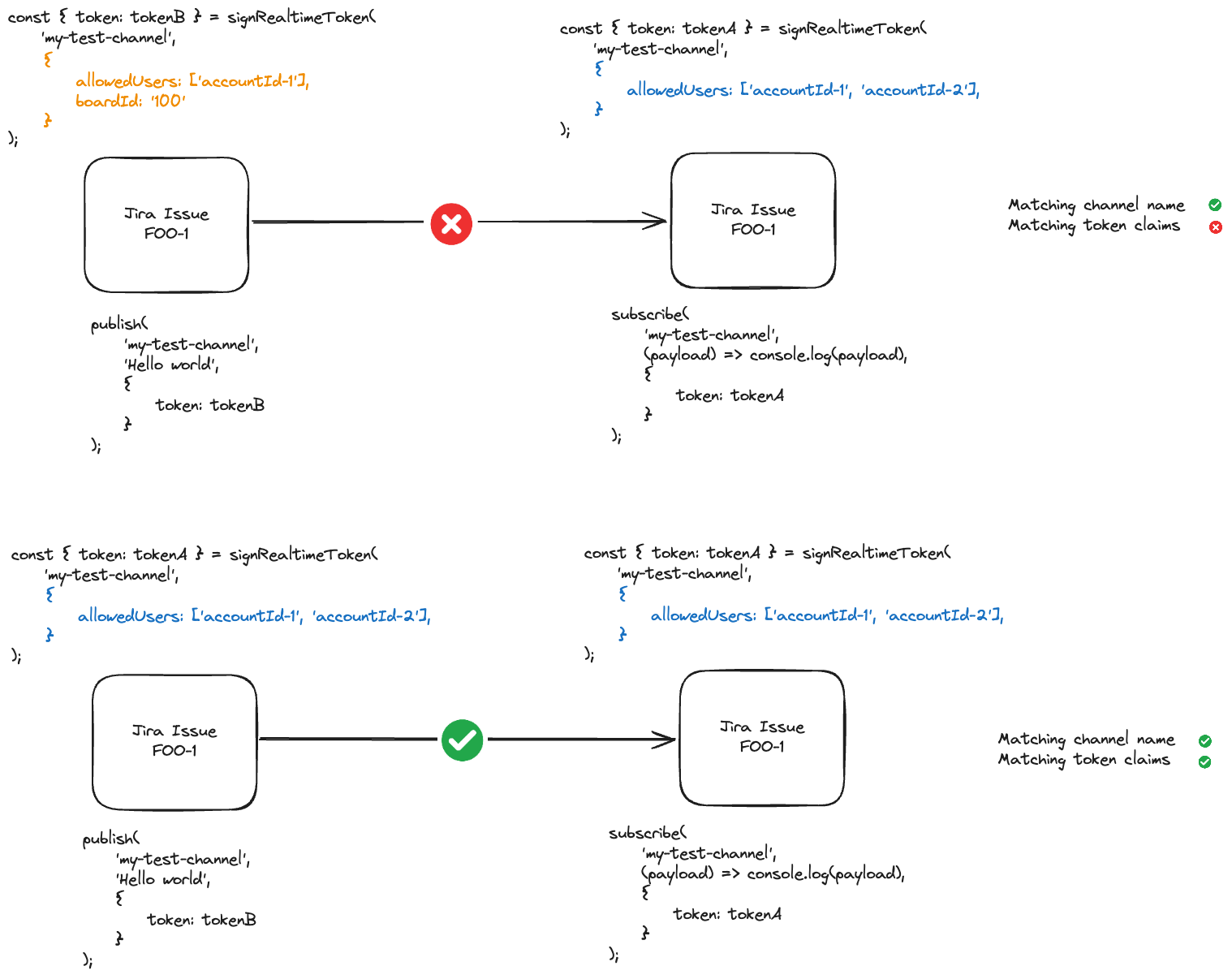

In addition to the Atlassian app context, you can also include your own set of custom claims to secure a channel by signing your own Realtime token with the signRealtimeToken method from @forge/realtime. The claims can contain any serializable data, but it is your responsibility to validate the claims before signing them into the token.

The custom claims will be added on top of the Atlassian app context that already exists for your channel. If using the subscribe and publish methods, the channel is secured by the Atlassian app context (or a subset if contextOverrides is provided) and your token's claims. If using the subscribeGlobal and publishGlobal methods, the channel is only secured by the token.

Example

Resolver

1
2
import Resolver from '@forge/resolver';
import { publish, signRealtimeToken } from '@forge/realtime';

const resolver = new Resolver();
const TOKEN_EXPIRY_BUFFER = 5000; // 5 seconds

resolver.define('publishEvent', ({ payload, context }) => {
  const customClaims = {
    allowedUsers: ['accountId-1', 'accountId-2'],
  };

  const { token, expiresAt } = signRealtimeToken('my-test-channel', customClaims);

  // expiresAt is an epoch timestamp expressed in seconds (in accordance with the JWT
  // standard for the exp field), so it needs to be converted to milliseconds before
  // comparing against a Date timestamp.
  if (Date.now() - TOKEN_EXPIRY_BUFFER < expiresAt * 1000) {
     return publish('my-test-channel', 'This is an event payload', { token });
  }
});

export const handler = resolver.getDefinitions();
