Data Center App Performance Toolkit User Guide For Jira Service Management

This document walks you through the process of testing your app on Jira Service Management using the Data Center App Performance Toolkit. These instructions focus on producing the required performance and scale benchmarks for your Data Center app:

If your application relays or extends the functionality of Insight (What is Insight?):

Please, make sure you have enabled Insight-specific tests in the jsm.yml file, by setting True value next to the insight variable.

In this document, we cover the use of the Data Center App Performance Toolkit on two types of environments:

Development environment: Jira Service Management Data Center environment for a test run of Data Center App Performance Toolkit and development of app-specific actions. We recommend you use the AWS Quick Start for Jira Data Center with the parameters prescribed here.

1. Set up a development environment Jira Service Management Data Center on AWS.
2. Load a "small" dataset for the development environment.
3. Run toolkit on the development environment locally.
4. Develop and test app-specific actions locally.

Enterprise-scale environment: Jira Service Management Data Center environment used to generate Data Center App Performance Toolkit test results for the Marketplace approval process. Preferably, use the AWS Quick Start for Jira Data Center with the parameters prescribed below. These parameters provision larger, more powerful infrastructure for your Jira Service Management Data Center.

5. Set up an enterprise-scale environment Jira Service Management Data Center on AWS.
6. Load an enterprise-scale dataset on your Jira Service Management Data Center deployment.
7. Set up an execution environment for the toolkit.
8. Running the test scenarios from execution environment against enterprise-scale Jira Service Management Data Center.

---

Development environment

Running the tests in a development environment helps familiarize you with the toolkit. It'll also provide you with a lightweight and less expensive environment for developing. Once you're ready to generate test results for the Marketplace Data Center Apps Approval process, run the toolkit in an enterprise-scale environment.

1. Setting up Jira Service Management Data Center development environment

We recommend that you set up development environment using the AWS Quick Start for Jira Data Center (How to deploy tab). All the instructions on this page are optimized for AWS.

Using the AWS Quick Start for Jira Service Management

If you are a new user, perform an end-to-end deployment. This involves deploying Jira Service Management into a new ASI:

Navigate to AWS Quick Start for Jira Data Center > How to deploy tab > Deploy into a new ASI link.

If you have already deployed the ASI separately by using the ASI Quick StartASI Quick Start or by deploying another Atlassian product (Jira, Bitbucket, or Confluence Data Center development environment) with ASI, deploy Jira Service Management into your existing ASI:

Navigate to AWS Quick Start for Jira Data Center > How to deploy tab > Deploy into your existing ASI link.

To reduce costs, we recommend you to keep your deployment up and running only during the performance runs.

AWS cost estimation for the development environment

AWS Jira Service Management Data Center development environment infrastructure costs about 25 - 50$ per working week depending on such factors like region, instance type, deployment type of DB, and other.

Quick Start parameters for development environment

All important parameters are listed and described in this section. For all other remaining parameters, we recommend using the Quick Start defaults.

Jira setup

Cluster nodes

Database

Networking (for new ASI)

Networking (for existing ASI)

Running the setup wizard

After successfully deploying the Jira Service Management Data Center on AWS, configure it as follows:

1. In the AWS console, go to Services > CloudFormation > Stack > Stack details > Select your stack.

2. On the Outputs tab, copy the value of the LoadBalancerURL key.

3. Open LoadBalancerURL in your browser. This will take you to the Jira Service Management setup wizard.

4. On the Set up application properties page, fill in the following fields:

   • Application Title: any name for your Jira Service Management Data Center deployment
   • Mode: private
   • Base URL: your stack's Elastic LoadBalancer URL

   Then select Next.

5. On the next page, fill in the Your License Key field in one of the following ways:

   • Using your existing license
   • Generating a Jira Service Management trial license
   • Contacting Atlassian to be provided two time-bomb licenses for testing. Ask for the licenses in your ECOHELP ticket.

   Then select Next.

6. On the Set up administrator account page, fill in the following fields:

   • Full name: a full name of the admin user
   • Email Address: email address of the admin user
   • Username: admin (recommended)
   • Password: admin (recommended)
   • Confirm Password: admin (recommended)

   Then select Next.

7. On the Set up email notifications page, configure your email notifications, and then select Finish.

8. On the first page of the welcome setup select English (United States) language. Other languages are not supported by the toolkit.

9. After going through the welcome setup, select Create new project to create a new project.

---

2. Upload "small" dataset for development environment

You can load this dataset directly into the database (via a populate_db.sh script), or import it via XML.

Option 1 (recommended): Loading the "small" dataset via populate_db.sh script

To populate the database with SQL:

1. In the AWS console, go to Services > EC2 > Instances.

2. On the Description tab, do the following:

   • Copy the Public IP of the Bastion instance.
   • Copy the Private IP of the Jira Service Management node instance.

3. Using SSH, connect to the Jira Service Management node via the Bastion instance:

   For Linux or MacOS run following commands in terminal (for Windows use Git Bash terminal):

   1
   2
   ssh-add path_to_your_private_key_pem
   export BASTION_IP=bastion_instance_public_ip
   export NODE_IP=node_private_ip
   export SSH_OPTS1='-o ServerAliveInterval=60'
   export SSH_OPTS2='-o ServerAliveCountMax=30'
   ssh ${SSH_OPTS1} ${SSH_OPTS2} -o "proxycommand ssh -W %h:%p ${SSH_OPTS1} ${SSH_OPTS2} ec2-user@${BASTION_IP}" ec2-user@${NODE_IP}


   For more information, go to Connecting your nodes over SSH.

4. Download the populate_db.sh script and make it executable:

   1
   2
   wget https://raw.githubusercontent.com/atlassian/dc-app-performance-toolkit/master/app/util/jira/populate_db.sh && chmod +x populate_db.sh


5. Review the following Variables section of the script:

   1
   2
   DB_CONFIG="/var/atlassian/application-data/jira/dbconfig.xml"
   JIRA_DB_NAME="jira"
   JIRA_DB_USER="postgres"
   JIRA_DB_PASS="Password1!"
   # JSM section
   JIRA_CURRENT_DIR="/opt/atlassian/jira-servicedesk/current"
   JIRA_SETENV_FILE="${JIRA_CURRENT_DIR}/bin/setenv.sh"
   JIRA_VERSION_FILE="/media/atl/jira/shared/jira-servicedesk.version"


6. Run the script:

   1
   2
   ./populate_db.sh --jsm --small 2>&1 | tee -a populate_db.log


Option 2: Loading the "small" dataset through XML import

We recommend that you only use this method if you are having problems with the populate_db.sh script.

1. In the AWS console, go to Services > EC2 > Instances.

2. On the Description tab, do the following:

   • Copy the Public IP of the Bastion instance.
   • Copy the Private IP of the Jira Service Management node instance.

3. Using SSH, connect to the Jira Service Management node via the Bastion instance:

   For Linux or MacOS run following commands in terminal (for Windows use Git Bash terminal):

   1
   2
   ssh-add path_to_your_private_key_pem
   export BASTION_IP=bastion_instance_public_ip
   export NODE_IP=node_private_ip
   export SSH_OPTS1='-o ServerAliveInterval=60'
   export SSH_OPTS2='-o ServerAliveCountMax=30'
   ssh ${SSH_OPTS1} ${SSH_OPTS2} -o "proxycommand ssh -W %h:%p ${SSH_OPTS1} ${SSH_OPTS2} ec2-user@${BASTION_IP}" ec2-user@${NODE_IP}


   For more information, go to Connecting your nodes over SSH.

4. Download the xml_backup.zip file corresponding to your Jira Service Management version.

   1
   2
   JSM_VERSION=$(sudo su jira -c "cat /media/atl/jira/shared/jira-servicedesk.version")
   sudo su jira -c "wget https://centaurus-datasets.s3.amazonaws.com/jsm/${JSM_VERSION}/small/xml_backup.zip -O /media/atl/jira/shared/import/xml_backup.zip"


5. Log in as a user with the Jira System Administrators global permission.

6. Go to > System > Restore System. from the menu.

7. Populate the File name field with xml_backup.zip.

8. Click Restore and wait until the import is completed.

Restoring "small" dataset attachments

1. Using SSH, connect to the Jira Service Management node via the Bastion instance:

   For Linux or MacOS run following commands in terminal (for Windows use Git Bash terminal):

   1
   2
   ssh-add path_to_your_private_key_pem
   export BASTION_IP=bastion_instance_public_ip
   export NODE_IP=node_private_ip
   export SSH_OPTS1='-o ServerAliveInterval=60'
   export SSH_OPTS2='-o ServerAliveCountMax=30'
   ssh ${SSH_OPTS1} ${SSH_OPTS2} -o "proxycommand ssh -W %h:%p ${SSH_OPTS1} ${SSH_OPTS2} ec2-user@${BASTION_IP}" ec2-user@${NODE_IP}


   For more information, go to Connecting your nodes over SSH.

2. Download the upload_attachments.sh script and make it executable:

   1
   2
   wget https://raw.githubusercontent.com/atlassian/dc-app-performance-toolkit/master/app/util/jira/upload_attachments.sh && chmod +x upload_attachments.sh


3. Review the following Variables section of the script:

   1
   2
   # JSM version file location
   JIRA_VERSION_FILE="/media/atl/jira/shared/jira-servicedesk.version"


4. Run the script:

   1
   2
   ./upload_attachments.sh --jsm --small 2>&1 | tee -a upload_attachments.log


Re-indexing development environment Jira Service Management Data Center

For more information, go to Re-indexing Jira.

1. Log in as a user with the Jira System Administrators global permission.
2. Go to > System > Indexing.
3. Select the Full re-index option.
4. Click Re-Index and wait until re-indexing is completed.

When finished, the Acknowledge button will be available on the re-indexing page.

---

3. Run toolkit on the development environment locally

1. Clone Data Center App Performance Toolkit locally.

2. Follow the README.md instructions to set up toolkit locally.

3. Navigate to dc-app-performance-toolkit/app folder.

4. Open the jsm.yml file and fill in the following variables:

   • application_hostname: your_dc_jsm_instance_hostname without protocol.
   • application_protocol: http or https.
   • application_port: for HTTP - 80, for HTTPS - 443, 8080, 2990 or your instance-specific port.
   • secure: True or False. Default value is True. Set False to allow insecure connections, e.g. when using self-signed SSL certificate.
   • application_postfix: it is empty by default; e.g., /jira for url like this http://localhost:2990/jira.
   • admin_login: admin user username.
   • admin_password: admin user password.
   • load_executor: executor for load tests. Valid options are jmeter (default) or locust.
   • concurrency_agents: 1 - number of concurrent JMeter/Locust agents.
   • concurrency_customers: 1 - number of concurrent JMeter/Locust customers.
   • test_duration: 5m - duration of the performance run.
   • ramp-up: 3s - amount of time it will take JMeter or Locust to add all test users to test execution.
   • total_actions_per_hour_agents: 500 - number of total JMeter/Locust actions per hour for agents scenario.
   • total_actions_per_hour_customers: 1500 - number of total JMeter/Locust actions per hour customers scenario.
   • WEBDRIVER_VISIBLE: visibility of Chrome browser during selenium execution (False is by default).
   • insight: True or False. Default value is False. Set True to enable Insight specific tests.

5. In case your application relays or extends the functionality of Insight. Make sure to set True value next to insight variable.

6. Run bzt.

   1
   2
   bzt jsm.yml


7. Review the resulting table in the console log. All JMeter/Locust and Selenium actions should have 95+% success rate.
   In case some actions does not have 95+% success rate refer to the following logs in dc-app-performance-toolkit/app/results/jsm/YY-MM-DD-hh-mm-ss folder:

   • results_summary.log: detailed run summary
   • results.csv: aggregated .csv file with all actions and timings
   • bzt.log: logs of the Taurus tool execution
   • jmeter.*: logs of the JMeter tool execution
   • locust.*: logs of the Locust tool execution (in case you use Locust as load_executor in jsm.yml)
   • pytest.*: logs of Pytest-Selenium execution

---

4. Develop and test app-specific action locally

Data Center App Performance Toolkit has its own set of default test actions for Jira Service Management Data Center: JMeter/Locust and Selenium for load and UI tests respectively.

App-specific action - action (performance test) you have to develop to cover main use cases of your application. Performance test should focus on the common usage of your application and not to cover all possible functionality of your app. For example, application setup screen or other one-time use cases are out of scope of performance testing.

1. Define main use case of your app. Usually it is one or two main app use cases.
2. Your app adds new UI elements in Jira Service Management Data Center - Selenium app-specific action has to be developed.
3. Your app introduces new endpoint or extensively calls existing Jira Service Management Data Center API - JMeter/Locust app-specific actions has to be developed.
   JMeter and Locust actions are interchangeable, so you could select the tool you prefer:

• JMeter - UI-based performance tool.
• Locust - code-based (Python requests library) performance tool.

Custom dataset

You can filter your own app-specific issues for your app-specific actions.

1. Create app-specific service desk requests that have specific anchor in summary, e.g. AppRequest anchor and issues summaries like AppRequest1, AppRequest2, AppRequest3.
2. Go to the search page of your Jira Service Management Data Center - JSM_URL/issues/?jql= and select Advanced.
3. Write JQL that filter just your request from step 1, e.g. summary ~ 'AppRequest*'.
4. Edit JSM configuration file dc-app-performance-toolkit/app/jsm.yml:
   • custom_dataset_query: JQL from step 3.

Next time when you run toolkit, custom dataset issues will be stored to the dc-app-performance-toolkit/app/datasets/jsm/custom-requests.csv with columns: request_id, request_key, service_desk_id, project_id, project_key.

Example of app-specific Selenium action development with custom dataset

You develop an app that adds some additional fields to specific types of Jira Service Management requests. In this case, you should develop Selenium app-specific action:

1. Create app-specific service desk requests with AppRequest anchor in summary: AppRequest1, AppRequest2, etc.
2. Go to the search page of your Jira Service Management Data Center - JSM_URL/issues/?jql= and check if JQL is correct: summary ~ 'AppRequest*'.
3. Edit dc-app-performance-toolkit/app/jsm.yml configuration file and set custom_dataset_query: summary ~ 'AppRequest*'.
4. Extend example of app-specific action for agent in dc-app-performance-toolkit/app/extension/jsm/extension_ui_agents.py.
   Code example. So, our test has to open app-specific requests in agent view and measure time to load of this app-specific request.
5. Extend example of app-specific action for customer in dc-app-performance-toolkit/app/extension/jsm/extension_ui_customers.py.
   Code example. So, our test has to open app-specific requests in portal view and measure time to load of this app-specific request.
6. If you need to run app_specific_action as specific user uncomment app_specific_user_login function in code example. Note, that in this case test_1_selenium_custom_action should follow just before test_2_selenium_agent_z_logout or test_2_selenium_customer_z_log_out action.
7. In dc-app-performance-toolkit/app/selenium_ui/jsm_ui_agents.py, review and uncomment the following block of code to make newly created app-specific actions executed:

1
2
# def test_1_selenium_agent_custom_action(jsm_webdriver, jsm_datasets, jsm_screen_shots):
#     extension_ui_agents.app_specific_action(jsm_webdriver, jsm_datasets)

1. In dc-app-performance-toolkit/app/selenium_ui/jsm_ui_customers.py, review and uncomment the following block of code to make newly created app-specific actions executed:

1
2
# def test_1_selenium_customer_custom_action(jsm_webdriver, jsm_datasets, jsm_screen_shots):
#     extension_ui_customers.app_specific_action(jsm_webdriver, jsm_datasets)

1. Run toolkit with bzt jsm.yml command to ensure that all Selenium actions including app_specific_action are successful.

Example of app-specific Locust/JMeter action development

You develop an app that introduces new GET and POST endpoints in Jira Service Management Data Center. In this case, you should develop Locust or JMeter app-specific action.

Locust app-specific action development example

1. Extend example of app-specific action for agent in dc-app-performance-toolkit/app/extension/jsm/extension_locust_agents.py, so that test will call the endpoint with GET request, parse response use these data to call another endpoint with POST request and measure response time.
   Code example.
2. Extend example of app-specific action for customers in dc-app-performance-toolkit/app/extension/jsm/extension_locust_customers.py, so that test will call the endpoint with GET request, parse response use these data to call another endpoint with POST request and measure response time.
   Code example.
3. In dc-app-performance-toolkit/app/jsm.yml set load_executor: locust to make locust as load executor.
4. Set desired execution percentage for agent_standalone_extension/customer_standalone_extension. Default value is 0, which means that agent_standalone_extension/customer_standalone_extension action will not be executed. Locust uses actions percentage as relative weights, so if some_action: 10 and standalone_extension: 20 that means that standalone_extension will be called twice more.
   Set agent_standalone_extension/customer_standalone_extension weight in accordance with the expected frequency of your app use case compared with other base actions.
5. App-specific tests could be run (if needed) as a specific user. Use @run_as_specific_user(username='specific_user_username', password='specific_user_password') decorator for that.
6. Run toolkit with bzt jsm.yml command to ensure that all Locust actions including app_specific_action are successful.

JMeter app-specific action development example

1. Check that jsm.yml file has correct settings of application_hostname, application_protocol, application_port, application_postfix, etc.

2. Set desired execution percentage for agent_standalone_extension and/or customer_standalone_extension. Default values are 0, which means that agent_standalone_extension and customer_standalone_extension actions will not be executed. For example, for app-specific action development you could set percentage of agent_standalone_extension and/or customer_standalone_extension to 100 and for all other actions to 0 - this way only jmeter_agent_login_and_view_dashboard and agent_standalone_extension or jmeter_customer_login_and_view_dashboard and customer_standalone_extension actions would be executed.

3. Navigate to dc-app-performance-toolkit/app folder and run from virtualenv(as described in dc-app-performance-toolkit/README.md):

   1
   2
   python util/jmeter/start_jmeter_ui.py --app jsm --type agents
   # or
   python util/jmeter/start_jmeter_ui.py --app jsm --type customers

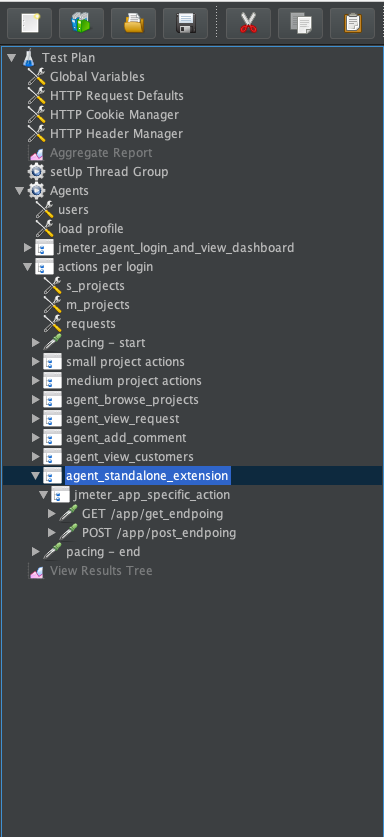

4. Open Agents/Customers thread group > actions per login and navigate to agent_standalone_extension/customer_standalone_extension

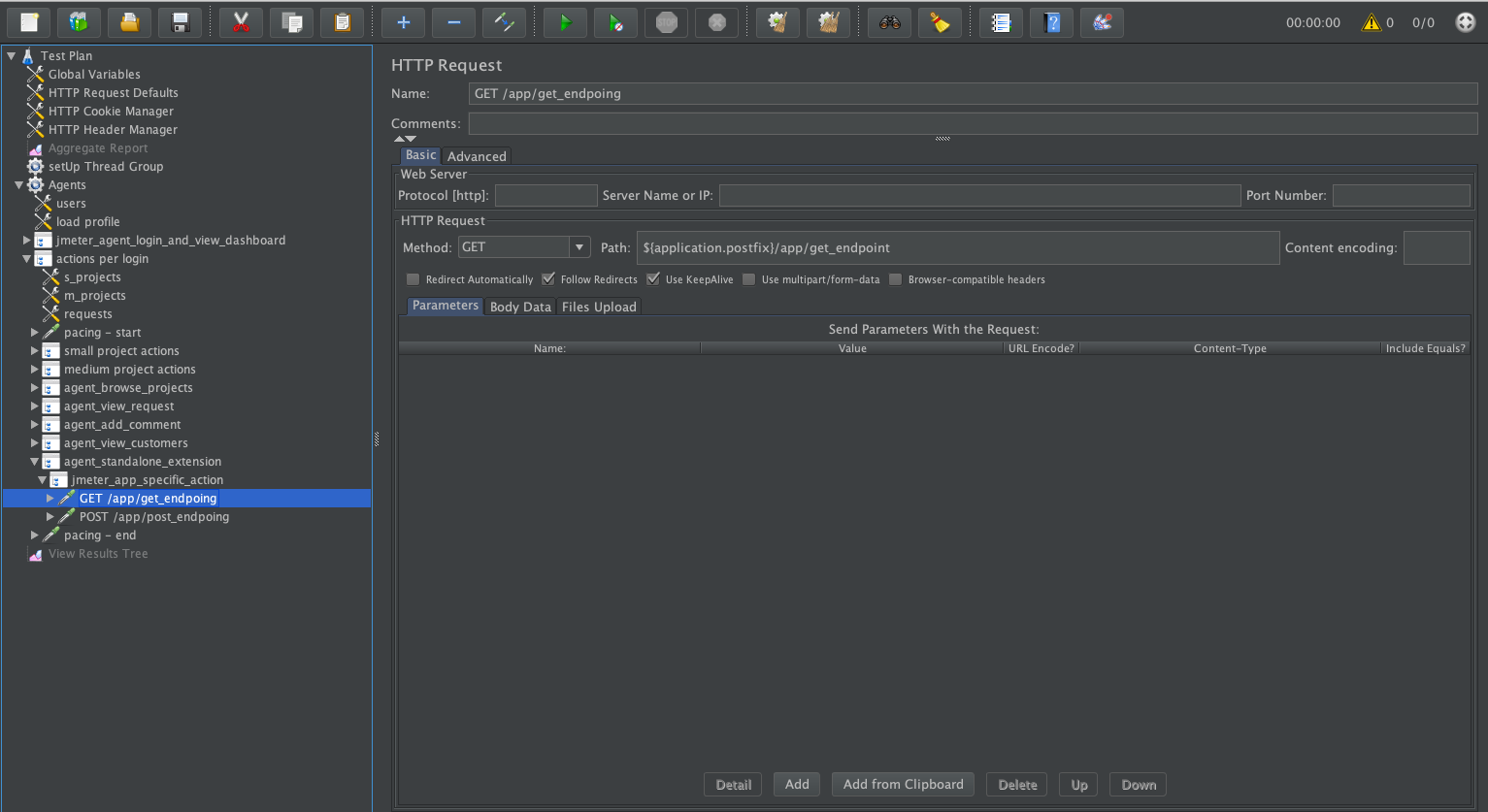

5. Add GET HTTP Request: right-click to agent_standalone_extension/customer_standalone_extension`` > Add>Sampler HTTP Request`, chose method GET and set endpoint in Path.

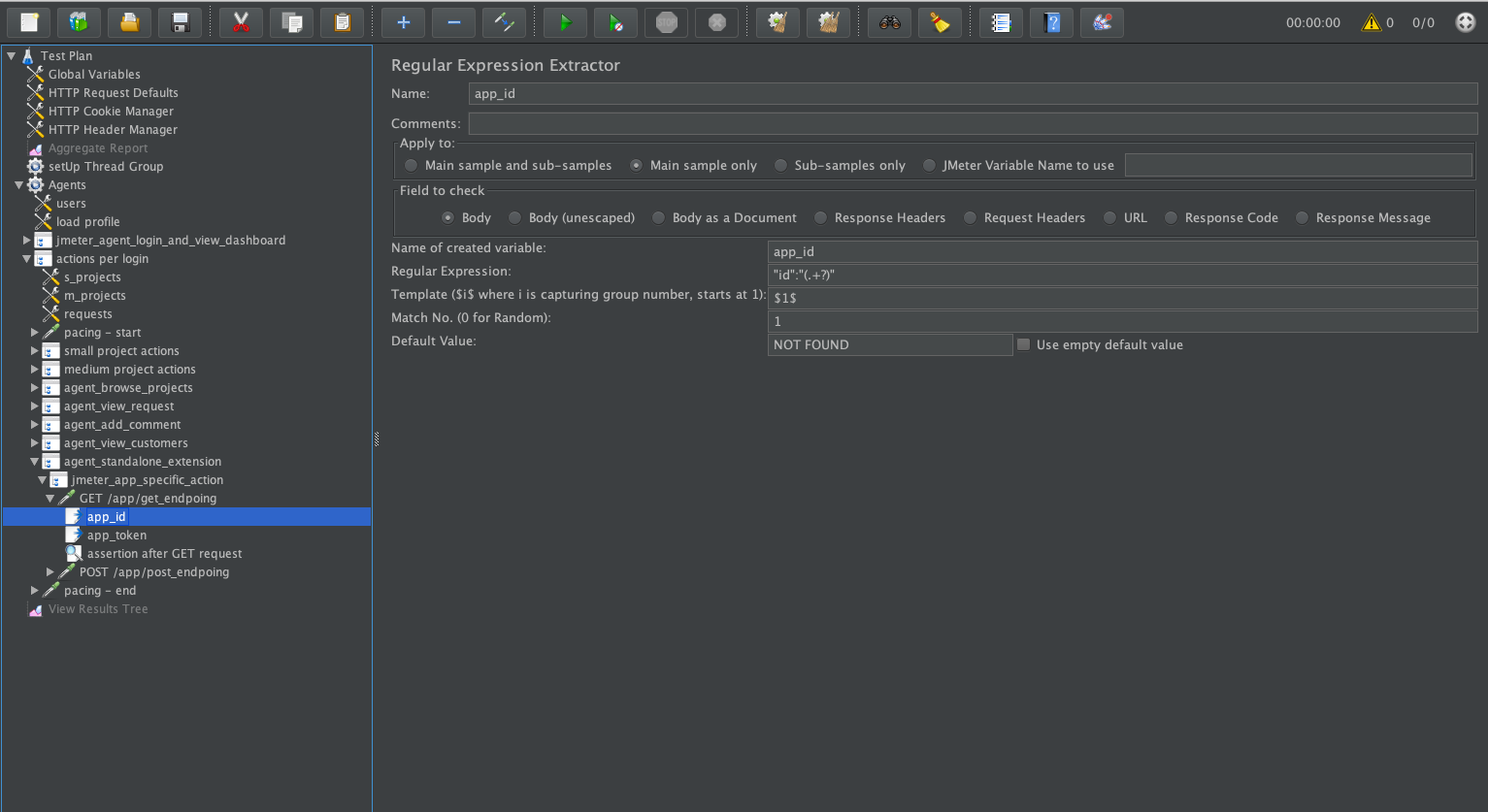

6. Add Regular Expression Extractor: right-click to to newly created HTTP Request > Add > Post processor > Regular Expression Extractor

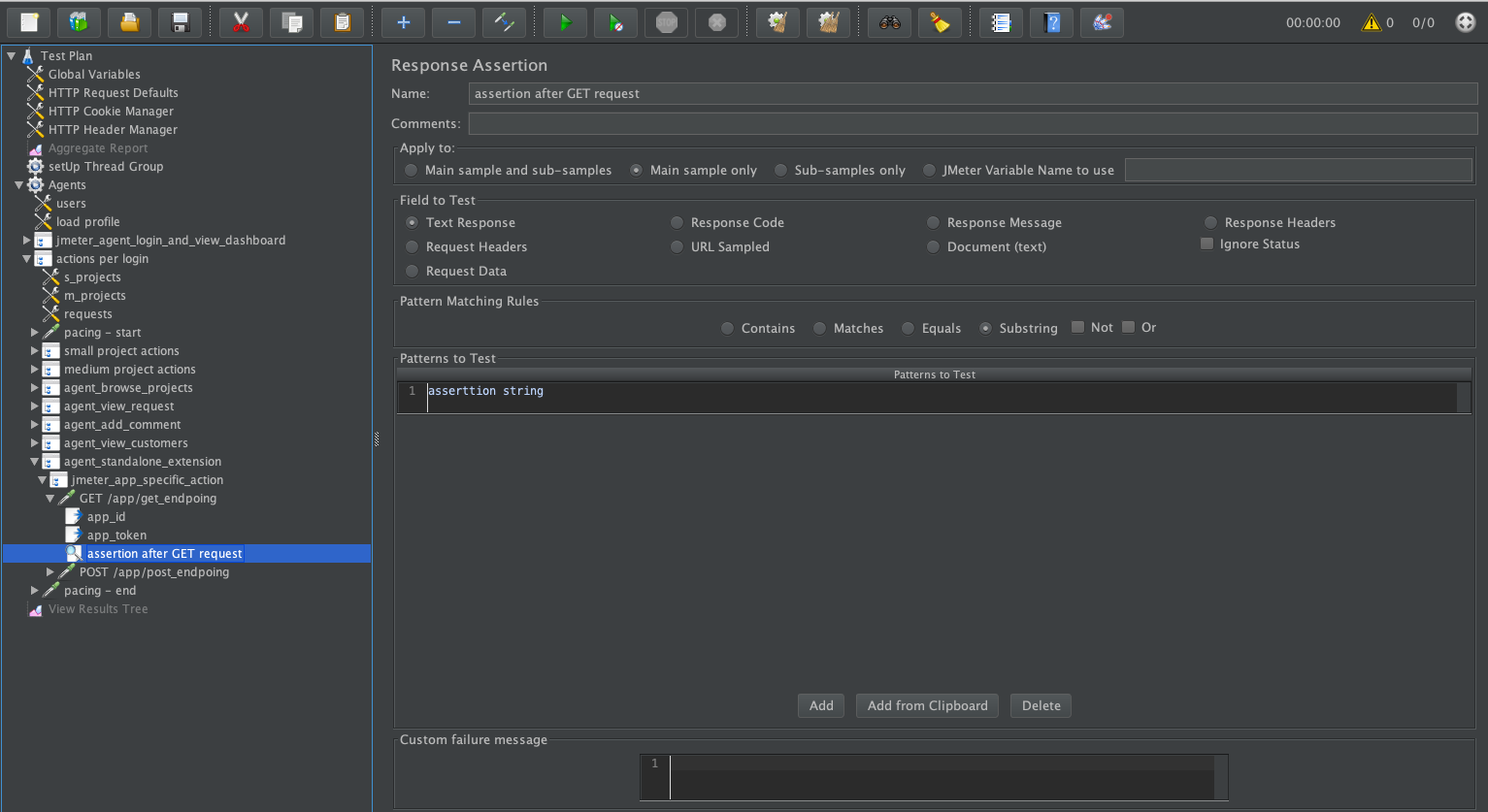

7. Add Response Assertion: right-click to newly created HTTP Request > Add > Assertions > Response Assertion and add assertion with Contains, Matches, Equals, etc types.

8. Add POST HTTP Request: right-click to agent_standalone_extension/customer_standalone_extension > Add > Sampler HTTP Request, chose method POST, set endpoint in Path and add Parameters or Body Data if needed.

9. Right-click on View Results Tree and enable this controller.

10. Click Start button and make sure that login_and_view_dashboard and agent_standalone_extension/customer_standalone_extension are successful.

11. Right-click on View Results Tree and disable this controller. It is important to disable View Results Tree controller before full-scale results generation.

12. Click Save button.

13. To make agent_standalone_extension/customer_standalone_extension executable during toolkit run edit dc-app-performance-toolkit/app/jsm.yml and set execution percentage of agent_standalone_extension/customer_standalone_extension accordingly to your use case frequency.

14. App-specific tests could be run (if needed) as a specific user. In the agent_standalone_extension/customer_standalone_extension uncomment login_as_specific_user controller. Navigate to the username:password config element and update values for app_specific_username and app_specific_password names with your specific user credentials. Also make sure that you located your app-specific tests between login_as_specific_user and login_as_default_user_if_specific_user_was_loggedin controllers.

15. Run toolkit to ensure that all JMeter actions including agent_standalone_extension and/or customer_standalone_extension are successful.

Using JMeter variables from the base script

Use or access the following variables in your agent_standalone_extension action if needed:

• ${request_id} - request id being viewed or modified (e.g. 693484)
• ${request_key} - request key being viewed or modified (e.g. ABC-123)
• ${request_project_id} - project id being viewed or modified (e.g. 3423)
• ${request_project_key} - project key being viewed or modified (e.g. ABC)
• ${request_service_desk_id} - service_desk_id being viewed or modified (e.g. 86)
• ${s_prj_key} - "small" project (<10k requests per project) key being viewed or modified (e.g. ABC)
• ${s_prj_id} - "small" project id being viewed or modified (e.g. 123)
• ${s_service_desk_id} - "small" project service_desk_id being viewed or modified (e.g. 12)
• ${s_prj_total_req} - "small" project total requests (e.g. 444)
• ${s_prj_all_open_queue_id} - "small" project "all open" queue id (e.g. 44)
• ${s_created_vs_resolved_id} - "small" project "created vs resolved" report id (e.g. 45)
• ${s_time_to_resolution_id} - "small" project "time to resolution" report id (e.g. 46)
• ${m_prj_key} - "medium" project (>10k and <100k requests per project) key being viewed or modified (e.g. ABC)
• ${m_prj_id} - "medium" project id being viewed or modified (e.g. 123)
• ${m_service_desk_id} - "medium" project service_desk_id being viewed or modified (e.g. 12)
• ${m_prj_total_req} - "medium" project total requests (e.g. 444)
• ${m_prj_all_open_queue_id} - "medium" project "all open" queue id (e.g. 44)
• ${m_created_vs_resolved_id} - "medium" project "created vs resolved" report id (e.g. 45)
• ${m_time_to_resolution_id} - "medium" project "time to resolution" report id (e.g. 46)
• ${username} - the logged in username (e.g. admin)

Use or access the following variables in your customer_standalone_extension action if needed:

• ${s_service_desk_id} - "small" project (<10k requests per project) service_desk_id being viewed or modified (e.g. 12)
• ${rt_project_id} - project id (e.g. 12)
• ${rt_service_desk_id} - service_desk_id (e.g. 12)
• ${rt_id} - request type id for project with project id ${rt_project_id} and service_desk_id ${rt_service_desk_id} (e.g. 123)
• ${username} - the logged in username (e.g. admin)

---

Enterprise-scale environment

After adding your custom app-specific actions, you should now be ready to run the required tests for the Marketplace Data Center Apps Approval process. To do this, you'll need an enterprise-scale environment.

5. Set up an enterprise-scale environment Jira Service Management Data Center on AWS

We recommend that you use the AWS Quick Start for Jira Data Center (How to deploy tab) to deploy a Jira Service Management Data Center enterprise-scale environment. This Quick Start will allow you to deploy Jira Service Management Data Center with a new Atlassian Standard Infrastructure (ASI) or into an existing one.

The ASI is a Virtual Private Cloud (VPC) consisting of subnets, NAT gateways, security groups, bastion hosts, and other infrastructure components required by all Atlassian applications, and then deploys Jira Service Management into this new VPC. Deploying Jira Service Management with a new ASI takes around 50 minutes. With an existing one, it'll take around 30 minutes.

Using the AWS Quick Start for Jira Service Management

If you are a new user, perform an end-to-end deployment. This involves deploying Jira Service Management into a new ASI:

Navigate to AWS Quick Start for Jira Data Center > How to deploy tab > Deploy into a new ASI link.

If you have already deployed the ASI separately by using the ASI Quick StartASI Quick Start or by deploying another Atlassian product (Jira, Bitbucket, or Confluence Data Center development environment) with ASI, deploy Jira Service Management into your existing ASI:

Navigate to AWS Quick Start for Jira Data Center > How to deploy tab > Deploy into your existing ASI link.

To reduce costs, we recommend you to keep your deployment up and running only during the performance runs.

AWS cost estimation

AWS Pricing Calculator provides an estimate of usage charges for AWS services based on certain information you provide. Monthly charges will be based on your actual usage of AWS services and may vary from the estimates the Calculator has provided.

*The prices below are approximate and may vary depending on such factors like region, instance type, deployment type of DB, and other.

Stop cluster nodes

To reduce AWS infrastructure costs you could stop cluster nodes when the cluster is standing idle.
Cluster node might be stopped by using Suspending and Resuming Scaling Processes.

To stop one node within the cluster, follow the instructions below:

1. In the AWS console, go to Services > EC2 > Auto Scaling Groups and open the necessary group to which belongs the node you want to stop.
2. Click Edit (in case you have New EC2 experience UI mode enabled, press Edit on Advanced configuration) and add HealthCheck to the Suspended Processes. Amazon EC2 Auto Scaling stops marking instances unhealthy as a result of EC2 and Elastic Load Balancing health checks.
3. Go to EC2 Instances, select instance, click Instance state > Stop instance.

To return node into a working state follow the instructions:

1. Go to EC2 Instances, select instance, click Instance state > Start instance, wait a few minutes for node to become available.
2. Go to EC2 Auto Scaling Groups and open the necessary group to which belongs the node you want to start.
3. Press Edit (in case you have New EC2 experience UI mode enabled, press Edit on Advanced configuration) and remove HealthCheck from Suspended Processes of Auto Scaling Group.

Stop database

To reduce AWS infrastructure costs database could be stopped when the cluster is standing idle. Keep in mind that database would be automatically started in 7 days.

To stop database:

1. In the AWS console, go to Services > RDS > Databases.
2. Select cluster database.
3. Click on Actions > Stop.

To start database:

1. In the AWS console, go to Services > RDS > Databases.
2. Select cluster database.
3. Click on Actions > Start.

Quick Start parameters

All important parameters are listed and described in this section. For all other remaining parameters, we recommend using the Quick Start defaults.

Jira setup

Cluster nodes

Database

Networking (for new ASI)

Networking (for existing ASI)

Running the setup wizard

After successfully deploying Jira Service Management Data Center in AWS, you'll need to configure it:

1. In the AWS console, go to Services > CloudFormation > Stack > Stack details > Select your stack.
2. On the Outputs tab, copy the value of the LoadBalancerURL key.
3. Open LoadBalancerURL in your browser. This will take you to the Jira Service Management setup wizard.
4. On the Set up application properties page, populate the following fields:
   • Application Title: any name for your Jira Service Management Data Center deployment
   • Mode: Private
   • Base URL: your stack's Elastic LoadBalancer URL Click Next.
5. On the next page, populate the Your License Key field by either:
   • Using your existing license, or
   • Generating a Jira Service Management trial license, or
   • Contacting Atlassian to be provided two time-bomb licenses for testing. Ask for it in your ECOHELP ticket. Click Next.
6. On the Set up administrator account page, populate the following fields:
   • Full name: any full name of the admin user
   • Email Address: email address of the admin user
   • Username: admin (recommended)
   • Password: admin (recommended)
   • Confirm Password: admin (recommended) Click Next.
7. On the Set up email notifications page, configure your email notifications, and then click Finish.
8. On the first page of the welcome setup select English (United States) language. Other languages are not supported by the toolkit.
9. After going through the welcome setup, click Create new project to create a new project.

---

6. Preloading your Jira Service Management deployment with an enterprise-scale dataset

Data dimensions and values for an enterprise-scale dataset are listed and described in the following table.

Pre-loading the dataset is a three-step process:

1. Importing the main dataset. To help you out, we provide an enterprise-scale dataset you can import either via the populate_db.sh script or restore from xml backup file.
2. Restoring attachments. We also provide attachments, which you can pre-load via an upload_attachments.sh script.
3. Re-indexing Jira Data Center. For more information, go to Re-indexing Jira.

The following subsections explain each step in greater detail.

Importing the main dataset

You can load this dataset directly into the database (via a populate_db.sh script), or import it via XML.

Option 1 (recommended): Loading the dataset via populate_db.sh script (~40 min)

To populate the database with SQL:

1. In the AWS console, go to Services > EC2 > Instances.

2. On the Description tab, do the following:

   • Copy the Public IP of the Bastion instance.
   • Copy the Private IP of the Jira Service Management node instance.

3. Using SSH, connect to the Jira Service Management node via the Bastion instance:

   For Linux or MacOS run following commands in terminal (for Windows use Git Bash terminal):

   1
   2
   ssh-add path_to_your_private_key_pem
   export BASTION_IP=bastion_instance_public_ip
   export NODE_IP=node_private_ip
   export SSH_OPTS1='-o ServerAliveInterval=60'
   export SSH_OPTS2='-o ServerAliveCountMax=30'
   ssh ${SSH_OPTS1} ${SSH_OPTS2} -o "proxycommand ssh -W %h:%p ${SSH_OPTS1} ${SSH_OPTS2} ec2-user@${BASTION_IP}" ec2-user@${NODE_IP}


   For more information, go to Connecting your nodes over SSH.

4. Download the populate_db.sh script and make it executable:

   1
   2
   wget https://raw.githubusercontent.com/atlassian/dc-app-performance-toolkit/master/app/util/jira/populate_db.sh && chmod +x populate_db.sh


5. Review the following Variables section of the script:

   1
   2
   DB_CONFIG="/var/atlassian/application-data/jira/dbconfig.xml"
   JIRA_DB_NAME="jira"
   JIRA_DB_USER="postgres"
   JIRA_DB_PASS="Password1!"
   # JSM section
   JIRA_CURRENT_DIR="/opt/atlassian/jira-servicedesk/current"
   JIRA_SETENV_FILE="${JIRA_CURRENT_DIR}/bin/setenv.sh"
   JIRA_VERSION_FILE="/media/atl/jira/shared/jira-servicedesk.version"


6. Run the script:

   1
   2
   ./populate_db.sh --jsm 2>&1 | tee -a populate_db.log


Option 2: Loading the dataset through XML import (~4 hours)

We recommend that you only use this method if you are having problems with the populate_db.sh script.

1. In the AWS console, go to Services > EC2 > Instances.

2. On the Description tab, do the following:

   • Copy the Public IP of the Bastion instance.
   • Copy the Private IP of the Jira Service Management node instance.

3. Using SSH, connect to the Jira Service Management node via the Bastion instance:

   For Linux or MacOS run following commands in terminal (for Windows use Git Bash terminal):

   1
   2
   ssh-add path_to_your_private_key_pem
   export BASTION_IP=bastion_instance_public_ip
   export NODE_IP=node_private_ip
   export SSH_OPTS1='-o ServerAliveInterval=60'
   export SSH_OPTS2='-o ServerAliveCountMax=30'
   ssh ${SSH_OPTS1} ${SSH_OPTS2} -o "proxycommand ssh -W %h:%p ${SSH_OPTS1} ${SSH_OPTS2} ec2-user@${BASTION_IP}" ec2-user@${NODE_IP}


   For more information, go to Connecting your nodes over SSH.

4. Download the xml_backup.zip file corresponding to your Jira Service Management version.

   1
   2
   JSM_VERSION=$(sudo su jira -c "cat /media/atl/jira/shared/jira-servicedesk.version")
   sudo su jira -c "wget https://centaurus-datasets.s3.amazonaws.com/jsm/${JSM_VERSION}/large/xml_backup.zip -O /media/atl/jira/shared/import/xml_backup.zip"


5. Log in as a user with the Jira System Administrators global permission.

6. Go to > System > Restore System. from the menu.

7. Populate the File name field with xml_backup.zip.

8. Click Restore and wait until the import is completed.

Restoring attachments (~2 hours)

After Importing the main dataset, you'll now have to pre-load an enterprise-scale set of attachments.

1. Using SSH, connect to the Jira Service Management node via the Bastion instance:

   For Linux or MacOS run following commands in terminal (for Windows use Git Bash terminal):

   1
   2
   ssh-add path_to_your_private_key_pem
   export BASTION_IP=bastion_instance_public_ip
   export NODE_IP=node_private_ip
   export SSH_OPTS1='-o ServerAliveInterval=60'
   export SSH_OPTS2='-o ServerAliveCountMax=30'
   ssh ${SSH_OPTS1} ${SSH_OPTS2} -o "proxycommand ssh -W %h:%p ${SSH_OPTS1} ${SSH_OPTS2} ec2-user@${BASTION_IP}" ec2-user@${NODE_IP}


   For more information, go to Connecting your nodes over SSH.

2. Download the upload_attachments.sh script and make it executable:

   1
   2
   wget https://raw.githubusercontent.com/atlassian/dc-app-performance-toolkit/master/app/util/jira/upload_attachments.sh && chmod +x upload_attachments.sh


3. Review the following Variables section of the script:

   1
   2
   # JSM version file location
   JIRA_VERSION_FILE="/media/atl/jira/shared/jira-servicedesk.version"


4. Run the script:

   1
   2
   ./upload_attachments.sh --jsm 2>&1 | tee -a upload_attachments.log


Re-indexing Jira Service Management Data Center (~30 min)

For more information, go to Re-indexing Jira.

1. Log in as a user with the Jira System Administrators global permission.
2. Go to > System > Indexing.
3. Select the Full re-index option.
4. Click Re-Index and wait until re-indexing is completed.
5. Take a screenshot of the acknowledgment screen displaying the re-index time and Lucene index timing.
6. Attach the screenshot to your ECOHELP ticket.

Jira Service Management will be unavailable for some time during the re-indexing process. When finished, the Acknowledge button will be available on the re-indexing page.

---

Index Recovery (~15 min, only for JSM versions 5.0.x and below. For JSM 5.1.0+ skip this step.)

1. Log in as a user with the Jira System Administrators global permission.
2. Go to > System > Indexing.
3. In the Index Recovery click Edit Settings.
4. Set the recovery index schedule to 5min ahead of the current server time.
5. Wait ~10min until the index snapshot is created.

Jira Service Management will be unavailable for some time during the index recovery process.

6. Using SSH, connect to the Jira Service Management node via the Bastion instance:

   For Linux or MacOS run following commands in terminal (for Windows use Git Bash terminal):

   1
   2
   ssh-add path_to_your_private_key_pem
   export BASTION_IP=bastion_instance_public_ip
   export NODE_IP=node_private_ip
   export SSH_OPTS1='-o ServerAliveInterval=60'
   export SSH_OPTS2='-o ServerAliveCountMax=30'
   ssh ${SSH_OPTS1} ${SSH_OPTS2} -o "proxycommand ssh -W %h:%p ${SSH_OPTS1} ${SSH_OPTS2} ec2-user@${BASTION_IP}" ec2-user@${NODE_IP}


7. Once you're in the node, run command corresponding to your Jira Service Management version:

   JSM 5

   1
   2
    sudo su -c "du -sh  /media/atl/jira/shared/caches/indexesV2/snapshots/IndexSnapshot*" | tail -1


   JSM 4

   1
   2
    sudo su -c "du -sh  /media/atl/jira/shared/export/indexsnapshots/IndexSnapshot*" | tail -1


8. The snapshot size and name will be shown in the console output.

---

---

7. Setting up an execution environment

For generating performance results suitable for Marketplace approval process use dedicated execution environment. This is a separate AWS EC2 instance to run the toolkit from. Running the toolkit from a dedicated instance but not from a local machine eliminates network fluctuations and guarantees stable CPU and memory performance.

1. Go to GitHub and create a fork of dc-app-performance-toolkit.
2. Clone the fork locally, then edit the jsm.yml configuration file. Set enterprise-scale Jira Service Management Data Center parameters
3. In case your application relays or extends the functionality of Insight. Make sure to set True next to the insight variable.

1
2
    application_hostname: test_jsm_instance.atlassian.com   # Jira Service Management DC hostname without protocol and port e.g. test-jsm.atlassian.com or localhost
    application_protocol: http                # http or https
    application_port: 80                      # 80, 443, 8080, 2990, etc
    secure: True                              # Set False to allow insecure connections, e.g. when using self-signed SSL certificate
    application_postfix:                      # e.g. /jira in case of url like http://localhost:2990/jira
    admin_login: admin
    admin_password: admin
    load_executor: jmeter                     # jmeter and locust are supported. jmeter by default.
    concurrency_agents: 50                    # number of concurrent virtual agents for jmeter or locust scenario
    concurrency_customers: 150                # number of concurrent virtual customers for jmeter or locust scenario
    test_duration: 45m
    ramp-up: 3m                               # time to spin all concurrent users
    total_actions_per_hour_agents: 5000       # number of total JMeter/Locust actions per hour
    total_actions_per_hour_customers: 15000   # number of total JMeter/Locust actions per hour
    insight: False                            # Set True to enable Insight specific tests


1. Push your changes to the forked repository.

2. Launch AWS EC2 instance.

   • OS: select from Quick Start Ubuntu Server 20.04 LTS.
   • Instance type: c5.2xlarge
   • Storage size: 30 GiB

3. Connect to the instance using SSH or the AWS Systems Manager Sessions Manager.

   1
   2
   ssh -i path_to_pem_file ubuntu@INSTANCE_PUBLIC_IP


4. Install Docker. Setup manage Docker as a non-root user.

5. Connect to the AWS EC2 instance and clone forked repository.

You'll need to run the toolkit for each test scenario in the next section.

---

8. Running the test scenarios from execution environment against enterprise-scale Jira Service Management Data Center

Using the Data Center App Performance Toolkit for Performance and scale testing your Data Center app involves two test scenarios:

• Performance regression
• Scalability testing

Each scenario will involve multiple test runs. The following subsections explain both in greater detail.

Scenario 1: Performance regression

This scenario helps to identify basic performance issues without a need to spin up a multi-node Jira Service Management DC. Make sure the app does not have any performance impact when it is not exercised.

Run 1 (~50 min)

To receive performance baseline results without an app installed:

1. Use SSH to connect to execution environment.

2. Run toolkit with docker from the execution environment instance:

   1
   2
   cd dc-app-performance-toolkit
   docker pull atlassian/dcapt
   docker run --shm-size=4g -v "$PWD:/dc-app-performance-toolkit" atlassian/dcapt jsm.yml


3. View the following main results of the run in the dc-app-performance-toolkit/app/results/jsm/YY-MM-DD-hh-mm-ss folder:

   • results_summary.log: detailed run summary
   • results.csv: aggregated .csv file with all actions and timings
   • bzt.log: logs of the Taurus tool execution
   • jmeter.*: logs of the JMeter tool execution
   • pytest.*: logs of Pytest-Selenium execution

Run 2 (~50 min + Lucene Index timing test)

If you are submitting a Jira Service Management app, you are required to conduct a Lucene Index timing test. This involves conducting a foreground re-index on a single-node Data Center deployment (with your app installed) and a dataset that has 1M issues.

Benchmark your re-index time with your app installed:

1. Install the app you want to test.
2. Setup app license.
3. Go to > System > Indexing.
4. Select the Full re-index option.
5. Click Re-Index and wait until re-indexing is completed.
6. Take a screenshot of the acknowledgment screen displaying the re-index time and Lucene index timing.
7. Attach the screenshot to your ECOHELP ticket.

Performance results generation with the app installed:

1. Run toolkit with docker from the execution environment instance:

   1
   2
   cd dc-app-performance-toolkit
   docker pull atlassian/dcapt
   docker run --shm-size=4g -v "$PWD:/dc-app-performance-toolkit" atlassian/dcapt jsm.yml


Generating a performance regression report

To generate a performance regression report:

1. Use SSH to connect to execution environment.

2. Allow current user (for execution environment default user is ubuntu) to access Docker generated reports:

   1
   2
   sudo chown -R ubuntu:ubuntu /home/ubuntu/dc-app-performance-toolkit/app/results


3. Install and activate the virtualenv as described in dc-app-performance-toolkit/README.md

4. Navigate to the dc-app-performance-toolkit/app/reports_generation folder.

5. Edit the performance_profile.yml file:

   • Under runName: "without app", in the fullPath key, insert the full path to results directory of Run 1.
   • Under runName: "with app", in the fullPath key, insert the full path to results directory of Run 2.

6. Run the following command:

   1
   2
   python csv_chart_generator.py performance_profile.yml


7. In the dc-app-performance-toolkit/app/results/reports/YY-MM-DD-hh-mm-ss folder, view the .csv file (with consolidated scenario results), the .png chart file and performance scenario summary report.

Analyzing report

Use scp command to copy report artifacts from execution env to local drive:

1. From local machine terminal (Git bash terminal for Windows) run command:

   1
   2
   export EXEC_ENV_PUBLIC_IP=execution_environment_ec2_instance_public_ip
   scp -r -i path_to_exec_env_pem ubuntu@$EXEC_ENV_PUBLIC_IP:/home/ubuntu/dc-app-performance-toolkit/app/results/reports ./reports


2. Once completed, in the ./reports folder you will be able to review the action timings with and without your app to see its impact on the performance of the instance. If you see an impact (>20%) on any action timing, we recommend taking a look into the app implementation to understand the root cause of this delta.

Scenario 2: Scalability testing

The purpose of scalability testing is to reflect the impact on the customer experience when operating across multiple nodes. For this, you have to run scale testing on your app.

For many apps and extensions to Atlassian products, there should not be a significant performance difference between operating on a single node or across many nodes in Jira Service Management DC deployment. To demonstrate performance impacts of operating your app at scale, we recommend testing your Jira Service Management DC app in a cluster.

Run 3 (~50 min)

To receive scalability benchmark results for one-node Jira Service Management DC with app-specific actions:

1. Apply app-specific code changes to a new branch of forked repo.

2. Use SSH to connect to execution environment.

3. Pull cloned fork repo branch with app-specific actions.

4. Run toolkit with docker from the execution environment instance:

   1
   2
   cd dc-app-performance-toolkit
   docker pull atlassian/dcapt
   docker run --shm-size=4g -v "$PWD:/dc-app-performance-toolkit" atlassian/dcapt jsm.yml


Run 4 (~50 min)

To receive scalability benchmark results for two-node Jira Service Management DC with app-specific actions:

1. In the AWS console, go to CloudFormation > Stack details > Select your stack.
2. On the Update tab, select Use current template, and then click Next.
3. Enter 2 in the Maximum number of cluster nodes and the Minimum number of cluster nodes fields.
4. Click Next > Next > Update stack and wait until stack is updated.

5. Log in as a user with the Jira System Administrators global permission.
6. Go to > System > Clustering and check there is expected number of nodes with node status ACTIVE and application status RUNNING. To make sure that Jira Service Management index successfully synchronized to the second node.

7. Run toolkit with docker from the execution environment instance:

   1
   2
   cd dc-app-performance-toolkit
   docker pull atlassian/dcapt
   docker run --shm-size=4g -v "$PWD:/dc-app-performance-toolkit" atlassian/dcapt jsm.yml


Run 5 (~50 min)

To receive scalability benchmark results for four-node Jira Service Management DC with app-specific actions:

1. Scale your Jira Service Management Data Center deployment to 3 nodes as described in Run 4.

2. Check Index is synchronized to the new node #3 the same way as in Run 4.

3. Scale your Jira Service Management Data Center deployment to 4 nodes as described in Run 4.

4. Check Index is synchronized to the new node #4 the same way as in Run 4.

5. Run toolkit with docker from the execution environment instance:

   1
   2
   cd dc-app-performance-toolkit
   docker pull atlassian/dcapt
   docker run --shm-size=4g -v "$PWD:/dc-app-performance-toolkit" atlassian/dcapt jsm.yml


Generating a report for scalability scenario

To generate a scalability report:

1. Use SSH to connect to execution environment.
2. Allow current user (for execution environment default user is ubuntu) to access Docker generated reports:

   1
   2
   sudo chown -R ubuntu:ubuntu /home/ubuntu/dc-app-performance-toolkit/app/results


3. Navigate to the dc-app-performance-toolkit/app/reports_generation folder.
4. Edit the scale_profile.yml file:
   • For runName: "1 Node", in the fullPath key, insert the full path to results directory of Run 3.
   • For runName: "2 Nodes", in the fullPath key, insert the full path to results directory of Run 4.
   • For runName: "4 Nodes", in the fullPath key, insert the full path to results directory of Run 5.
5. Run the following command from the activated virtualenv (as described in dc-app-performance-toolkit/README.md):

   1
   2
   python csv_chart_generator.py scale_profile.yml


6. In the dc-app-performance-toolkit/app/results/reports/YY-MM-DD-hh-mm-ss folder, view the .csv file (with consolidated scenario results), the .png chart file and summary report.

Analyzing report

Use scp command to copy report artifacts from execution env to local drive:

1. From local terminal (Git bash terminal for Windows) run command:

   1
   2
   export EXEC_ENV_PUBLIC_IP=execution_environment_ec2_instance_public_ip
   scp -r -i path_to_exec_env_pem ubuntu@$EXEC_ENV_PUBLIC_IP:/home/ubuntu/dc-app-performance-toolkit/app/results/reports ./reports


2. Once completed, in the ./reports folder, you will be able to review action timings on Jira Service Management Data Center with different numbers of nodes. If you see a significant variation in any action timings between configurations, we recommend taking a look into the app implementation to understand the root cause of this delta.

Attaching testing results to ECOHELP ticket

1. Make sure you have two reports folders: one with performance profile and second with scale profile results. Each folder should have profile.csv, profile.png, profile_summary.log and profile run result archives. Archives should contain all raw data created during the run: bzt.log, selenium/jmeter/locust logs, .csv and .yml files, etc.
2. Attach two reports folders to your ECOHELP ticket.

Support

In case of technical questions, issues or problems with DC Apps Performance Toolkit, contact us for support in the community Slack #data-center-app-performance-toolkit channel.
